9102S Handheld Dry-Well
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
Truly portable handheld dry-block temperature calibrators. They’re the smallest, lightest, and most portable dry-wells in the world.
Product Overview

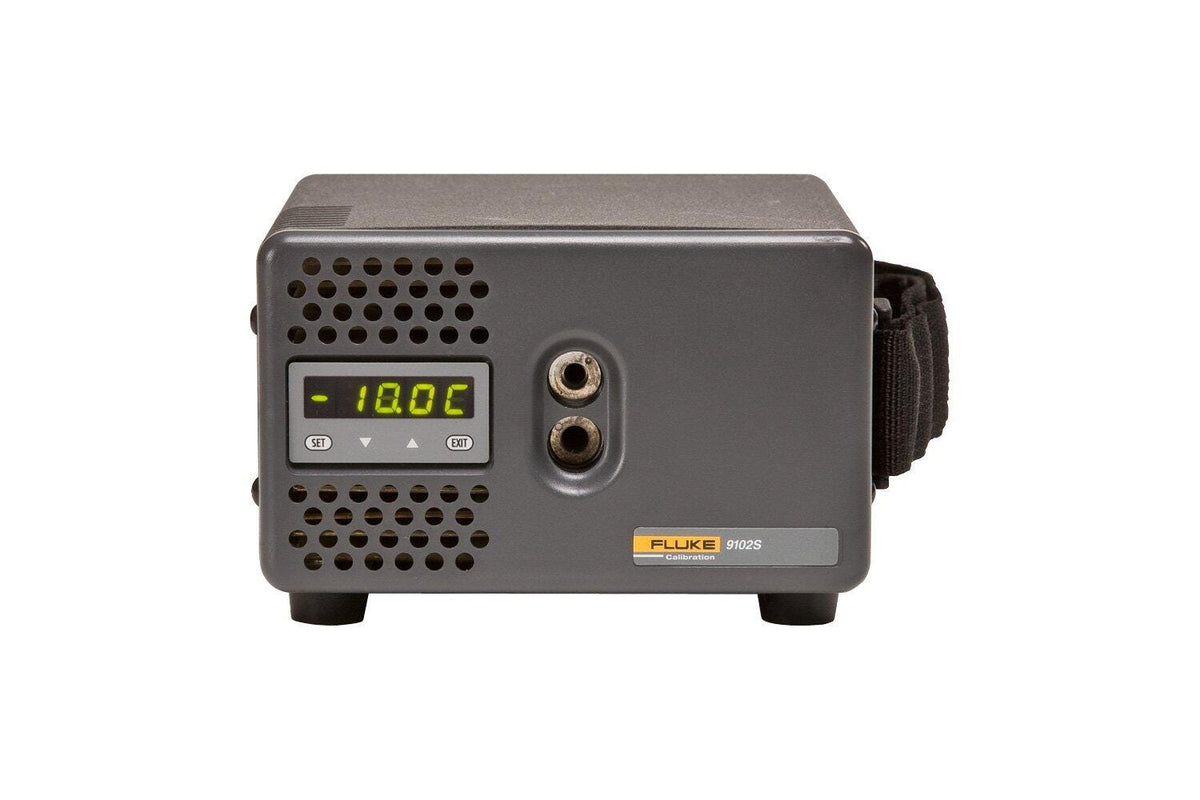

9102S Dry-Well
For work in the temperature range of –10°C to 122°C, 9102S dry-well is another first in the industry, featuring stability to ±0.05°C.
This dry-well is only four inches high and six inches wide, achieves temperatures as low as –10°C, includes a NIST-traceable calibration, and is stable to ±0.05°C. The Model 9102S is excellent for dial gauges, digital thermometers, bulb switches, and other sensors that need calibration below ambient.
The 9102S has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size.
Models
- 9102S
Specifications: Fluke Calibration 9102S Handheld Dry-Well
| Specifications | 9100S | 9102S |
| Range | 35°C to 375°C (95°F to 707°F) | –10°C to 122°C (14°F to 252°F) at 23°C ambient |
| Accuracy | ±0.25°C at 50°C; ±0.25°C at 100°C; ±0.5°C at 375°C | ±0.25°C |
| Stability | ±0.07°C at 50°C; ±0.1°C at 100°C; ±0.3°C at 375°C | ±0.05°C |
| Well-to-well uniformity | ±0.2°C with sensors of similar size at equal depths within wells | |
| Heating times | 35°C to 375°C: 9.5 minutes | Ambient to 100°C: 10 minutes |
| Stabilization | 5 minutes | 7 minutes |
| Cooling times | 375°C to 100°C: 14 minutes | Ambient to 0°C: 10 minutes |
| Well depth | 102 mm (4 in); 1.6 mm (1/16 in) hole is 89 mm (3.5 in) deep | 102 mm (4 in) |
| Removable inserts | N/A | Available in sizes from 1.6 mm (1/16 in) to 11.1 mm (7/16 in) [6.4 mm (1/4 in) and 4.8 mm (3/16 in) included] |
| Power | 115 V AC (±10%), 55–65 Hz, 1.5 A or 230 V AC (±10%), 0.8 A, 45–55 Hz, 175 W | 94-234 V AC (±10%), 50/60 Hz, 60 W; or 12 V DC |
| Size (H x W x D) | 57 x 125 x 150 mm (2.25 x 4.9 x 6.1 in) | 99 x 140 x 175 mm (3.9 x 5.5 x 6.9 in) |
| Weight | 1 kg (2 lb 3 oz) | 1.8 kg (4 lb) |
| Computer interface | RS-232 included | |
| NIST-traceable calibration | Data at 50°C, 100°C, 150°C, 200°C, 250°C, 300°C and 375°C | Data at –10°C, 0°C, 25 °C, 50°C, 75 °C,100°C and 122°C |
