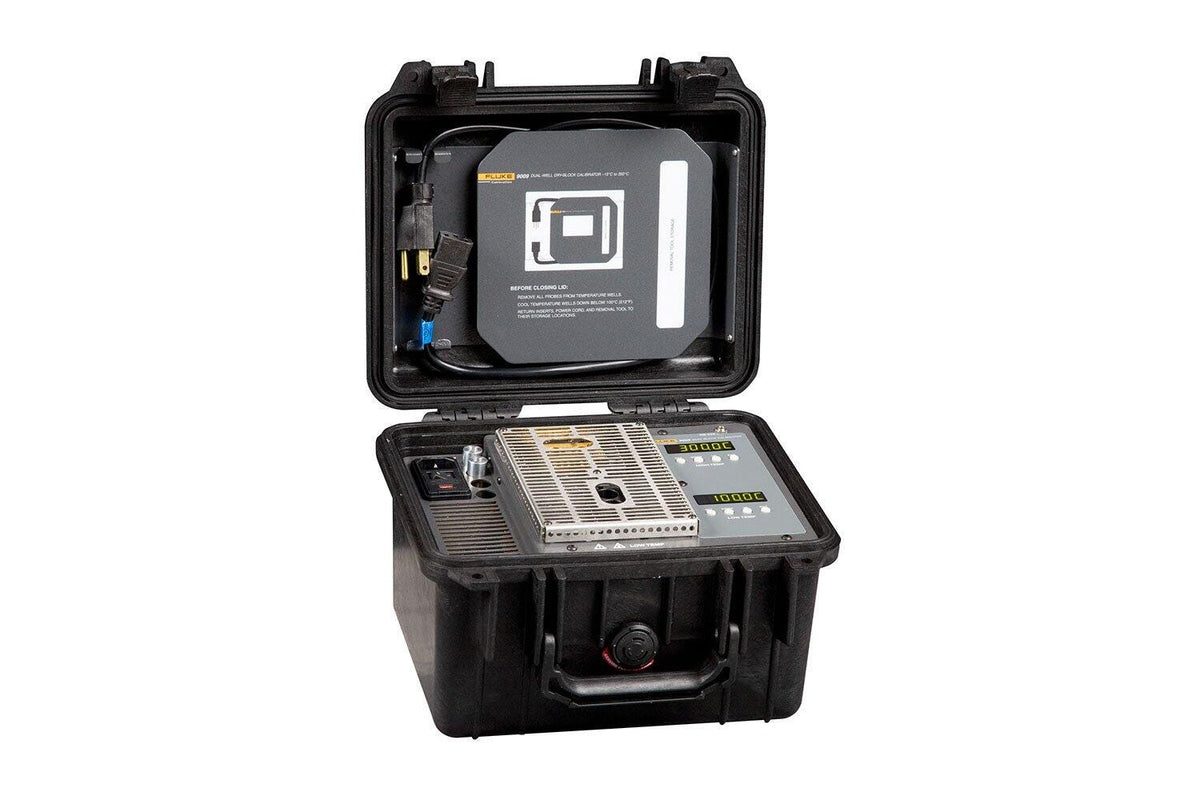

9009 Dual-Well Dry-Well
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The Fluke Calibration 9009 dry-well offers two independently controlled temperature blocks (-15°C to 350°C) in a portable design for in-field calibrations.
Product Overview
Two blocks. One portable calibrator. Full temperature coverage.
Dual Independent Temperature Blocks
The Fluke Calibration 9009 combines two independently controlled temperature blocks into one compact, rugged system:
- Hot block range: 50 °C to 350 °C
- Cold block range: –15 °C to 110 °C
- Each block is powered by a precision Hart Scientific temperature controller—not off-the-shelf components, but industry-leading technology from the world’s top temperature calibration experts.
Flexible Multi-Probe Calibration
Each block includes two wells with removable inserts, giving you unmatched flexibility:
- Calibrate up to four probes simultaneously
- Use two probes with an external reference thermometer (e.g., Hart 1521 LLK)
- Perform quick zero/span checks for transmitter calibration with both blocks in use
Portable and Field-Ready
The 9009 is built for portability and field durability:
- Housed in a rugged Pelican™ case—airtight, watertight, and impact-resistant
- Weighs only 10 lbs (4.5 kg), compact and easy to carry
- Internal storage holds the power cord and four extra inserts
- Inserts available for sensor sizes from 1/16” (1.6 mm) to 7/16” (11.1 mm)
This system is truly ready to go wherever your work takes you.
Reliable Accuracy and Stability
Performance you expect from a Fluke/Hart Scientific source:
| Block | Display Accuracy | Stability |
| Cold | ±0.2 °C | ±0.05 °C |
| Hot | ±0.6 °C | ±0.05 °C |
NIST-traceable calibration certificate included for both blocks.
PC Connectivity and Automation
- RS-232 interface included for temperature monitoring and control via PC
- Fully compatible with MET/TEMP II software for automated calibration of RTDs, thermocouples, and thermistors
The Complete Field Calibration Package
With the Fluke 9009 Dual-Well Dry-Well, you get:
- Two independent blocks
- Full temperature coverage from –15 °C to 350 °C
- True field portability in a compact, durable case
- Flexibility for multiple sensors and calibration modes
- Built-in automation and PC integration
Models
- 9009-B-156
- 9009-Y-156
Specifications: Fluke Calibration 9009 Dual-Well Dry-Well
| General Specifications | ||
| Hot block | Cold block | |
| Range | 50°C to 350°C (122°F to 662°F) | –15°C to 110°C (5°F to 230°F) (–8°C [18°F] with hot block at 350°C [662°F]) |
| Accuracy | ±0.6°C | ±0.2°C |
| Stability | ±0.05°C | |
| Well-to-well uniformity | ±0.1°C | |
| Display resolution | 0.1° | |
| Heating times | 30 minutes from 25°C to 350°C | 15 minutes from 25°C to 110°C |
| Cooling times | 40 minutes from 350°C to 100°C | 16 minutes from 25°C to –15°C |
| Stabilization times | 8 minutes | |
| Well depth | 4 in (102 mm) | |
| Removable inserts | Two 6.4 mm (1/4 in) and two 4.8 mm (3/16 in) inserts included; see ordering information for other available inserts | |
| Computer interface | RS-232 included | |
| Power | 115 V AC (±10 %), 3 A, or 230 V AC (±10 %), 2 A, specify, 50/60 Hz, 280 W |
|
| Size (H x W x D) | 178 x 267 x 248 mm (7 x 10.5 x 9.75 in) | |
| Weight | 4.5 kg (10 lb) | |
| NIST-traceable calibration | Data at 50°C, 100°C, 150°C, 200°C, 250°C, 300°C, and 350°C | Data at –8°C, 0°C, 25°C, 50°C, 75°C, 100°C, and 110°C |
