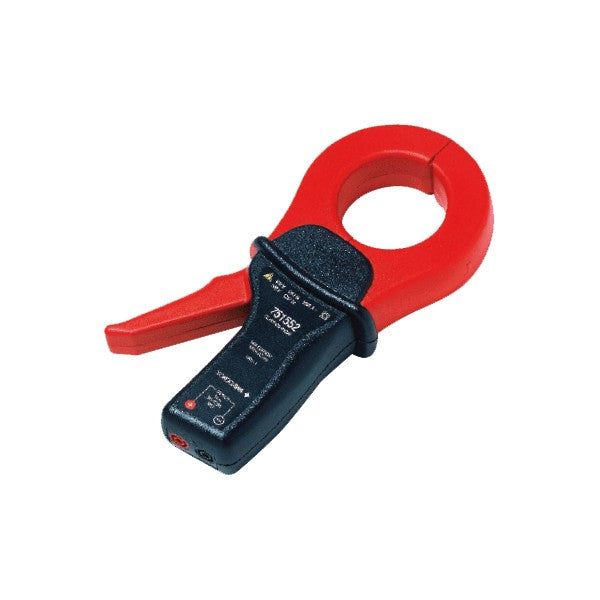

• 751552 AC Clamp-On Current Probe

751552 AC Clamp-On Current Probe

Key Features

  • AC clamp-on probe, 0.001 to 1200 A rms
  • 1000:1 current output
  • Measurement frequency range 30 Hz to 5 kHz
  • Best accuracy ±0.3% of reading from 100 A to 1200 A
  • Conductor diameter up to 52 mm, 600 V rms working voltage
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

AC clamp-on current probe for WT series power analyzers. It is a 1000:1 current-output probe for large-current measurement on a live conductor, rated from 0.001 A to 1200 A rms, with a measurement frequency range of 30 Hz to 5 kHz.

Models & Specifications

Specification 751552
Rated current AC 0.001 to 1200 A rms
Continuous maximum 1000 A at 1 kHz or below; 1000 to 1200 A for up to 40 minutes
Frequency range 30 Hz to 5 kHz
Transformation ratio 1000:1
Accuracy, 1 to 10 A ±1% of reading
Accuracy, 10 to 100 A ±0.5% of reading
Accuracy, 100 to 1200 A ±0.3% of reading
Conductor diameter 52 mm maximum
Working voltage 600 V rms maximum
Output connector Safety terminal
Dimensions Approx. 111 × 216 × 45 mm
Weight Approx. 620 g
Operating temperature −10 to 50 °C

Specifications from the official Yokogawa user’s manual IM 751552-01E. Use the Download Datasheet button for the full document.
