• 751522 / 751524 Current Sensor Unit

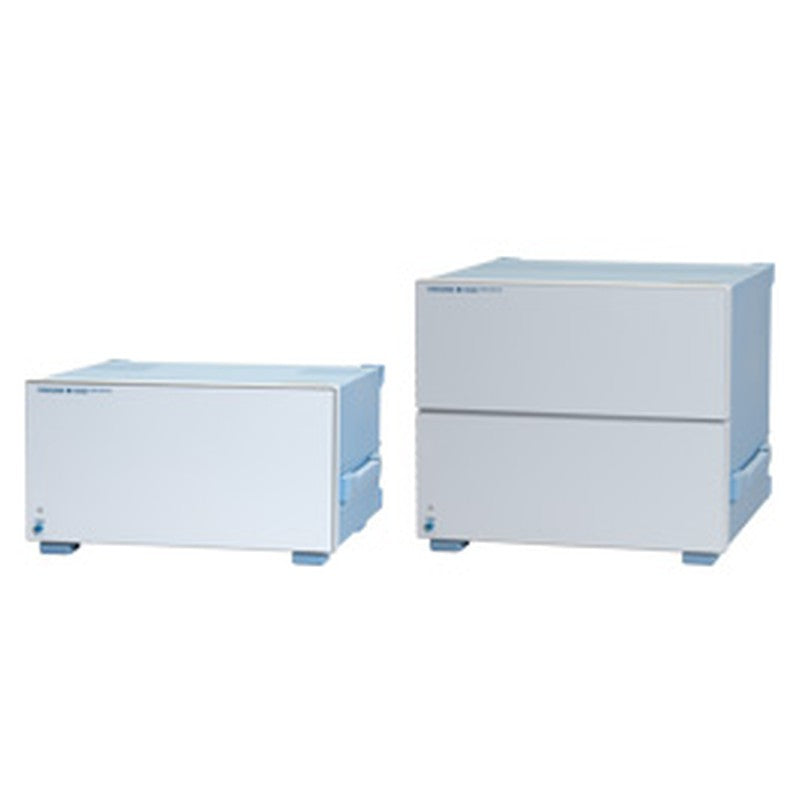

751522 / 751524 Current Sensor Unit

Key Features

  • 0 to 1000 A DC, 1000 A peak continuous
  • Bandwidth DC to 100 kHz (−3 dB)
  • Basic accuracy ±(0.05% of reading + 40 µA)
  • 1500:1 current output, 666.6 mA at 1000 A
  • Single-phase (751522) or three-phase (751524)
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Current sensor units for large-current power measurement above the direct rating of a WT series power analyzer or PX8000. 751522 is the single-phase unit and 751524 is the three-phase unit. Both are 1500:1 current transformers, DC to 100 kHz, with basic accuracy of ±(0.05% of reading + 40 µA).

Models & Specifications

Common Specifications

Specification Value
Supply 100 to 240 V AC
Input terminals M12 bolt
Continuous common-mode voltage 1000 V rms
Instantaneous maximum 4500 A peak, 0.1 s
Operating use Indoor

Model Comparison

Specification 751522 751524
Configuration Single phase Three phase
Dimensions 426 × 221 × 401 mm 426 × 355 × 401 mm
Weight Approx. 15 kg Approx. 28 kg
Power consumption 30 VA or less See user’s manual

Specifications from the official Yokogawa user’s manual IM 751524-01E. Use the Download Datasheet button for the full document.
