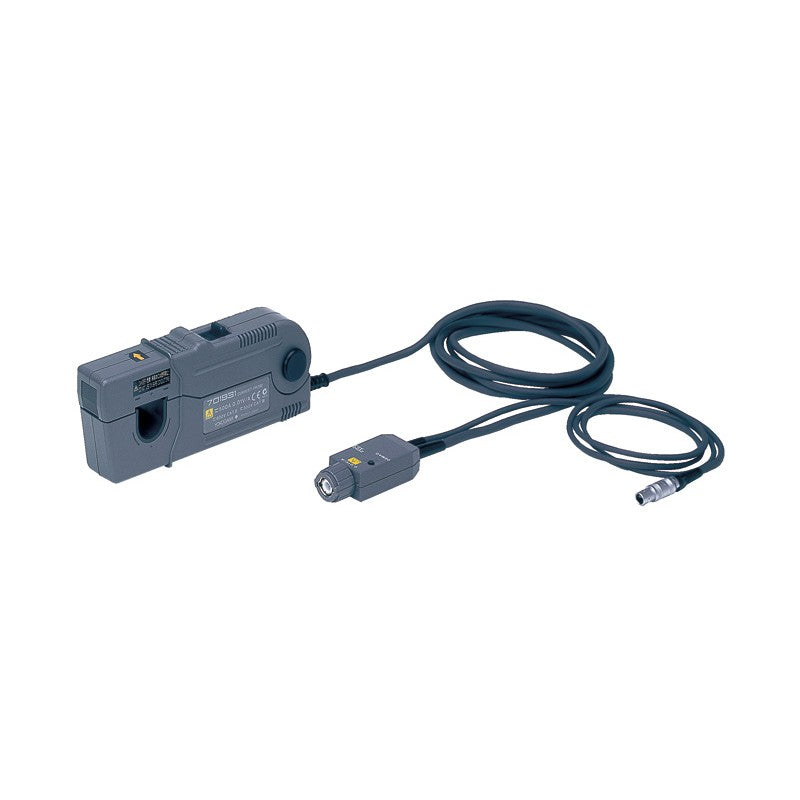

701931 Current Probe 500 A, 2 MHz

Key Features

  • 500 A rms continuous, 700 A peak non-continuous
  • Bandwidth DC to 2 MHz (−3 dB)
  • Amplitude accuracy ±1% of reading ±5 mV to 500 A
  • 0.01 V/A output, 20 mm conductor diameter
  • ±12 V probe power
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Hall-effect current probe for waveform measurement, 500 A continuous, DC to 2 MHz. Voltage output is 0.01 V/A on a BNC connector. It is used with DLM oscilloscopes, ScopeCorders and other waveform instruments, and with a WT series external sensor input.

Models & Specifications

Specification 701931
Bandwidth (−3 dB) DC to 2 MHz
Rise time 175 ns or less
Continuous input 500 A
Peak current 700 A peak
Output 0.01 V/A
Amplitude accuracy ±1% of reading ±5 mV to 500 A; ±2% of reading to 700 A peak
Noise 25 mA rms or less
Conductor diameter 20 mm
Supply ±12 V ±0.5 V
Operating temperature 0 to 40 °C
Sensor dimensions 176 × 69 × 27 mm
Weight Approx. 520 g

Specifications from the official Yokogawa user’s manual IM 701931-01E. Use the Download Datasheet button for the full document.
