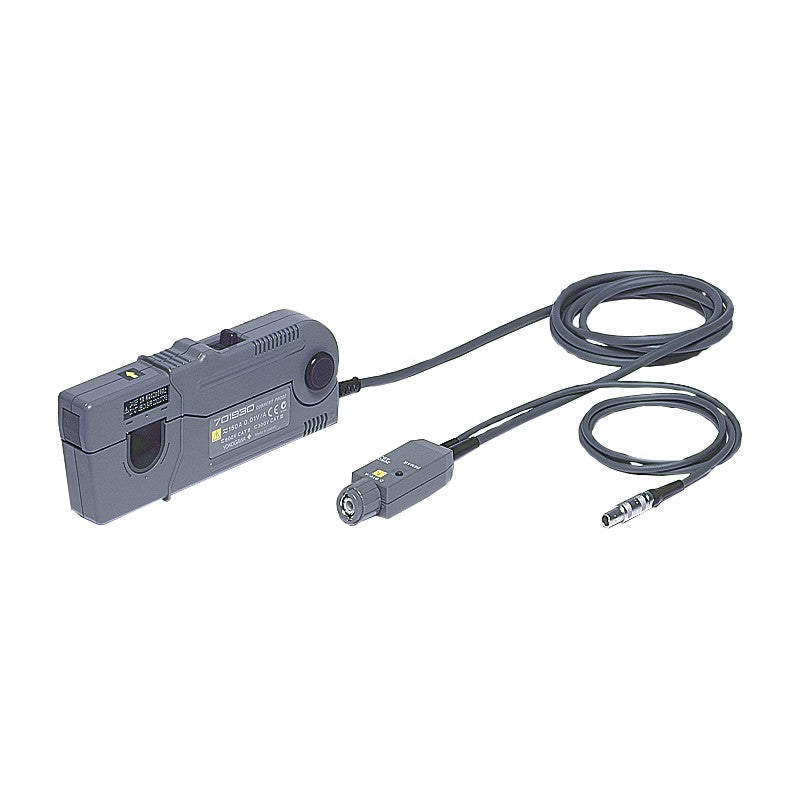

• 701930 Current Probe 150 A, 10 MHz

701930 Current Probe 150 A, 10 MHz

Key Features

  • 150 A rms continuous, 300 A peak non-continuous
  • Bandwidth DC to 10 MHz (−3 dB)
  • Amplitude accuracy ±1% of reading ±1 mV to 150 A
  • 0.01 V/A output, 20 mm conductor diameter
  • ±12 V probe power
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Hall-effect current probe for waveform measurement, 150 A continuous, DC to 10 MHz. Voltage output is 0.01 V/A on a BNC connector. It is used with DLM oscilloscopes, ScopeCorders and other waveform instruments, and with a WT series external sensor input.

Models & Specifications

Specification 701930
Bandwidth (−3 dB) DC to 10 MHz
Rise time 35 ns or less
Continuous input 150 A
Peak current 300 A peak (500 A peak for pulses ≤ 30 µs)
Output 0.01 V/A
Amplitude accuracy ±1% of reading ±1 mV to 150 A; ±2% of reading to 300 A peak
Noise 25 mA rms or less
Conductor diameter 20 mm
Supply ±12 V ±1 V
Operating temperature 0 to 40 °C
Sensor dimensions 176 × 69 × 27 mm
Weight Approx. 500 g

Specifications from the official Yokogawa user’s manual IM 701930-01E. Use the Download Datasheet button for the full document.
