Power range: 5kW/10kW/15kW/18kW
Current range: 0-375A
Voltage range: 0-1800V
AC input voltage range:
200/220Vac, 380/400Vac , 440/480Vac
High power density (18kW in 3U)
Easy master/slave parallel & series
Current sharing operation
Voltage ramp function
(time range: 5 ms-99 hours)
Precision V&I measurements
High-speed programming
Voltage & current slew rate control
Digital encoder knob, keypad and function keys
Auto sequencing programming:
10 programs/100 sequences
OVP, current limit, thermal protection
Standard analog programming interface
Supports CAN/Ethernet/USB/RS232/RS485/GPIB/APG interfaces
Remote output ON/OFF (I/P)
Remote sense line drop compensation
LabView and Labwindows
Solar array simulation function
Shade I-V curve simulation
I-V curve programming:
10 programs/100 I-V files
CE Certified

Leave your email

We will provide the quotation ASAP.

PROGRAMMABLE DC POWER SUPPLY

MODEL 62000H SERIES

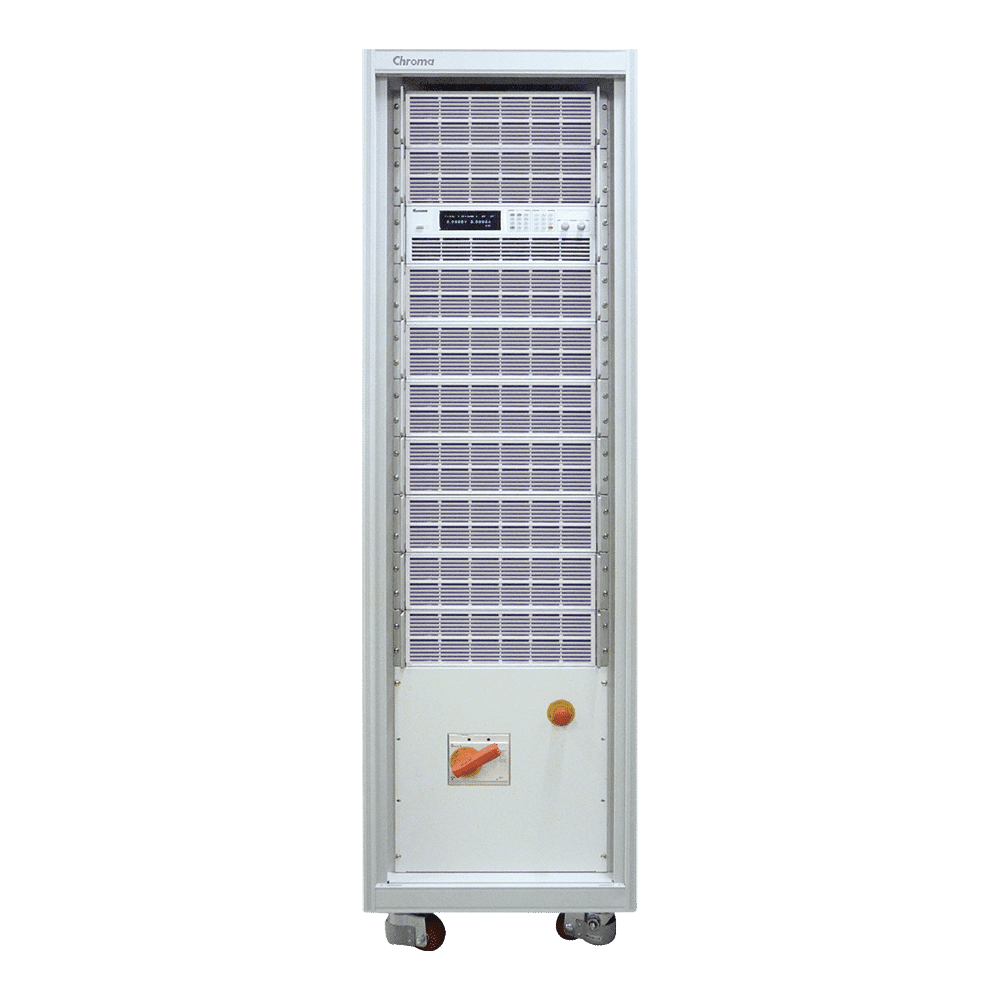

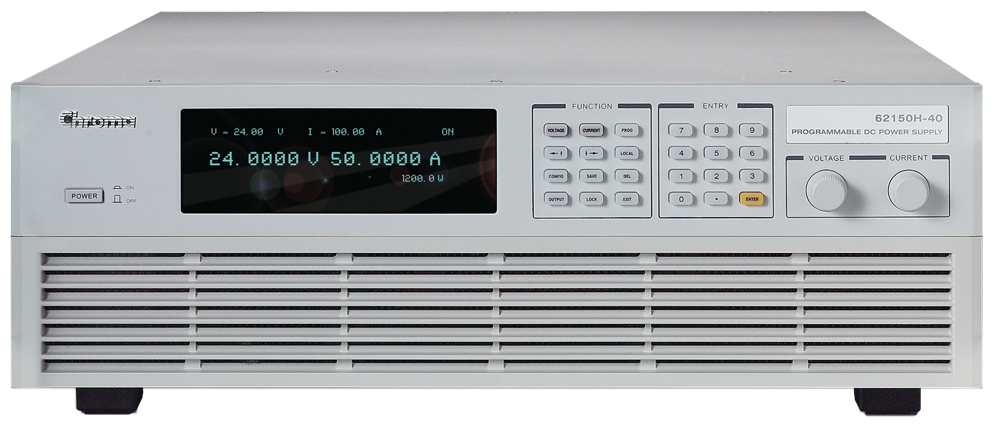

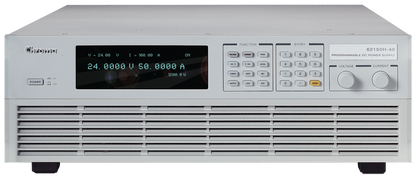

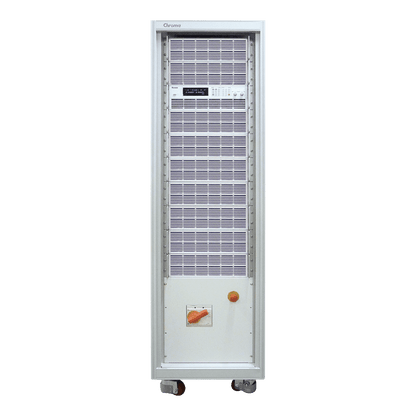

Name: 62000H 40V-1000V 5kW-15kW
Brand: Chroma
Availability: OutOfStock

Chroma's new 62000H Series of programmable DC power supplies offer many unique advantages for telecom, automated test system & integration, industrial, battery charge & simulation for hybrid cars and solar panel simulation. These advantages include high power density of 18kW in 3U, precision readback of output current and voltage, output trigger signals, as well as the ability to create complex DC transient waveforms to test device behavior for spikes, drops, and other voltage deviations.
