Voltage rating: 40V/60V/80V/100V/230V/300V/450V/600V/1200V, 54 models
Current rating: 3.4A-150A, 54 models
Single-output models:
1.7kW, 3.4kW, 5kW
Multi-output models:
3x1.7kW channels in 1U
Master/slave parallel up to 20kW
Fixed or Auto-ranging output models
Auto sequence programming
CV/CC priority modes
High-precision measurement
High-speed transient response <1ms
Low output ripple & noise
Intuitive and user-friendly touch screen
Standard USB, LAN interfaces
Optional APG, CAN FD, GPIB, and master/slave parallel control interfaces
AC input: 1-phase/3-phase 200-240Vac or 3-phase 380-400Vac

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

PROGRAMMABLE DC POWER SUPPLY MODEL

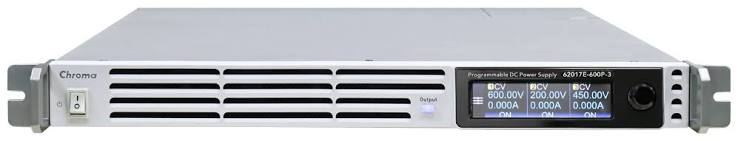

Name: 62000E 40V-1200V 1.7kW-5kW 1/3ch
Brand: Chroma
Availability: InStock

62000E SERIES

The Chroma 62000E Series of programmable DC power supplies offers single-channel models with power ratings of 1.7kW, 3.4kW, and 5kW, and three-channel models rated at 1.7kW, all housed in a 1U chassis featuring industry-leading power density. The 54 different models include both fixed-range and auto-range options, with current ratings from 3.4A to 150A and voltage from 40V to 1200V. The 62000E series supports constant voltage (CV) and constant current (CC) modes, allowing users to switch output priority based on test requirements. These power supplies feature high output precision for both control and measurements, fast dynamic response, and low output noise, ideal for diverse testing applications in laboratories, production lines, and integration into automated test equipment (ATE).
