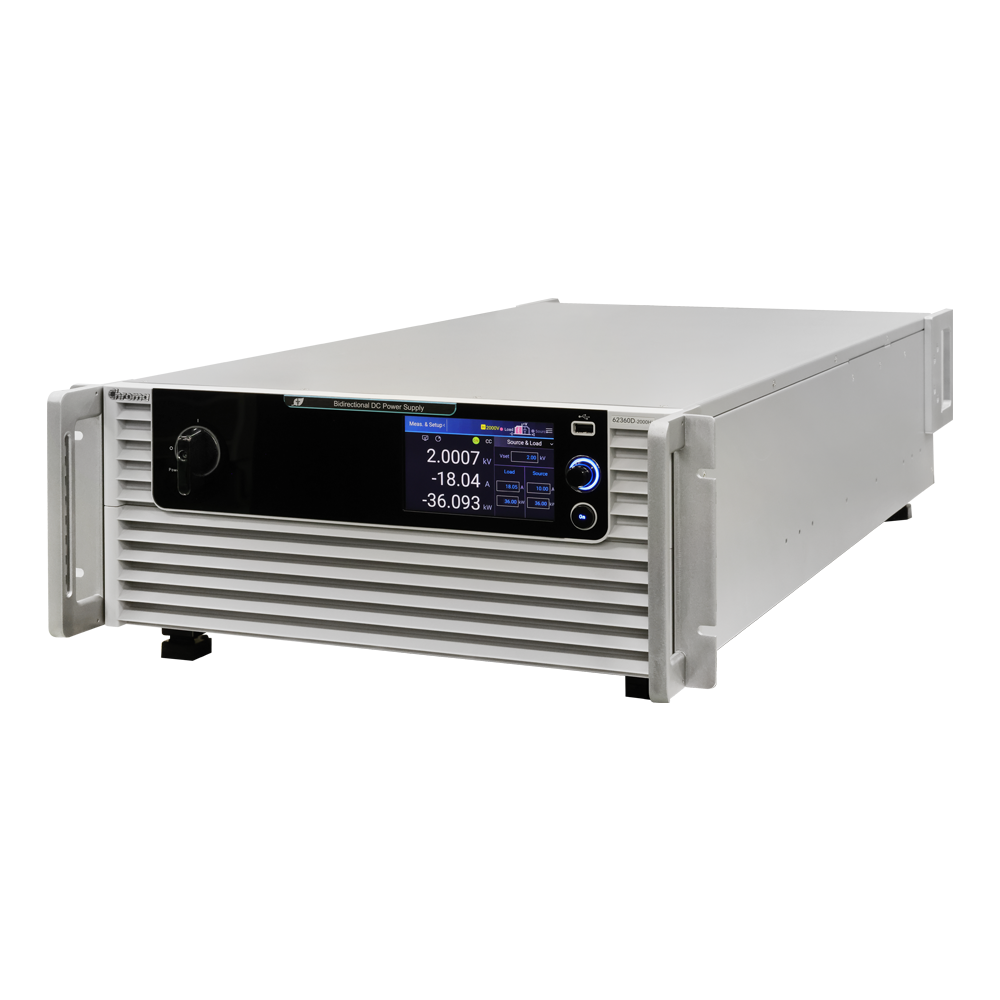

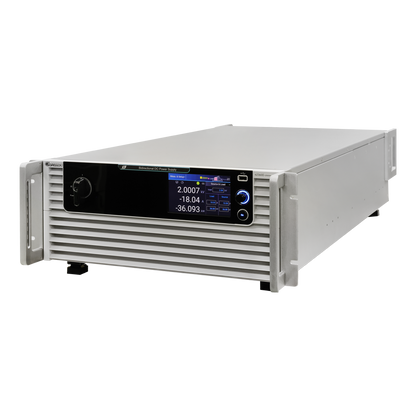

62000D 150V-2000V 6kW-45kW

Voltage rating: 0~100V / 600V / 1200V / 1300V / 1800V / 2000V
Current rating: 0~540A
Power rating:
6kW / 12kW / 18kW @ 3U
30kW / 36kW / 45kW @ 4U
Dual output ranges with one-click switching (6200D-HL models)
Two-quadrant operation: source and load functions
High power density: 45kW in 4U
Easy master/slave parallel & series operation*¹ up to 1.8MW
Wide range of voltage & current combinations in constant power
Auto sequencing programming
Voltage & current slew rate control
High speed transient response < 1.5ms
Low output noise and ripple
Intuitive and user-friendly touch control screen
Standard USB / LAN / APG interfaces, optional CAN / GPIB interfaces (CAN FD supported on 1300V / 2000V models)
3-phase 4-wire universal AC power: 200~480 Vac
Solar array simulation function (optional)

$0.00

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

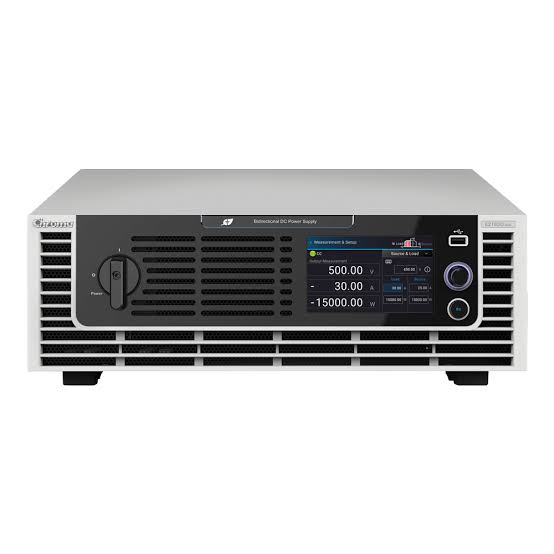

PROGRAMMABLE BIDIRECTIONAL
DC POWER SUPPLY MODEL 62000D SERIES

Chroma 62000D Series programmable bidirectional DC power supplies have both power source and load characteristics. Capable of feeding power from the device under test (DUT) back to the utility grid, these two-quadrant power supplies are ideal for testing energy storage systems in renewable energy applications such as solar PV/storage hybrid inverters, battery power conditioning systems (PCS), and simulating charging and discharging of energy storage batteries. 62000D also has applications in testing power components in electric vehicles (EVs) as well as bidirectional on-board chargers (BOBC), DC-DC converters, and DC-AC motor drivers, enabling bi-directional power conversion simulation tests without the need for actual batteries.
