61800 30kVA-105kVA

  • Output power: 61830: 30kVA; 61845: 45kVA; 61860: 60kVA; 61800-100: 105kVA
  • Output voltage: 0~300V; 0~400V (option); 0~500V (option); 0~800V
  • Output frequency: DC, 30Hz-100Hz
  • User selectable single phase or three phase output
  • Accept reverse rated apparent power with regenerative conversion to grid
  • Specifically designed for PV inverter, Smart Grid and EV related test applications
  • Programmable slew rate settings for voltage and frequency
  • Programmable voltage and current limits
  • Turn on, turn off phase angle control
  • LIST, PULSE, STEP mode functions for testing Power Line Disturbance (PLD) simulation
  • Harmonics, inter-harmonics waveform synthesizer
  • Comprehensive measurement capability, including current harmonics
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

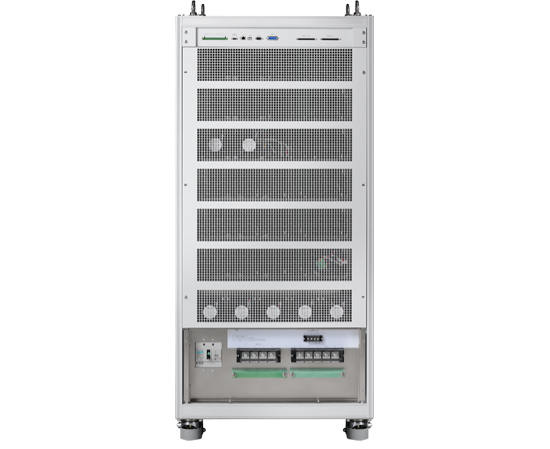

Regenerative Grid Simulator Model 61830/61845/61860/61800-100/61800-100(800VLN)

Chroma's new 61800 family of Grid Simulators has been designed to fulfill these test requirements by providing a full 4 quadrant, fully regenerative, grid simulator with advanced features for compliance, safety and product verification testing. The 61800 Regenerative Grid Simulator is a full 4 quadrant, full regenerative, AC power supply designed for common electrical product testing such as home appliances, and industrial electronics needing a programmable input source. In additional, the 61800 is designed to simulate grid characteristics for testing PV inverter and on-line UPS.
