5606 Full Immersion PRT
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The Fluke Calibration 5606 immersion PRT probe offers excellent accuracy and stability for temperature measurement from -200°C to 160°C.
Product Overview
Ultra-Compact, Reliable, and Designed for Complete Immersion
Total Flexibility for Extreme Environments

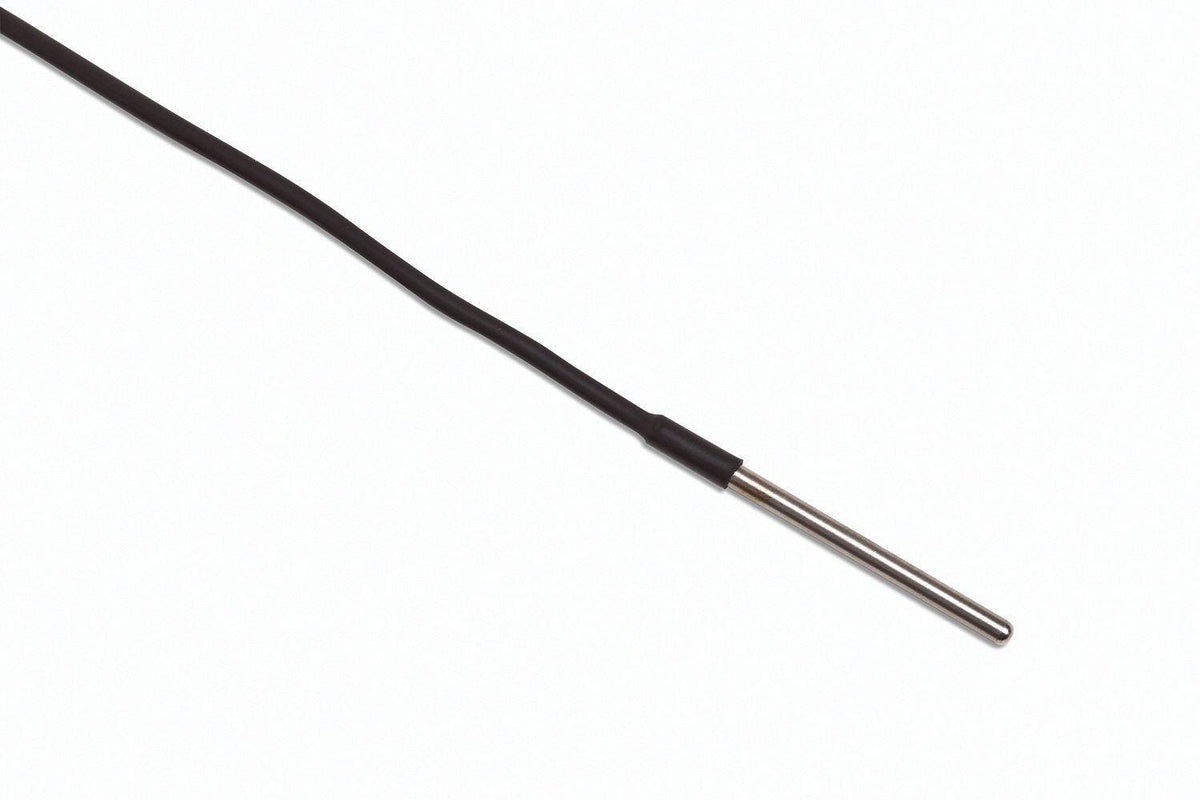

The Fluke 5606 Full Immersion Platinum Resistance Thermometer (PRT) offers an unmatched solution for applications where full immersion of the probe—including transition junction and lead wires—is required. With a compact length of just two inches (50 mm) and a sheath diameter of only 1/8 inch (3.1 mm), the 5606 delivers accuracy and durability in the tightest spaces.
Key Features and Benefits
- Truly Full Immersion – No need to calculate minimum immersion depth. Simply immerse the entire probe, transition junction, and lead wires over the entire operating range—from –200 °C to 160 °C—in either non-corrosive liquids or dry mediums.
- High Accuracy in a Compact Size – Achieve calibration accuracies as good as ±0.05 °C, thanks to the specially constructed 100 Ω precision sensing element (alpha = 0.00385) that also blocks moisture ingress.
- Superior Moisture Protection – Single-conductor enameled copper lead wires prevent moisture from wicking into the sensing element, offering better protection than traditional stranded leads.
- Flexible and Easy Installation – Lead wires measure no greater than 0.2 mm in diameter, making it simple to route through tight spaces—such as a freezer door—without energy loss.
- Proven Durability – The 5606 has demonstrated excellent performance in heat transfer fluids like silicone oil, mineral oil, ethanol, and even liquid nitrogen, with no loss of integrity in the transition junction or lead wire insulation.
Engineered for Demanding Applications
The 5606 Full Immersion PRT is specifically designed to thrive in extreme environments. Both the transition junction and lead wires are built to endure temperatures covering the full probe range, ensuring complete reliability in challenging conditions.
“Immersion” means exposure to extreme temperatures—not just being submerged in a liquid—making the 5606 ideal for a wide variety of rigorous uses.
Models
- 5606-50-X
“X” in a model number denotes the probe termination (e.g. A = INFO-CON for 914X, B = bare wire, D = 5-pin DIN, G = gold pins, J = banana plugs, L = mini spade lugs, M = mini banana plugs, P = INFO-CON for 1523/1524, S = spade lugs). Please specify when enquiring.
Specifications: 5606 Full Immersion PRT
| General Specifications | ||
| Temperature range | -200°C to 160°C | |
| Nominal resistance at 0.01°C | 100 Ω ±0.1 Ω | |
| Temperature coefficient | 0.00385 Ω/Ω/°C | |
| Accuracy1 | ±0.04°C at 0.01°C ±0.06°C at 160°C |
|
| Short-term repeatability2 | ±0.03°C at 0.01°C ±0.04°C at 160°C |
|
| Drift3 | ±0.03°C at 0.01°C ±0.04°C at 160°C |
|
| Hysteresis | ±0.015°C | |
| Sheath length | 50 mm ±5 mm (2 in ±0.2 in) |
|
| Sheath diameter | 3.1 mm ±0.1 mm (1/8 in ±0.004 in) | |
| Sheath material | 316 SST | |
| Transition junction temperature range4 | -200°C to 160°C | |
| Transition junction dimensions | No transition | |
| Sensor length | 30 mm ±3mm (1.2 in ±0.1 in) | |
| Sensor location | 3 mm ±1 mm from tip (1.2 in ±0.04 in) | |
| Minimum insulation resistance | 20 MΩ at 23°C | |
| Minimum immersion length | Full immersion | |
| Maximum immersion depth in liquid medium | Full immersion | |
| Maximum immersion depth in dry Medium | Full immersion | |
| Response time5 | 12 seconds typical | |
| Self heating (in 0°C bath) | ±0.003°C | |
| Lead-wire cable type | Enameled copper wire | |
| Lead-wire length | 2.4 meters (8 ft) | |
| Lead-wire temperature range | 160°C | |
| Calibration | Calibration not included. NVLAP accredited calibration available. See ordering information. | |
| 1. Includes calibration and 100 hr drift (k = 2). 2. Three thermal cycles from min to max temp, includes hysteresis, 95% confidence (k = 2). 3. After 100 hours at max temp, 95% confidence (k = 2). 4. Temperatures outside this range will cause irreparable damage. 5. Per ASTM E 644. | ||
| Calibration Uncertainty | ||
| Temperature | -197°C | 1924 Calibration Uncertainty6 0.03°C Tolerance w/out Calibration7 0.4°C |
| -38°C | 1924 Calibration Uncertainty6 0.03°C Tolerance w/out Calibration7 0.2°C |
|
| 0°C | 1924 Calibration Uncertainty6 0.03°C Tolerance w/out Calibration7 0.1°C |
|
| 100°C | 1924 Calibration Uncertainty6 0.045°C Tolerance w/out Calibration7 0.3°C |
|
| 157°C | 1924 Calibration Uncertainty6 0.05°C Tolerance w/out Calibration7 0.4°C |
|
| 6. Lab code 200348-0 7. Each PRT includes a certificate with a measured R0 value. An uncalibrated 5606 meets ASTM E 1137 Grade A Classification of Tolerances. Use the coefficients below to achieve the tolerances listed in the “No Calibration” column or calculate the Grade A tolerance using the following formula: Grade A = ±[0.13 + 0.0017|t|]°C where: |t| = value of temperature (°C) without regard to sign. See ASTM E 1137. R0: Enter the R0 value provided A: 3.9083 x 10–3 B: –5.775 x 10–7 C: –4.183 x 10–12 | ||
