4024CA 9kHz-9GHz

Product Features

  • Wide frequency range: from 9kHz to 9GHz
  • Full-band preamplifiers configuration
  • Low displayed average noise level: -163dBm@1Hz RBW (typical)
  • Phase noise: -115dBc/Hz@100kHz offset@1GHz carrier
  • Input TOI point: +13dBm (Typical)
  • Amplitude accuracy: ±1.3dB
  • Real-time spectrum analysis; max RTBW 120MHz; 5.8µs POI
  • Resolution bandwidth: 1Hz～10MHz (1/3 step), 20MHz
  • 512MHz IQ waveform capture
  • 5G NR / LTE FDD/TDD / GSM/EDGE demodulation options
  • Field strength, channel power, OBW, ACPR, emission mask, indoor/outdoor map + GPS/Beidou
  • 8.4-inch LCD + capacitive touch; battery or AC powered
Frequency Range
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

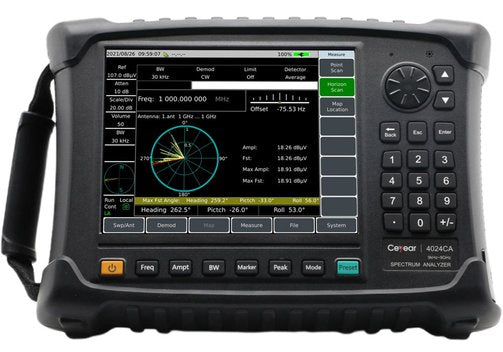

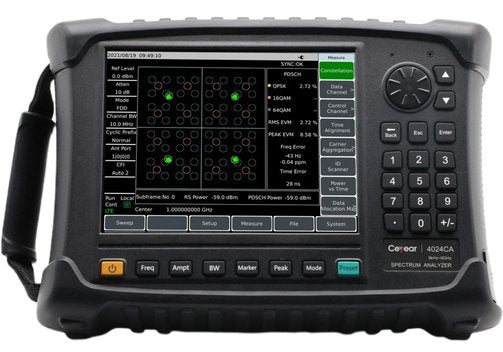

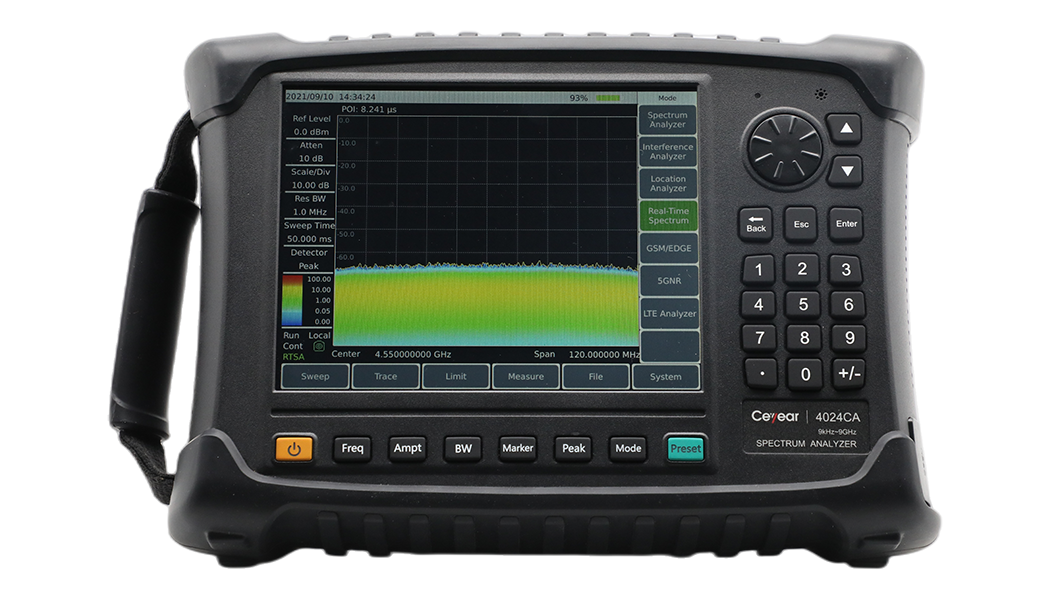

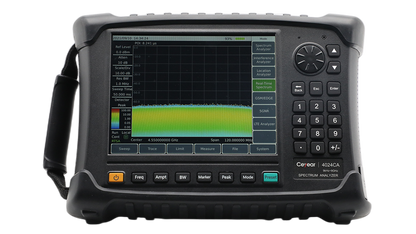

4024CA Handheld Real-Time Spectrum Analyzer

The 4024CA spectrum analyzer is a broadband handheld real-time spectrum analyzer designed for field testing. The maximum real-time analysis bandwidth reaches 120MHz.
