3.5mm to SMP Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The 3.5mm to SMP coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between 3.5mm and SMP interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 26.5 GHz.
Key Features
- Between-series 3.5mm to SMP coaxial adapter, 50 Ω
- Frequency range DC to 26.5 GHz
- VSWR ≤ 1.2
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|
| 3.5/SMP-JJ | 3.5mm Male | SMP Male | DC–26.5 GHz | 1.2 | Straight | |
| 3.5/SMP-JK | 3.5mm Male | SMP Female | DC–26.5 GHz | 1.2 | Straight | |
| 3.5/SMP-KJ | 3.5mm Female | SMP Male | DC–26.5 GHz | 1.2 | Straight | |

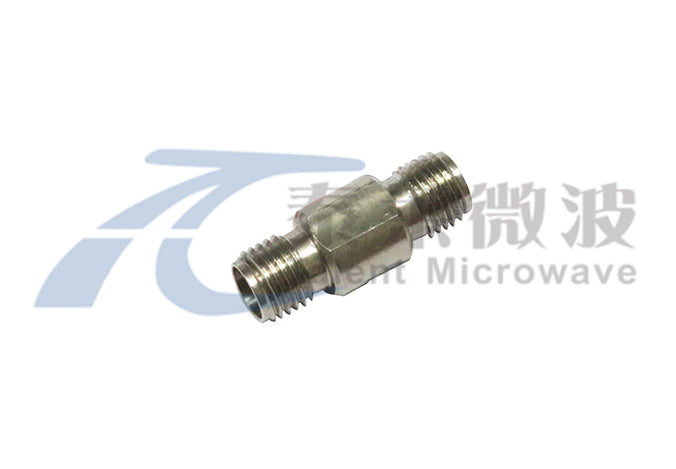

| 3.5/SMP-KK | 3.5mm Female | SMP Female | DC–26.5 GHz | 1.2 | Straight |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
