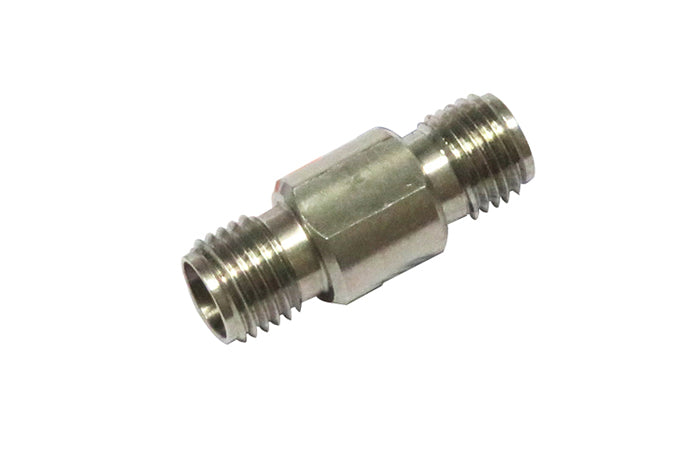

3.5mm to SMA Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The 3.5mm to SMA coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between 3.5mm and SMA interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 27 GHz.
Key Features
- Between-series 3.5mm to SMA coaxial adapter, 50 Ω
- Frequency range DC to 27 GHz
- VSWR ≤ 1.15
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|
| 3.5/SMA-JJG | 3.5mm Male | SMA Male | DC–27 GHz | 1.15 | Straight | |
| SMA/3.5-JJG | 3.5mm Male | SMA Male | DC–27 GHz | 1.15 | Straight | |
| 3.5/SMA-JKG | 3.5mm Male | SMA Female | DC–27 GHz | 1.15 | Straight | |
| 3.5/SMA-KJG | 3.5mm Female | SMA Male | DC–27 GHz | 1.15 | Straight | |
| SMA/3.5-JKG | 3.5mm Female | SMA Male | DC–27 GHz | 1.15 | Straight | |
| SMA/3.5-KJG | 3.5mm Male | SMA Female | DC–27 GHz | 1.15 | Straight | |
| 3.5/SMA-KKG | 3.5mm Female | SMA Female | DC–27 GHz | 1.15 | Straight | |
| SMA/3.5-KKG | 3.5mm Female | SMA Female | DC–27 GHz | 1.15 | Straight |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
