3.5mm to 3.5mm Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The 3.5mm to 3.5mm coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between two 3.5mm interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 33 GHz.
Key Features
- In-series 3.5mm coaxial adapter, 50 Ω
- Frequency range DC to 33 GHz
- VSWR 1.15 to 1.25 (model dependent)
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight, Bulkhead, Flange / Panel
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|

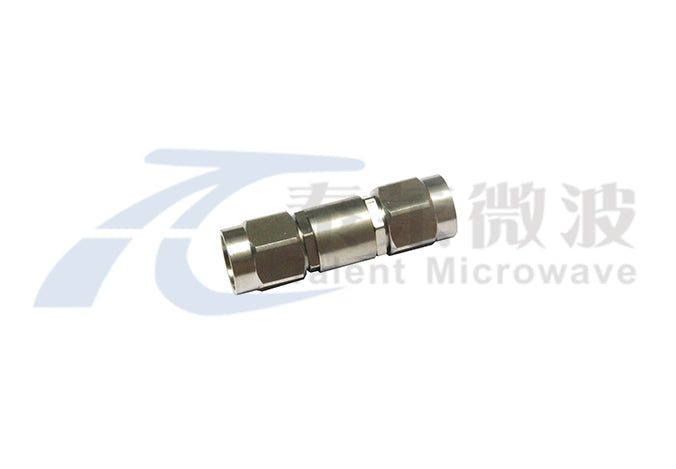

| 3.5-JJ | 3.5mm Male | 3.5mm Male | DC–33 GHz | 1.15 | Straight | |

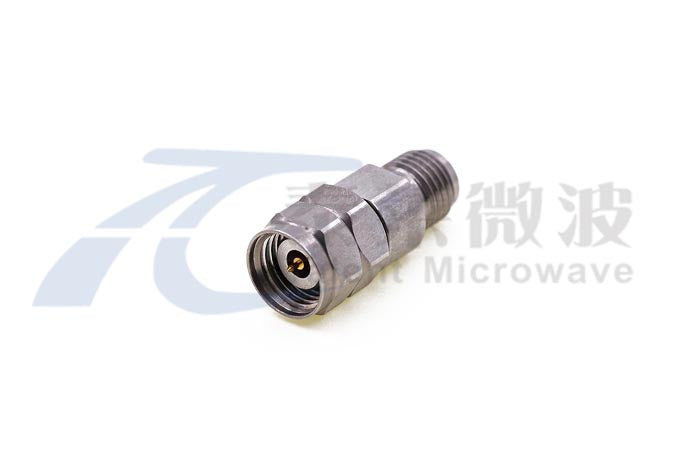

| 3.5-JK | 3.5mm Male | 3.5mm Female | DC–33 GHz | 1.15 | Straight | |

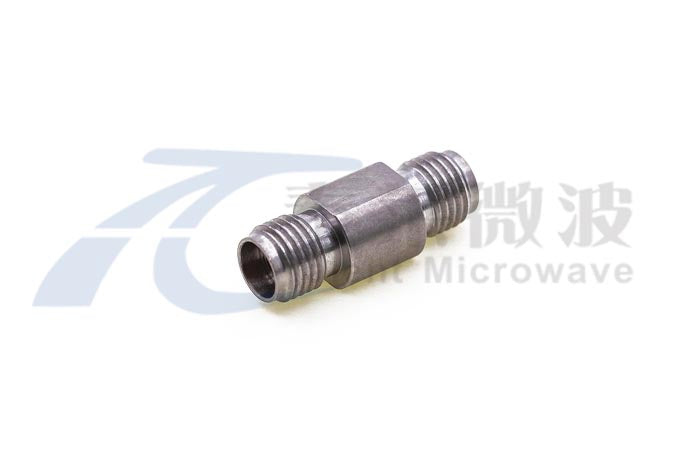

| 3.5-KK | 3.5mm Female | 3.5mm Female | DC–33 GHz | 1.15 | Straight | |

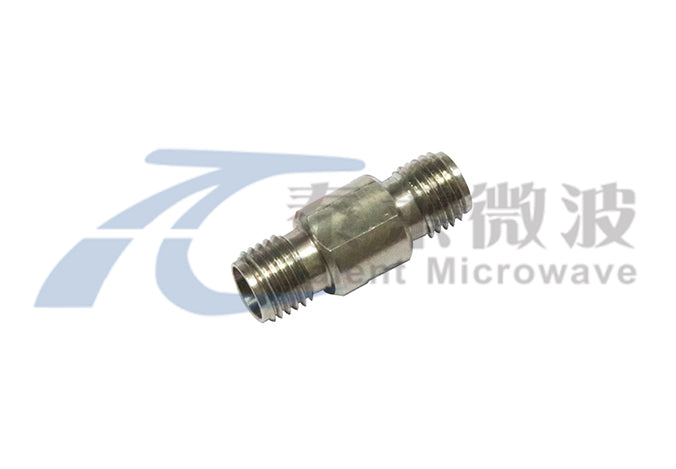

| 3.5-KYK | 3.5mm Female | 3.5mm Female | DC–26.5 GHz | 1.15 | Bulkhead | — |

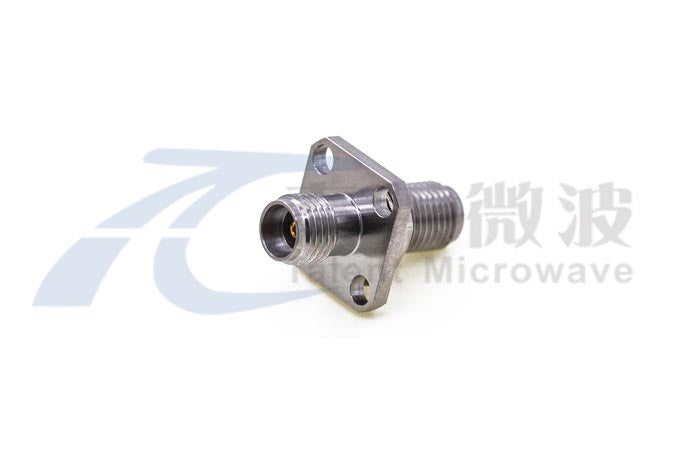

| 3.5-KFK-4-O | 3.5mm Female | 3.5mm Female | DC–33 GHz | 1.25 | 4 Hole Panel Mount |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
