2.92mm to SMP Coaxial Adapter

Between-series 2.92mm to SMP coaxial adapter, 50 Ω
Frequency range DC to 40 GHz
VSWR 1.2 to 1.25 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female

Model 2.92/SMP-JJG (2.92mm M / SMP M) 2.92/SMP-JKG (2.92mm M / SMP F) 2.92/SMP-KJG (2.92mm F / SMP M) 2.92/SMP-KKBG (2.92mm F / SMP F) 2.92/SMP-KKG (2.92mm F / SMP F)

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The 2.92mm to SMP coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between 2.92mm and SMP interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 40 GHz.

Key Features

Between-series 2.92mm to SMP coaxial adapter, 50 Ω
Frequency range DC to 40 GHz
VSWR 1.2 to 1.25 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female
Body styles: Straight
Individual datasheet available for every model

Model Options

Model	Interface 1	Interface 2	Frequency	VSWR (max)	Body Style	Datasheet
2.92/SMP-JJG	2.92mm Male	SMP Male	DC–40 GHz	1.25	Straight	PDF

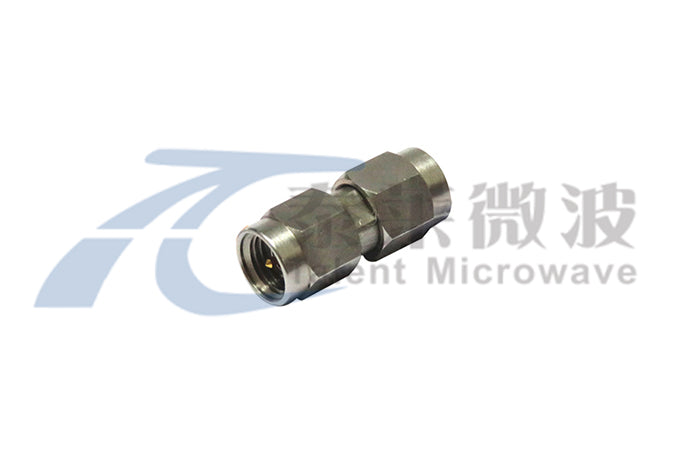

2.92/SMP-JKG	2.92mm Male	SMP Female	DC–40 GHz	1.25	Straight	PDF
2.92/SMP-KJG	2.92mm Female	SMP Male	DC–40 GHz	1.25	Straight	PDF
2.92/SMP-KKBG	2.92mm Female	SMP Female	DC–40 GHz	1.2	Straight	PDF
2.92/SMP-KKG	2.92mm Female	SMP Female	DC–40 GHz	1.25	Straight	PDF
