2.92mm to SMA Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The 2.92mm to SMA coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between 2.92mm and SMA interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 18 GHz.
Key Features
- Between-series 2.92mm to SMA coaxial adapter, 50 Ω
- Frequency range DC to 18 GHz
- VSWR ≤ 1.15
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|
| SMA/2.92-JJ | 2.92mm Male | SMA Male | DC–18 GHz | 1.15 | Straight | |

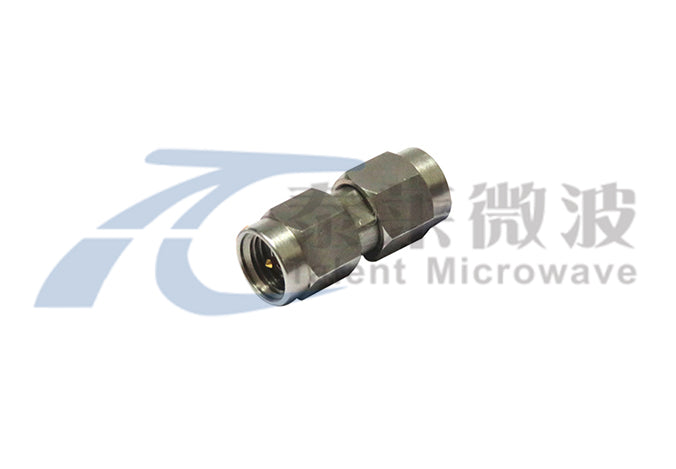

| SMA/2.92-JK | 2.92mm Female | SMA Male | DC–18 GHz | 1.15 | Straight | |
| SMA/2.92-KJ | 2.92mm Male | SMA Female | DC–18 GHz | 1.15 | Straight | |
| SMA/2.92-KK | 2.92mm Female | SMA Female | DC–18 GHz | 1.15 | Straight |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
