2.92mm to N Coaxial Adapter

Between-series 2.92mm to N coaxial adapter, 50 Ω
Frequency range DC to 18 GHz
VSWR ≤ 1.15
Available gender combinations: Male–Male, Male–Female

Model 2.92/N-JJ (2.92mm M / N M) 2.92/N-JK (2.92mm M / N F) 2.92/N-KJ (2.92mm F / N M) 2.92/N-KK (2.92mm F / N M)

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The 2.92mm to N coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between 2.92mm and N interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 18 GHz.

Key Features

Between-series 2.92mm to N coaxial adapter, 50 Ω
Frequency range DC to 18 GHz
VSWR ≤ 1.15
Available gender combinations: Male–Male, Male–Female
Body styles: Straight
Individual datasheet available for every model

Model Options

Model	Interface 1	Interface 2	Frequency	VSWR (max)	Body Style	Datasheet

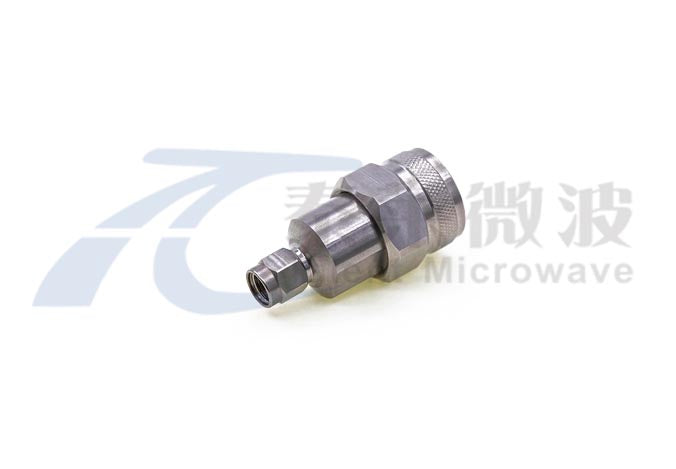

2.92/N-JJ	2.92mm Male	N Male	DC–18 GHz	1.15	Straight	PDF

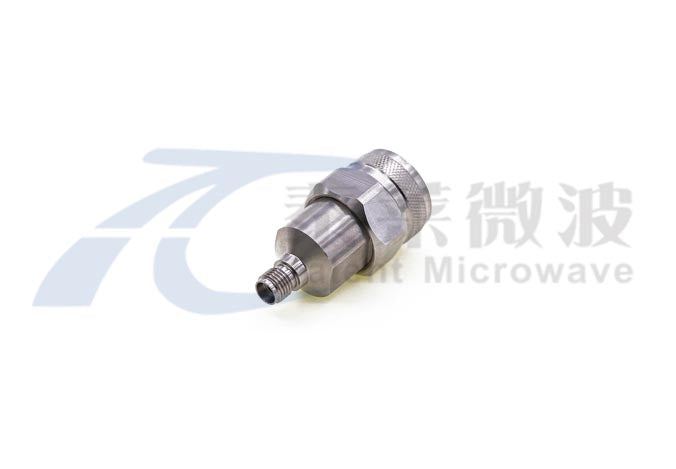

2.92/N-JK	2.92mm Male	N Female	DC–18 GHz	1.15	Straight	PDF

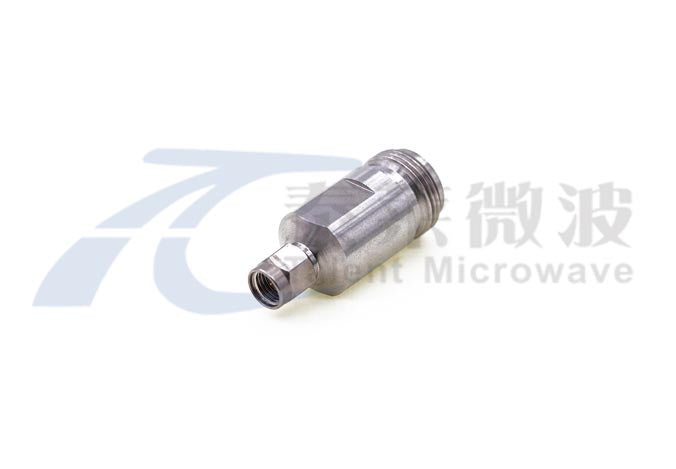

2.92/N-KJ	2.92mm Female	N Male	DC–18 GHz	1.15	Straight	PDF

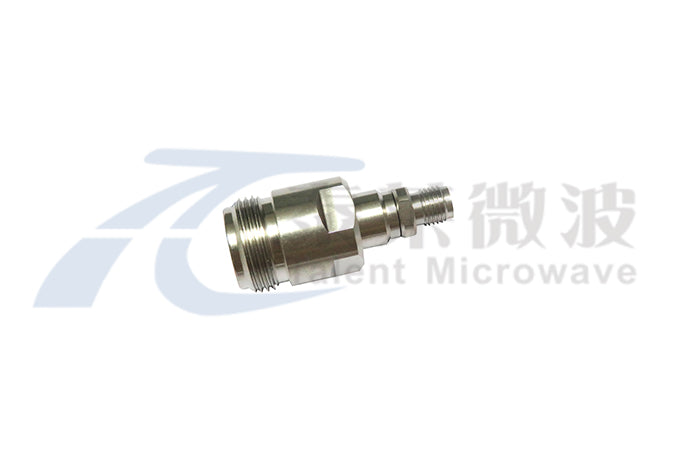

2.92/N-KK	2.92mm Female	N Male	DC–18 GHz	1.15	Straight	PDF
