2.92mm to 2.92mm Coaxial Adapter

In-series 2.92mm coaxial adapter, 50 Ω
Frequency range DC to 40 GHz
VSWR 1.15 to 1.3 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female

Model 2.92-JJ (2.92mm M / 2.92mm M) 2.92-JK (2.92mm M / 2.92mm F) 2.92-KFK-O (2.92mm F / 2.92mm F) 2.92-KK (2.92mm F / 2.92mm F) 2.92-JWJS (2.92mm M / 2.92mm M) 2.92-JWKS (2.92mm M / 2.92mm F) 2.92-KWKS (2.92mm F / 2.92mm F) 2.92-KYK (2.92mm F / 2.92mm F) 2.92-KFK (2.92mm F / 2.92mm F)

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The 2.92mm to 2.92mm coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between two 2.92mm interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 40 GHz.

Key Features

In-series 2.92mm coaxial adapter, 50 Ω
Frequency range DC to 40 GHz
VSWR 1.15 to 1.3 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female
Body styles: Straight, Right-angle, Bulkhead, Flange / Panel
Individual datasheet available for every model

Model Options

Model	Interface 1	Interface 2	Frequency	VSWR (max)	Body Style	Datasheet

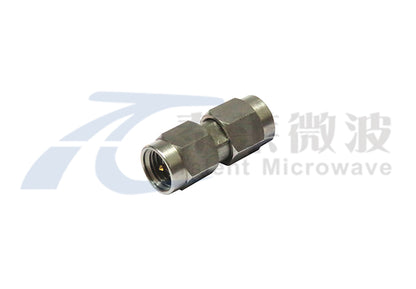

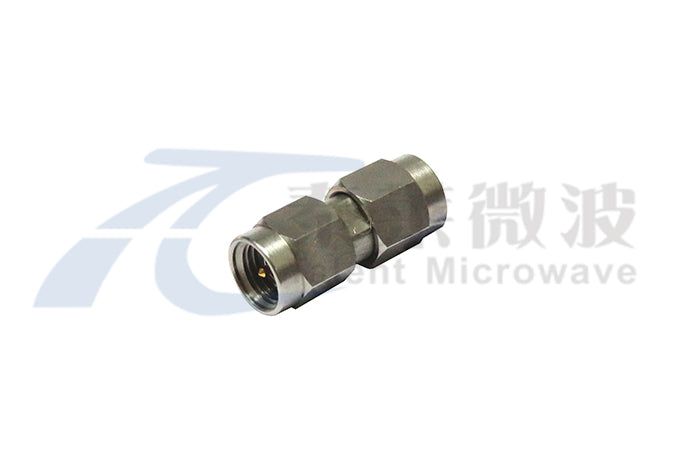

2.92-JJ	2.92mm Male	2.92mm Male	DC–40 GHz	1.15	Straight	PDF

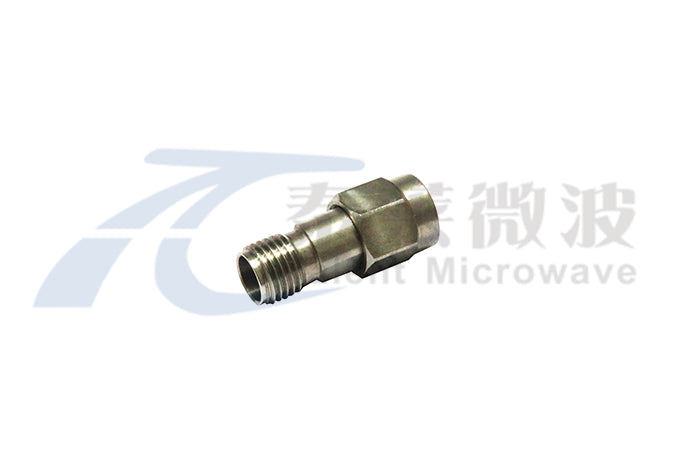

2.92-JK	2.92mm Male	2.92mm Female	DC–40 GHz	1.15	Straight	PDF
2.92-KFK-O	2.92mm Female	2.92mm Female	DC–40 GHz	1.25	Straight	PDF

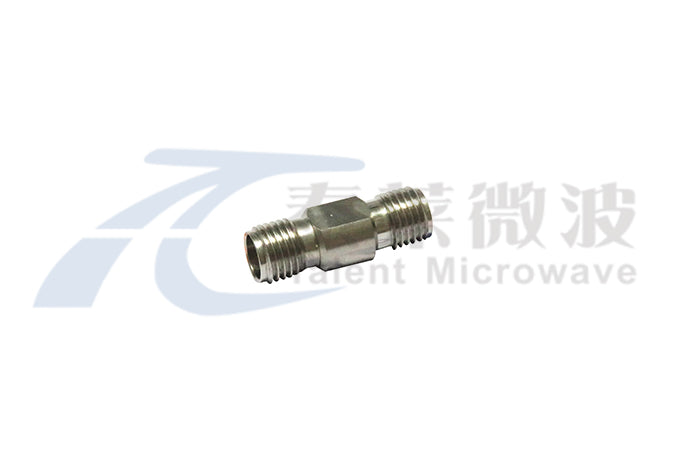

2.92-KK	2.92mm Female	2.92mm Female	DC–40 GHz	1.15	Straight	PDF
2.92-JWJS	2.92mm Male	2.92mm Male	DC–40 GHz	1.25	Right Angle	PDF

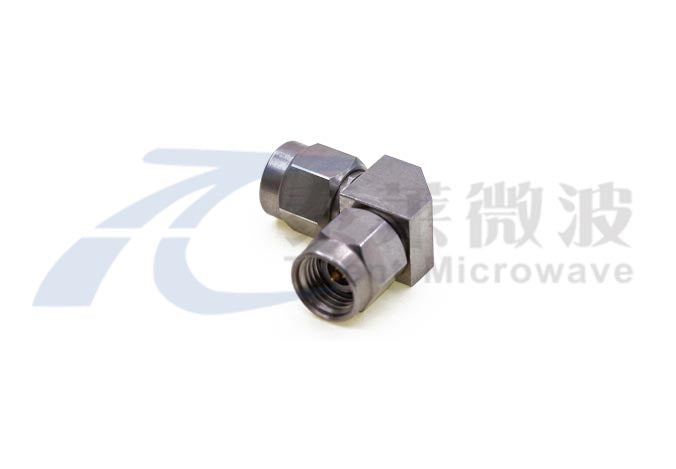

2.92-JWKS	2.92mm Male	2.92mm Female	DC–40 GHz	1.25	Right Angle	PDF

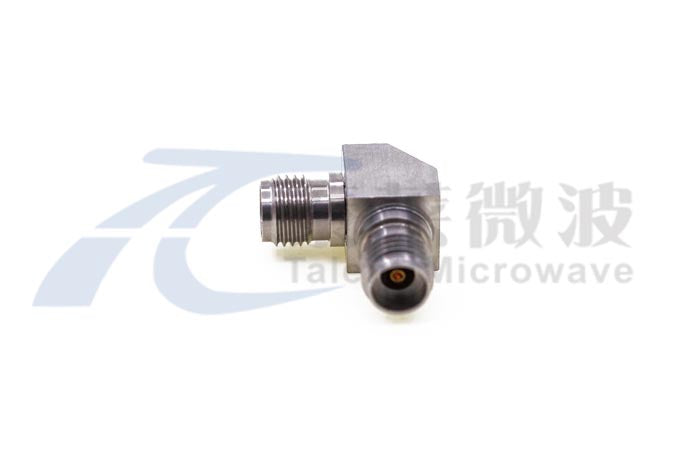

2.92-KWKS	2.92mm Female	2.92mm Female	DC–40 GHz	1.3	Right Angle	PDF

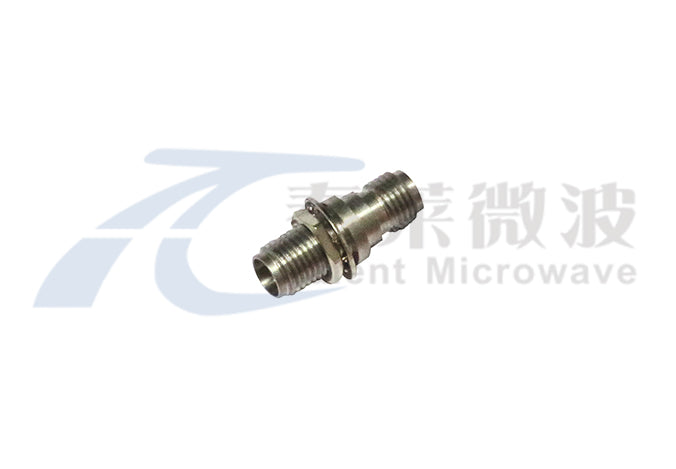

2.92-KYK	2.92mm Female	2.92mm Female	DC–40 GHz	1.25	Bulkhead	PDF

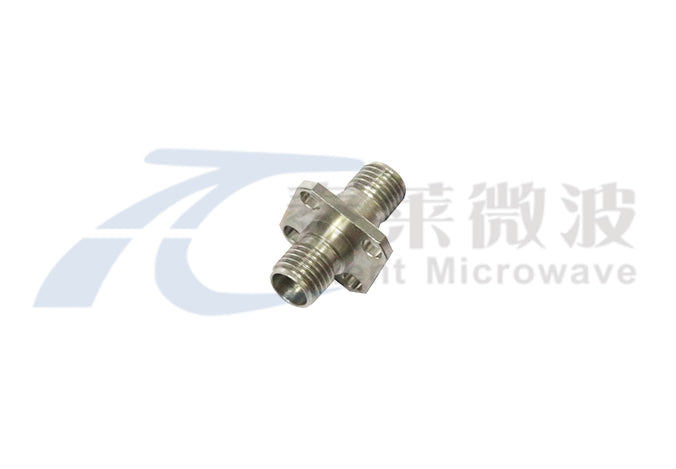

2.92-KFK	2.92mm Female	2.92mm Female	DC–40 GHz	1.15	4 Hole Panel Mount	PDF
