2.4mm to SMA Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The 2.4mm to SMA coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between 2.4mm and SMA interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 26.5 GHz.
Key Features
- Between-series 2.4mm to SMA coaxial adapter, 50 Ω
- Frequency range DC to 26.5 GHz
- VSWR ≤ 1.15
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|

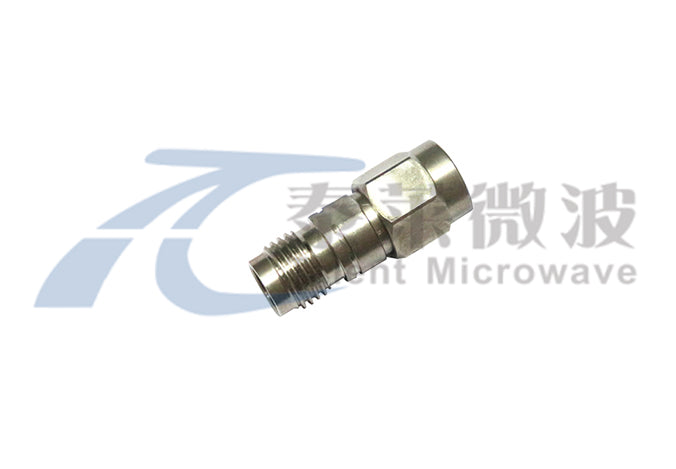

| SMA/2.4-JJ | 2.4mm Male | SMA Male | DC–26.5 GHz | 1.15 | Straight | |
| SMA/2.4-JK | 2.4mm Female | SMA Male | DC–26.5 GHz | 1.15 | Straight | |
| SMA/2.4-KJ | 2.4mm Male | SMA Female | DC–26.5 GHz | 1.15 | Straight | |
| SMA/2.4-KK | 2.4mm Female | SMA Female | DC–26.5 GHz | 1.15 | Straight |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
