2.4mm to 2.4mm Coaxial Adapter

In-series 2.4mm coaxial adapter, 50 Ω
Frequency range DC to 50 GHz
VSWR 1.15 to 1.35 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female

Model 2.4-JJ (2.4mm M / 2.4mm M) 2.4-JKS (2.4mm M / 2.4mm F) 2.4-KKS (2.4mm F / 2.4mm F) 2.4-JWKS (2.4mm M / 2.4mm F) 2.4-KYK-02 (2.4mm F / 2.4mm F) 2.4‐KYK‐02 (2.4mm F / 2.4mm F) 2.4-KFK-02 (2.4mm F / 2.4mm F)

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The 2.4mm to 2.4mm coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between two 2.4mm interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 50 GHz.

Key Features

In-series 2.4mm coaxial adapter, 50 Ω
Frequency range DC to 50 GHz
VSWR 1.15 to 1.35 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female
Body styles: Straight, Right-angle, Bulkhead, Flange / Panel
Individual datasheet available for every model

Model Options

Model	Interface 1	Interface 2	Frequency	VSWR (max)	Body Style	Datasheet

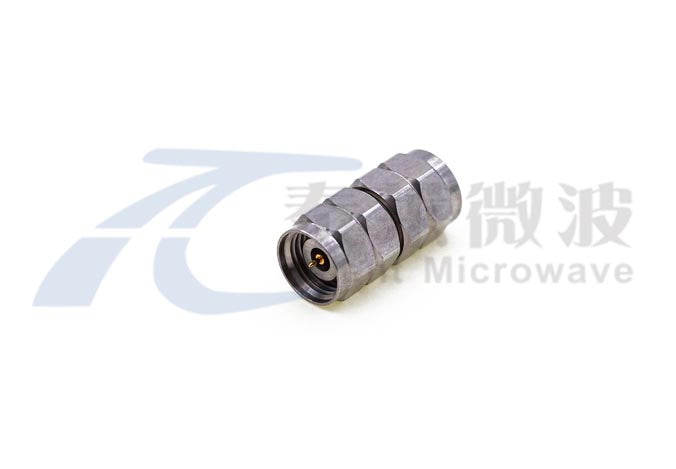

2.4-JJ	2.4mm Male	2.4mm Male	DC–50 GHz	1.15	Straight	PDF

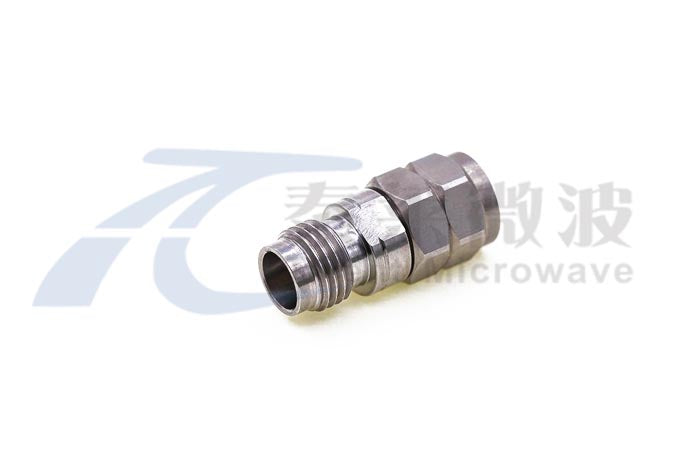

2.4-JKS	2.4mm Male	2.4mm Female	DC–50 GHz	1.15	Straight	PDF

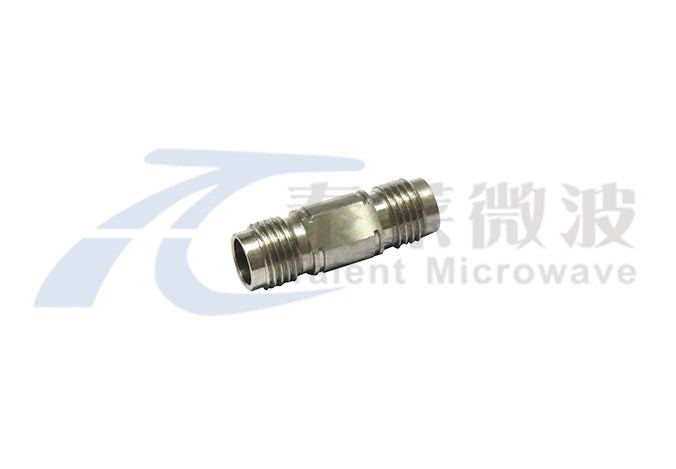

2.4-KKS	2.4mm Female	2.4mm Female	DC–50 GHz	1.15	Straight	PDF
2.4-JWKS	2.4mm Male	2.4mm Female	DC–50 GHz	1.35	Right Angle	PDF
2.4-KYK-02	2.4mm Female	2.4mm Female	DC–50 GHz	1.2	Bulkhead	—

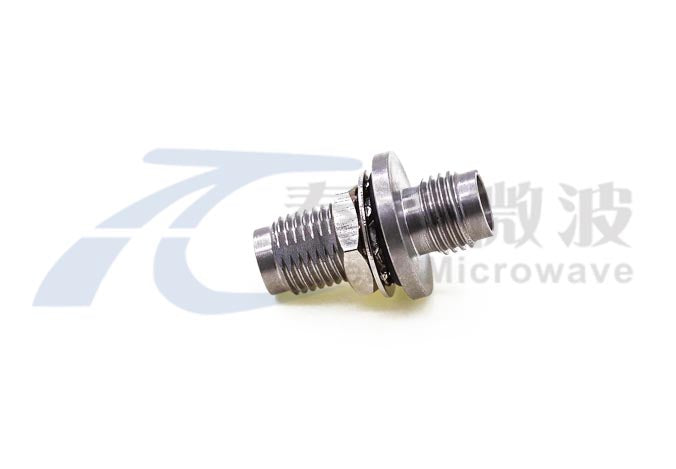

2.4‐KYK‐02	2.4mm Female	2.4mm Female	DC–50 GHz	1.2	Bulkhead	PDF

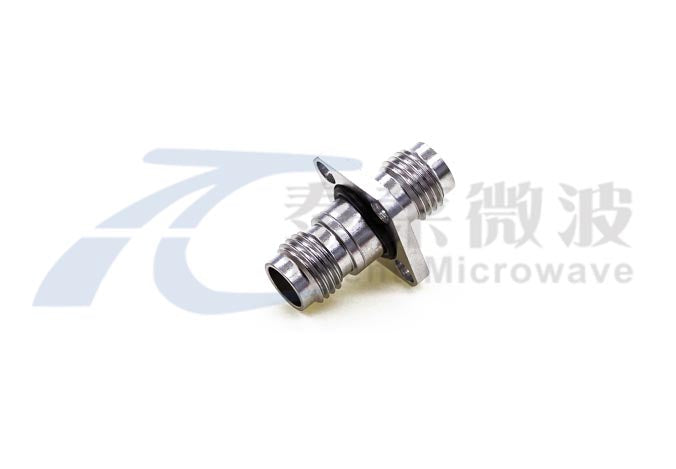

2.4-KFK-02	2.4mm Female	2.4mm Female	DC–50 GHz	1.25	4 Hole Panel Mount	PDF
