1650E 40 GSa/s

Key Features

  • 40 GSa/s sample rate, 8-bit, up to 15 GHz bandwidth
  • Pulse rise time under 20 ps (as low as 16 ps)
  • 1, 2 or 4 channels, sync better than 10 ps
  • Up to 16 GSa memory per channel, about 400 ms of non-repeating playback at 40 GSa/s
  • 1 ps delay steps, sequence playback, NRZ and PAM4 serial-signal simulation
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

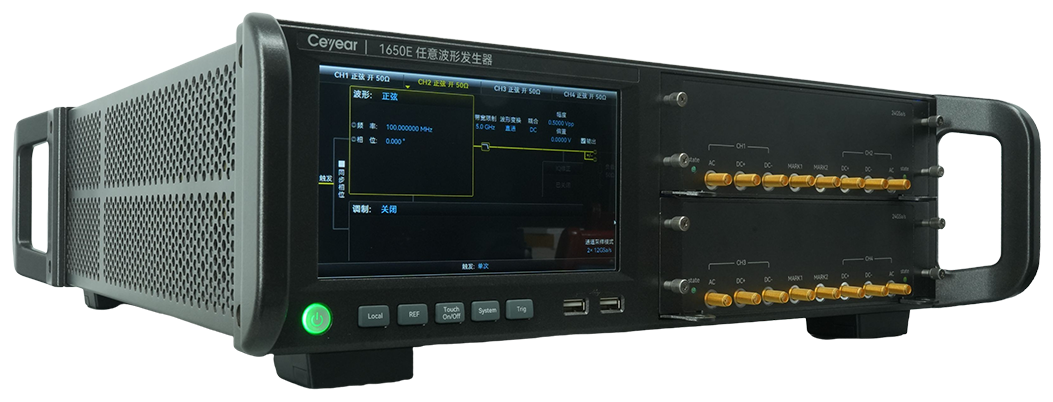

Arbitrary waveform generator with a 40 GSa/s sample rate, 8-bit vertical resolution and up to 15 GHz bandwidth. Pulse rise time is under 20 ps. One, two or four output channels, with up to 16 GSa of memory per channel.

It generates sine, DC and arbitrary waveforms, including I/Q baseband, IF/RF, multi-tone, noise and radar signals. Playback can be timed, externally triggered, looped or single-shot, with channel-to-channel and multi-instrument synchronization.

Models & Specifications

Common Specifications

Specification Value
Waveforms Sine, DC, arbitrary, I/Q, IF/RF, multi-tone, noise, radar
Playback Timed, external trigger, loop, single-shot (1 to 65530)
Channel sync Better than 10 ps
Delay adjust 1 ps steps
Mark output Synchronous Mark, 7 significant digits
Flatness 2.9 dB across a 15 GHz wideband signal

Model Comparison

Specification 1 Channel 2 Channel 4 Channel
Output channels 1 2 4

Specifications from the official Ceyear official product page (Chinese). en.ceyear.com does not list this series, and the datasheet download requires a Ceyear login, so no file is attached..
