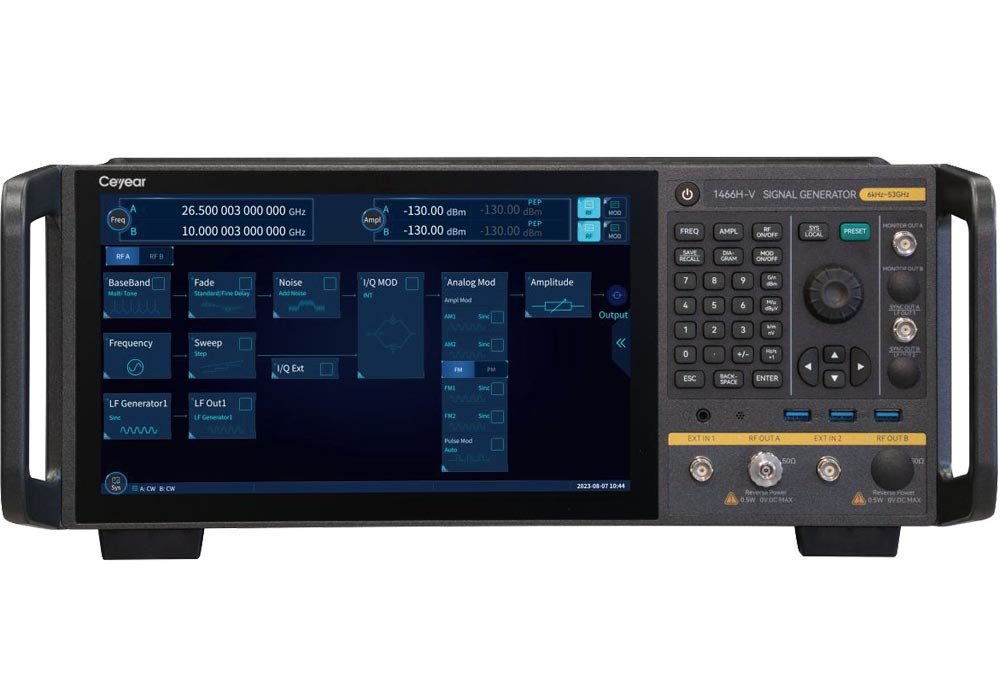

• Ceyear 1466-V Series Vector Signal Generator

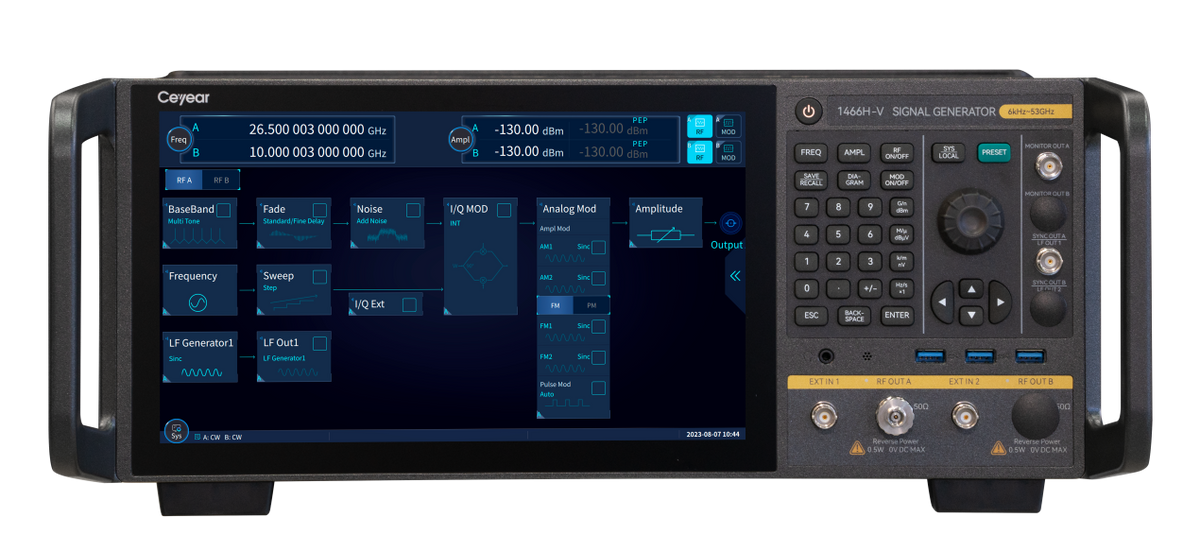

  • Ceyear 1466-V Series Vector Signal Generator

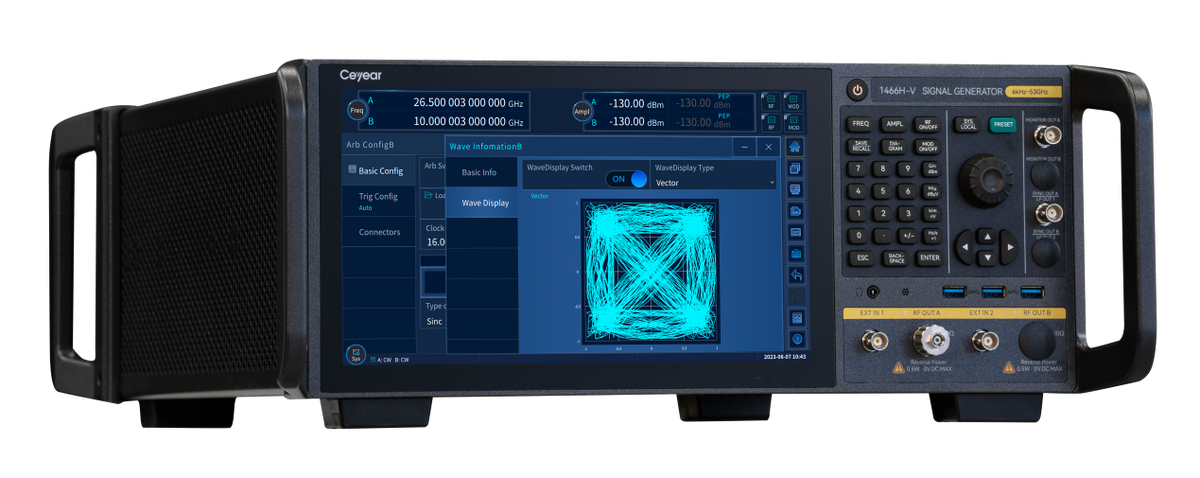

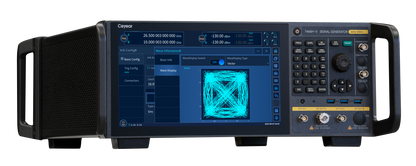

  • Ceyear 1466-V Series Vector Signal Generator

1466-V 6kHz-67GHz

Product Features

  • Excellent spectral purity: SSB phase noise -145 dBc/Hz @10 kHz offset at 1 GHz, -132 dBc/Hz @10 kHz offset at 10 GHz; wideband noise floor -161 dBc/Hz @30 MHz offset at 20 GHz; spurious <-80 dBc at 10 GHz; harmonics <-55 dBc
  • Large dynamic range and high-accuracy power: typ. +27 dBm @5 GHz, +24 dBm @20 GHz, +25 dBm @30 GHz, +22 dBm @60 GHz; min settable -150 dBm; up to ~170 dB dynamic range; power accuracy <0.5 dB below 20 GHz (typ.)
  • Up to 2 GHz internal RF modulation bandwidth (optional 500 MHz / 1 GHz / 2 GHz); up to 5 GHz with external broadband baseband IQ input
  • Excellent vector modulation accuracy: QPSK EVM measured 0.4% (2 GHz carrier); 5G NR ACPR typ. <-55 dBc @2 GHz, <-45 dBc @42.5 GHz
  • Multi-machine cascade for multi-source phase-coherent / MIMO / beamforming / diversity testing
  • Full analog modulation suite (AM/FM/ΦM/pulse) including complex pulse modes
  • 30+ standard digital modulation styles (PSK, FSK, QAM, APSK)
  • Arbitrary waveform playback with variable sample rate and baseband preview
  • Multicarrier / multi-tone signal generation
  • Noise addition: pure noise, AWGN, continuous-wave interference
  • Intra-pulse modulation: LFM/Chirp, Barker, phase codes, etc.
  • Real-time fading simulation: up to 20 paths; Doppler / Rayleigh / Rice / Rayleigh+lognormal; 3GPP preset scenes
  • Mobile communication signal simulation: 600+ TestModel/FRC including 5G NR one-click; GSM/EDGE, LTE/LTE-A, NB-IoT options
  • WLAN signal simulation: 802.11a/b/g/n/ac/ax (and be/Wi-Fi7 option); Bluetooth option
  • 11.6-inch touch graphics-guided UI; customizable menus; cross-platform client and browser remote control
Frequency Range
Channels
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

1466-V Series Vector Signal Generator

Ceyear 1466-V vector signal generator is created to meet the varied test requirements with top performance and functionality, especially in higher frequencies, wider bandwidths, higher signal spectral purity, higher output power, better EVM and high-precision synchronized multichannel applications. Also rich built-in functions such as analog modulation, digital modulation, fading simulation, and AWGN could bring more convenience to daily testing. Through integration with multi-scenario signal simulation software, complex style signals can be generated for general-purpose tests in different scenarios for wireless communication, radar and navigation. Friendly designed human-computer interaction, including graphics guided operation, web browser based remote control, power meter automatic connection and identification, SCPI command recording, as well as interface user customization could speed up the test operation. The Ceyear 1466-V vector signal generator is an ideal choice for high standard testing in components, modules, machines and systems.
