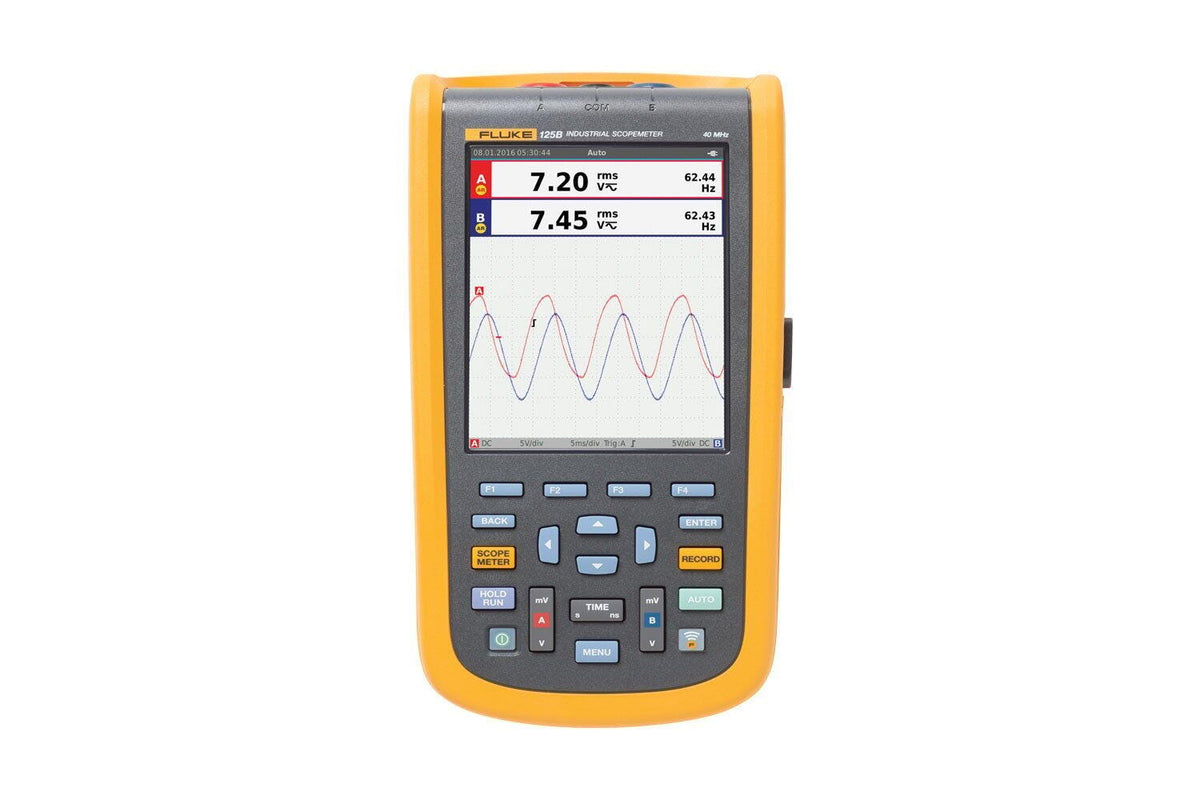

120B Series ScopeMeter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
Product Introduction
The 120B Series is a compact industrial ScopeMeter that combines a dual-input oscilloscope, a 5,000-count true-rms multimeter and a high-speed recorder. Connect-and-View triggering sets up a stable waveform without manual adjustments, and IntellaSet shows the numerical readings that match the signal. Recorder Event Detect logs intermittent faults. Inputs are rated CAT IV 600 V.
Models
| Model | Bandwidth | Channels |
|---|---|---|
| 123B | 20 MHz | 2 |
| 124B | 40 MHz | 2 |
| 125B | 40 MHz | 2, plus power and bus-health tests |
Real-time sampling is 40 MS/s on both channels. Equivalent-time sampling is up to 4 GS/s on repetitive signals.
