1.85mm to SSMP Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The 1.85mm to SSMP coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between 1.85mm and SSMP interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 67 GHz.
Key Features
- Between-series 1.85mm to SSMP coaxial adapter, 50 Ω
- Frequency range DC to 67 GHz
- VSWR 1.2 to 1.45 (model dependent)
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|
| 1.85/SSMP-JJ | 1.85mm Male | SSMP Male | DC–67 GHz | 1.2 | Straight | — |
| SSMP/1.85-JJ | 1.85mm Male | SSMP Male | DC–67 GHz | 1.2 | Straight | — |
| 1.85/SSMP-JK | 1.85mm Male | SSMP Female | DC–67 GHz | 1.2 | Straight | — |

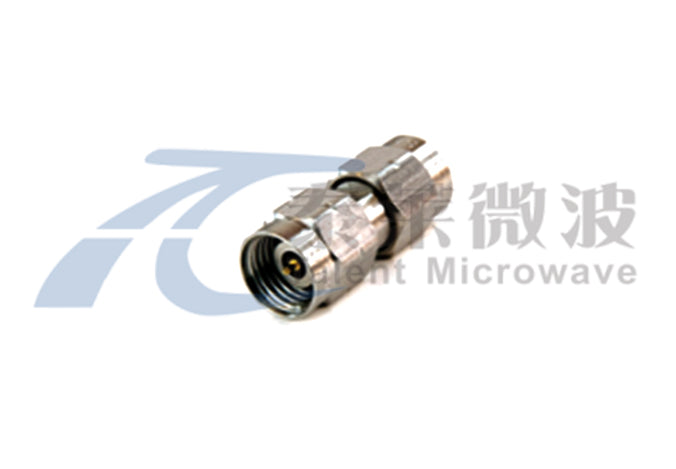

| 1.85/SSMP-KJ | 1.85mm Female | SSMP Male | DC–67 GHz | 1.2 | Straight | — |
| SSMP/1.85-JK | 1.85mm Male | SSMP Female | DC–67 GHz | 1.2 | Straight | — |

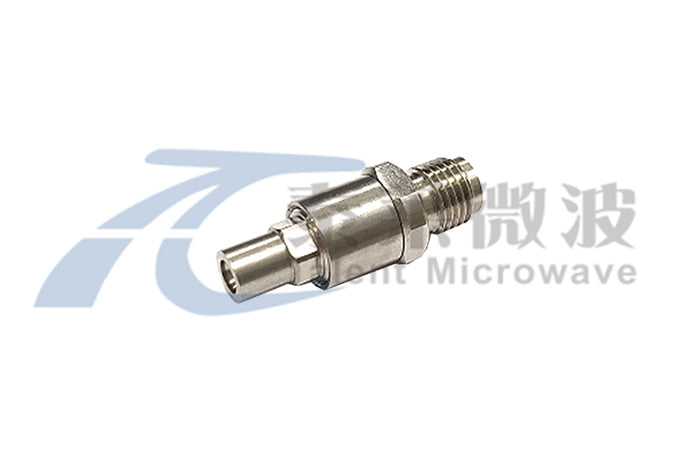

| SSMP/1.85-KJ | 1.85mm Male | SSMP Female | DC–67 GHz | 1.2 | Straight | — |
| 1.85-SSMP-KK | 1.85mm Female | SSMP Female | DC–67 GHz | 1.45 | Straight |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
