1.85mm to 1.85mm Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The 1.85mm to 1.85mm coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between two 1.85mm interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 67 GHz.
Key Features
- In-series 1.85mm coaxial adapter, 50 Ω
- Frequency range DC to 67 GHz
- VSWR 1.15 to 1.5 (model dependent)
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight, Right-angle, Bulkhead, Flange / Panel
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|

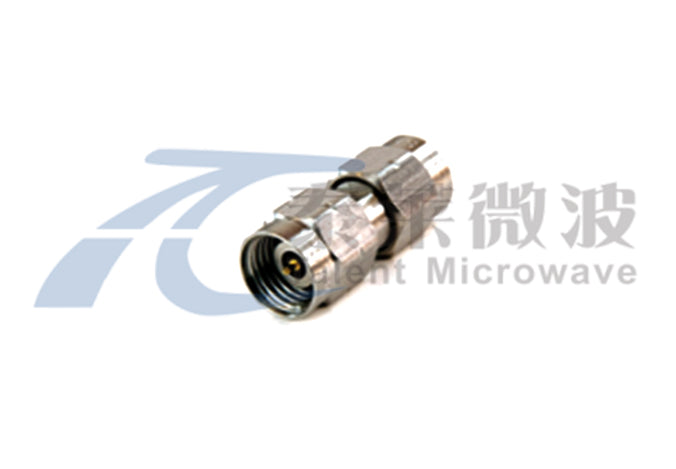

| 1.85-JJ | 1.85mm Male | 1.85mm Male | DC–67 GHz | 1.15 | Straight | |

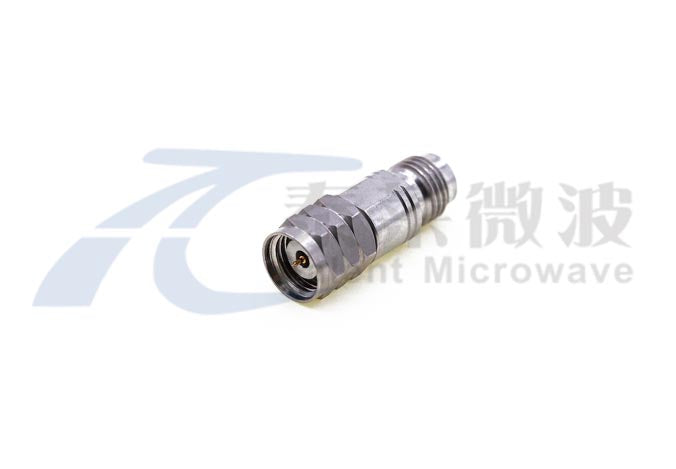

| 1.85-JK | 1.85mm Male | 1.85mm Female | DC–67 GHz | 1.15 | Straight | |

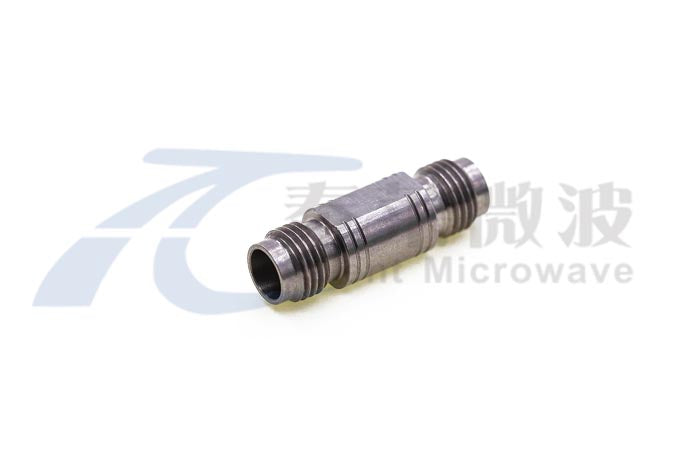

| 1.85-KK | 1.85mm Female | 1.85mm Female | DC–67 GHz | 1.15 | Straight | |
| 1.85-JWKG | 1.85mm Male | 1.85mm Female | DC–67 GHz | 1.5 | Right Angle | |

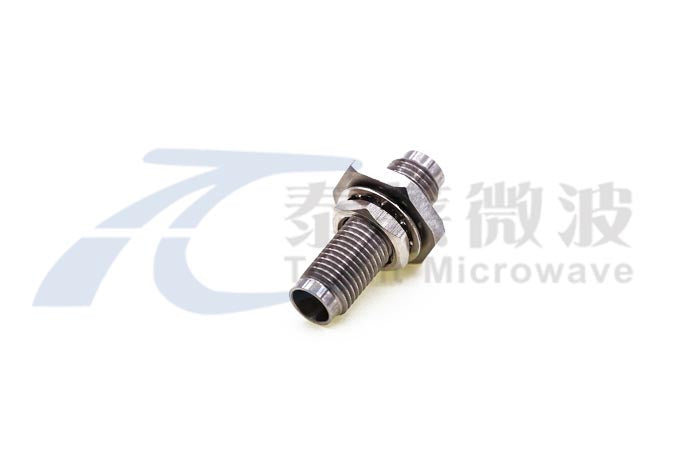

| 1.85-KYK | 1.85mm Female | 1.85mm Female | DC–67 GHz | 1.15 | Bulkhead | |
| 1.85-KFK | 1.85mm Female | 1.85mm Female | DC–67 GHz | 1.15 | 4 Hole Panel Mount |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
