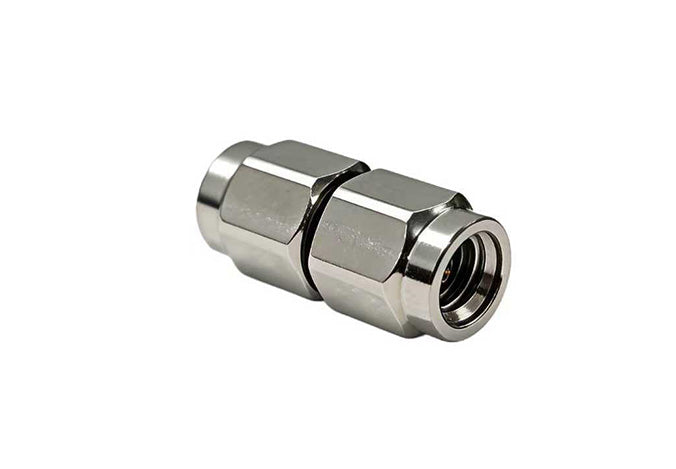

1.0mm to 2.4mm Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The 1.0mm to 2.4mm coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between 1.0mm and 2.4mm interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 50 GHz.
Key Features
- Between-series 1.0mm to 2.4mm coaxial adapter, 50 Ω
- Frequency range DC to 50 GHz
- VSWR ≤ 1.3
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|
| 1.0-2.4-JJG | 1.0mm Male | 2.4mm Male | DC–50 GHz | 1.3 | Straight | |
| 1.0-2.4-JKG | 1.0mm Male | 2.4mm Female | DC–50 GHz | 1.3 | Straight | |
| 1.0-2.4-KJG | 1.0mm Female | 2.4mm Male | DC–50 GHz | 1.3 | Straight | |
| 1.0-2.4-KKG | 1.0mm Female | 2.4mm Female | DC–50 GHz | 1.3 | Straight |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
