1.0mm to 1.0mm Coaxial Adapter

In-series 1.0mm coaxial adapter, 50 Ω
Frequency range DC to 110 GHz
VSWR 1.3 to 1.5 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female

Model 1.0-JJG (1.0mm M / 1.0mm M) 1.0-JKG (1.0mm M / 1.0mm F) 1.0-JYK-3 (1.0mm M / 1.0mm F) 1.0-KKG (1.0mm F / 1.0mm F) 1.0-KYK (1.0mm F / 1.0mm F) 1.0-KYKVS (1.0mm F / 1.0mm F) 1.0-KFK (1.0mm F / 1.0mm F)

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The 1.0mm to 1.0mm coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between two 1.0mm interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 110 GHz.

Key Features

In-series 1.0mm coaxial adapter, 50 Ω
Frequency range DC to 110 GHz
VSWR 1.3 to 1.5 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female
Body styles: Straight, Flange / Panel
Individual datasheet available for every model

Model Options

Model	Interface 1	Interface 2	Frequency	VSWR (max)	Body Style	Datasheet

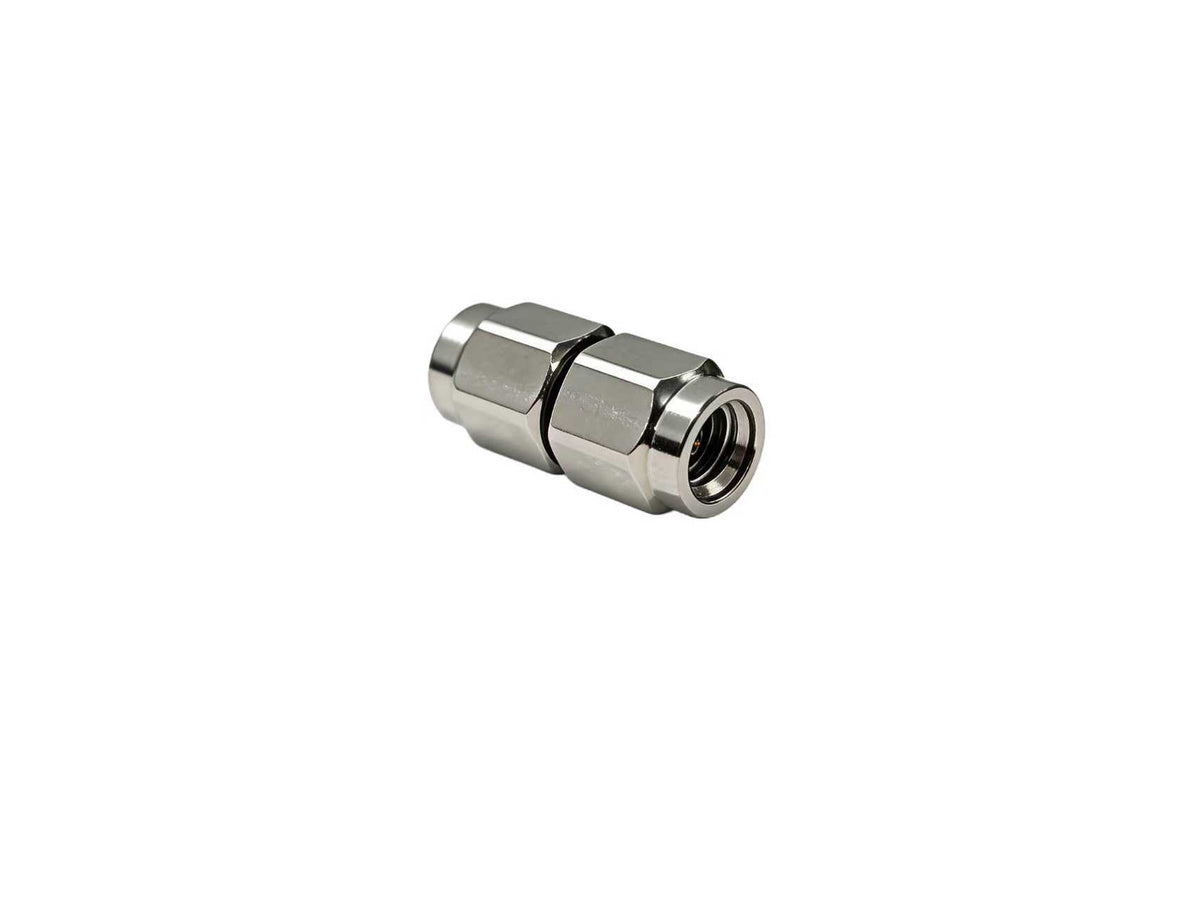

1.0-JJG	1.0mm Male	1.0mm Male	DC–110 GHz	1.3	Straight	PDF

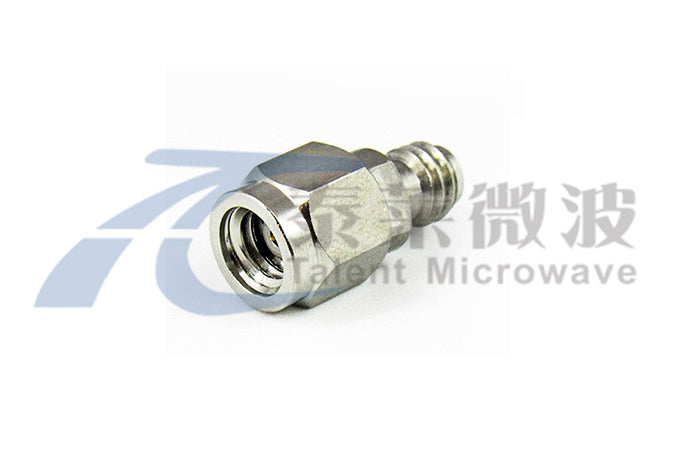

1.0-JKG	1.0mm Male	1.0mm Female	DC–110 GHz	1.3	Straight	PDF
1.0-JYK-3	1.0mm Male	1.0mm Female	DC–110 GHz	1.5	Straight	PDF
1.0-KKG	1.0mm Female	1.0mm Female	DC–110 GHz	1.3	Straight	PDF
1.0-KYK	1.0mm Female	1.0mm Female	DC–110 GHz	1.35	Straight	PDF
1.0-KYKVS	1.0mm Female	1.0mm Female	DC–110 GHz	1.5	Straight	PDF
1.0-KFK	1.0mm Female	1.0mm Female	DC–110 GHz	1.35	4 Hole Panel Mount	PDF
