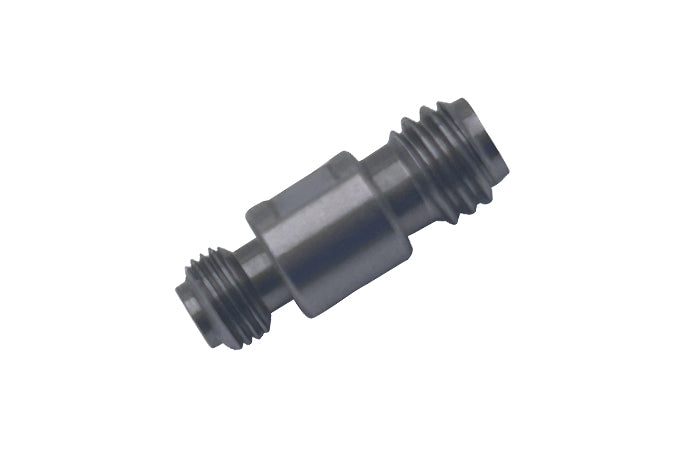

0.8mm to 1.0mm Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The 0.8mm to 1.0mm coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between 0.8mm and 1.0mm interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 110 GHz.
Key Features
- Between-series 0.8mm to 1.0mm coaxial adapter, 50 Ω
- Frequency range DC to 110 GHz
- VSWR ≤ 1.5
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|
| 1.0-0.8-JJ | 0.8mm Male | 1.0mm Male | DC–110 GHz | 1.5 | Straight | |
| 1.0-0.8-JK | 0.8mm Female | 1.0mm Male | DC–110 GHz | 1.5 | Straight | |
| 1.0-0.8-KJ | 0.8mm Male | 1.0mm Female | DC–110 GHz | 1.5 | Straight | |
| 1.0-0.8-KK | 0.8mm Female | 1.0mm Female | DC–110 GHz | 1.5 | Straight |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
