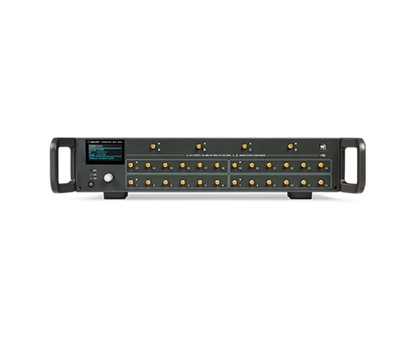

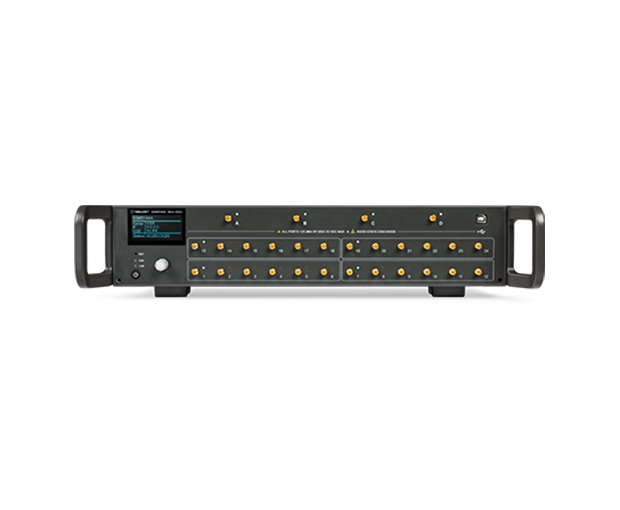

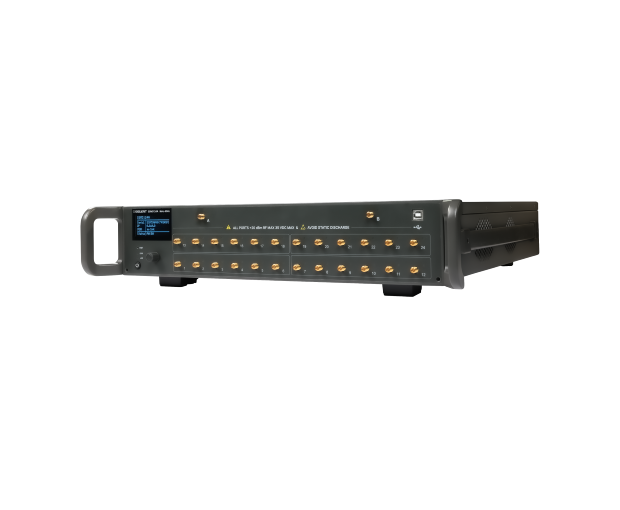

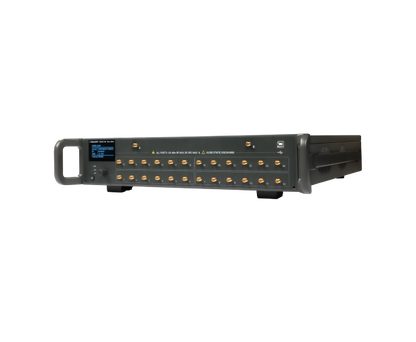

SSM5000A Switch Matrix

Key Features

  • Frequency range: 9 kHz - 9 GHz or 100 kHz - 26.5 GHz
  • 2 or 4 inputs, 6 / 12 / 24 outputs
  • Max input DC voltage: 35 V
  • Max input power: 20 dBm
  • Expands VNA test ports for multi-port measurements
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Product Introduction

The SIGLENT SSM5000A series switch matrix expands the test ports of vector network analyzers and other RF instruments for multi-port device testing. Models cover 9 kHz to 9 GHz with 2 or 4 inputs and 12 or 24 outputs, and 100 kHz to 26.5 GHz with 2x6 or 4x12 ports. Max input DC voltage is 35 V and max input power 20 dBm.
