Siglent

SDL1000X 150V 30A 200W-300W

From $4,299.00

  • SDL1000X 150V 30A 200W-300W
  • SDL1000X 150V 30A 200W-300W

Key Features

  • DC 150 V / 30 A, total power 200 W or 300 W
  • Static modes / dynamic mode: CC/CV/CR/CP
  • Measuring speed of voltage and current up to 500 kHz
  • Adjustable current rise time 0.001 A/μs ~ 2.5 A/μs
  • Readback resolution 0.1 mV / 0.1 mA (X) or 1 mV / 1 mA (X-E)
  • Battery test, CR-LED mode, list and program functions
  • OCP, OVP, OPP, OTP and LRV protection
Model
$4,299.00
$4,299.00
Download datasheet

Product Introduction

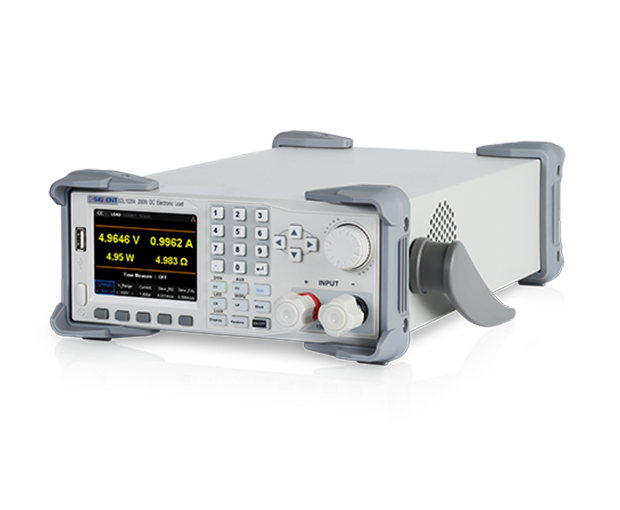

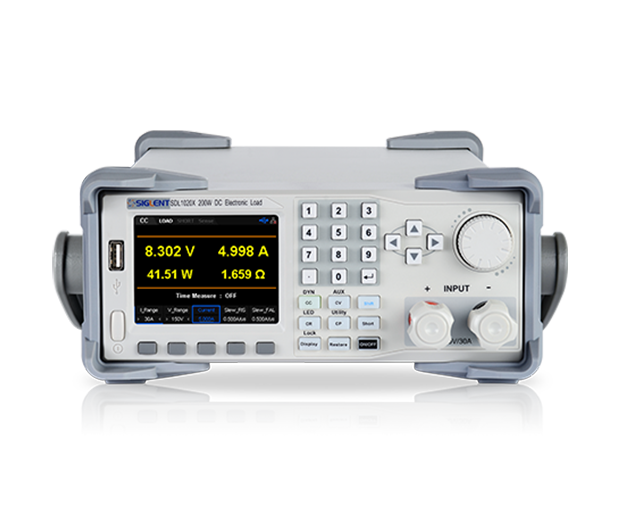

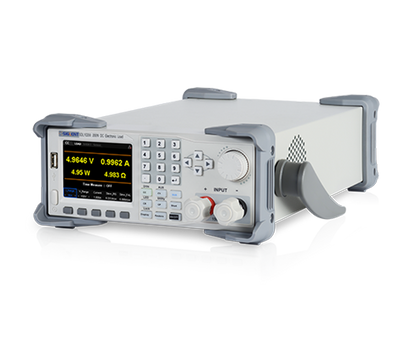

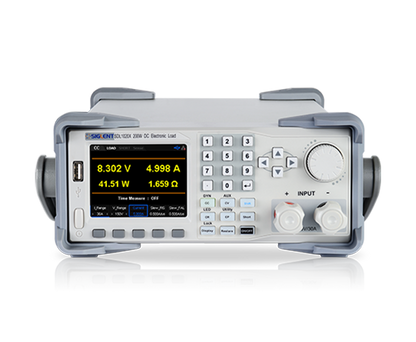

The SIGLENT SDL1000X / SDL1000X-E series programmable DC electronic loads offer an input range of 150 V / 30 A with 200 W (SDL1020X/X-E) or 300 W (SDL1030X/X-E) total power. They support CC/CV/CR/CP static and dynamic modes, measurement speed up to 500 kHz, adjustable current slew rate from 0.001 A/μs to 2.5 A/μs, and readback resolution of 0.1 mV/0.1 mA (SDL1000X) or 1 mV/1 mA (SDL1000X-E). Includes battery test, CR-LED, list/program functions and OCP/OVP/OPP/OTP protection.

SDL1000X 150V 30A 200W-300W

$4,299.00
