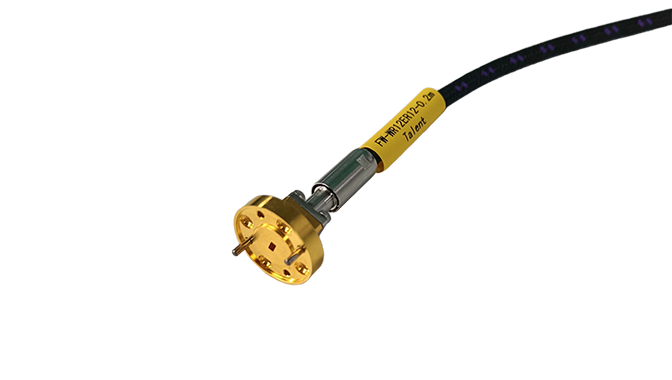

Millimeter-Wave Waveguide Flex Cable
Talent Microwave FW series flexible waveguide cables connect millimetre-wave test equipment and frequency extenders without rigid waveguide runs, in WR-15, WR-12, WR-10 and WR-6.5 bands from 50 to 170 GHz, waveguide-to-waveguide or waveguide-to-1.0mm/0.8mm coax.
Key Features
- Flexible waveguide cable assemblies, 50–170 GHz
- WR-15, WR-12, WR-10 and WR-6.5 bands
- Waveguide-to-waveguide or waveguide-to-coax (1.0mm / 0.8mm)
- Lengths 0.08 m to 4 m
Model Options
| Model | Interface 1 | Interface 2 | Frequency | Insertion Loss | Return Loss | Length | Datasheet |
|---|---|---|---|---|---|---|---|
| FW-0.8MWR06-0.08m | 0.8mm | WR-6.5 | 110–170 GHz | 5.2 dB | -10 dB | 0.08 m | |
| FW-1.0MWR10-0.18m | 1.0mm | WR-10 | 75–110 GHz | 3 dB | -12 dB | 0.18 m | |
| FW-1.0MWR10-0.1m | 1.0mm | WR-10 | 75–110 GHz | 2 dB | -17 dB | 0.1 m | |
| FW-1.0MWR10-0.2m | 1.0mm | WR-10 | 75–110 GHz | 3.5 dB | -12 dB | 0.2 m | |
| FW-1.0MWR12-0.2m | 1.0mm | WR-12 | 60–90 GHz | 3 dB | -12 dB | 0.2 m | |
| FW-1.0MWR15-0.18m | 1.0mm | WR-15 | 50–75 GHz | 2.5 dB | -12 dB | 0.18 m | |
| FW-1.0MWR15-0.1m | 1.0mm | WR-15 | 50–75 GHz | 2 dB | -12 dB | 0.1 m | |
| FW-1.0MWR15-0.2m | 1.0mm | WR-15 | 50–75 GHz | 2.5 dB | -12 dB | 0.2 m | |
| FW-WR06WR06-0.2m | WR-6.5 | WR-6.5 | 110–170 GHz | 6 dB | -10 dB | 0.2 m | |
| FW-WR10WR10-0.1m | WR-10 | WR-10 | 75–110 GHz | 2 dB | -12 dB | 0.1 m | |
| FW-WR10WR10-0.2m | WR-10 | WR-10 | 75–110 GHz | 3.5 dB | -12 dB | 0.2 m | |
| FW-WR10WR10-4m-A | WR-10 | WR-10 | 75–110 GHz | 50 dB | -16 dB | 4 m | |
| FW-WR12WR12-0.2m | WR-12 | WR-12 | 60–90 GHz | 3 dB | -12 dB | 0.2 m | |
| FW-WR15WR15-0.2m | WR-15 | WR-15 | 50–75 GHz | 2.5 dB | -12 dB | 0.2 m |
Lengths and connector combinations can be customised. Please contact us for a quotation.
