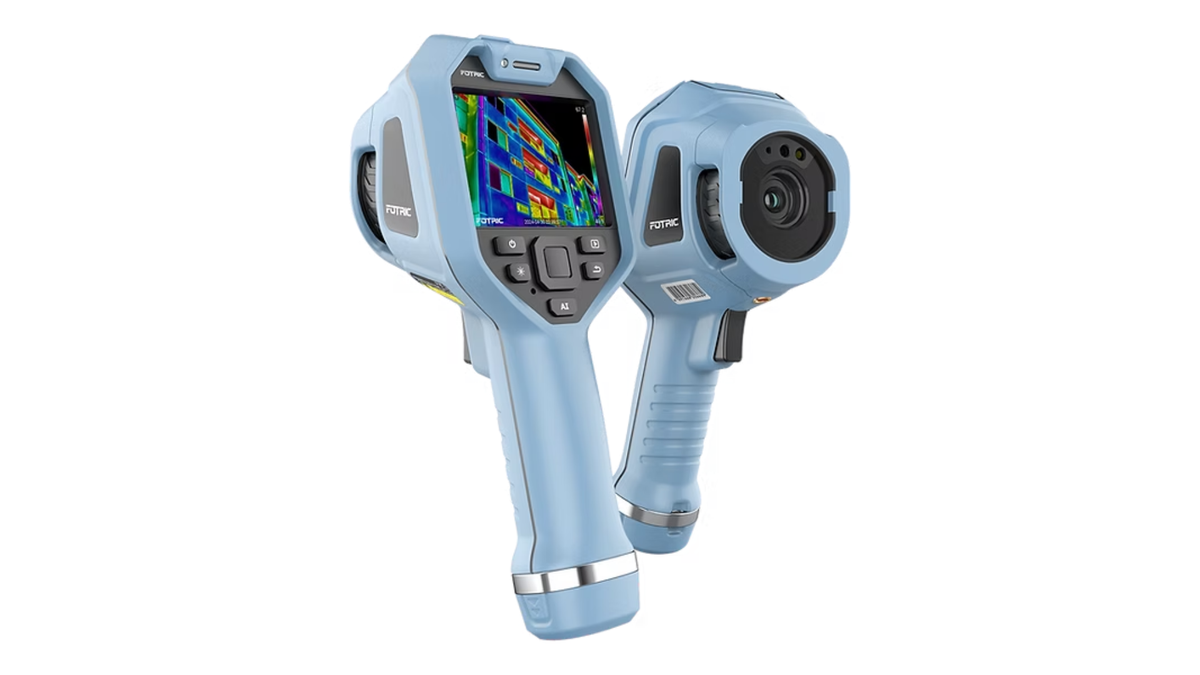

TK Series SharpView Thermal Camera
Your first step to professional thermography. FOTRIC TK series are industrial-grade handheld thermal cameras for facility maintenance. Real 384 × 288 (TK6 / TK7 / TK8) or 320 × 240 (TK5) ceramic-packaged infrared detectors and 40 mK thermal sensitivity unveil subtle flaws, while T-DEF® visible-light blending, a 3.5-inch touch screen and a rugged IP54 body make the TK series ideal for building inspection, HVAC, electrical inspection and manufacturing.
Choose manual focus with a 25° standard lens (TK6, TK8) for concise measurement at all distances – down to 0.15 m for PCBs and precision components – or a focus-free 49° wide-angle lens (TK5, TK7) to always see the big picture.
Key Features
- IR resolution up to 384 × 288 (Super Resolution on TK7 / TK8)
- Thermal sensitivity 40 mK (0.04 ℃)
- Temperature range up to -20 ~ 550 ℃; accuracy ±2 ℃ or ±2 %
- Manual-focus 25° lens (TK6 / TK8) or focus-free 49° wide-angle lens (TK5 / TK7)
- T-DEF® blend with 0–100 % adjustable transparency, picture-in-picture and T-TWB® histogram display
- 3.5-inch touch screen; 5 MP (TK5 / TK6) or 8 MP (TK7 / TK8) industrial digital camera
- Up to 20 spots, 10 lines and 10 areas (TK5 / TK6); full measurement-parameter compensation
- Colour alarm, hot / cold spot tracking and AnalyzIR® PC analysis software
- Wi-Fi, Bluetooth, USB-C and Micro HDMI with IRExplorer remote access (TK7 / TK8)
- Rechargeable 3.6 V 5000 mAh battery (≥4 h); IP54, 2 m drop resistant
Models
| Model | IR Resolution | Thermal Sensitivity (NETD) | FOV / IFOV | Focus | Temperature Range | Digital Camera | Accuracy |
|---|---|---|---|---|---|---|---|

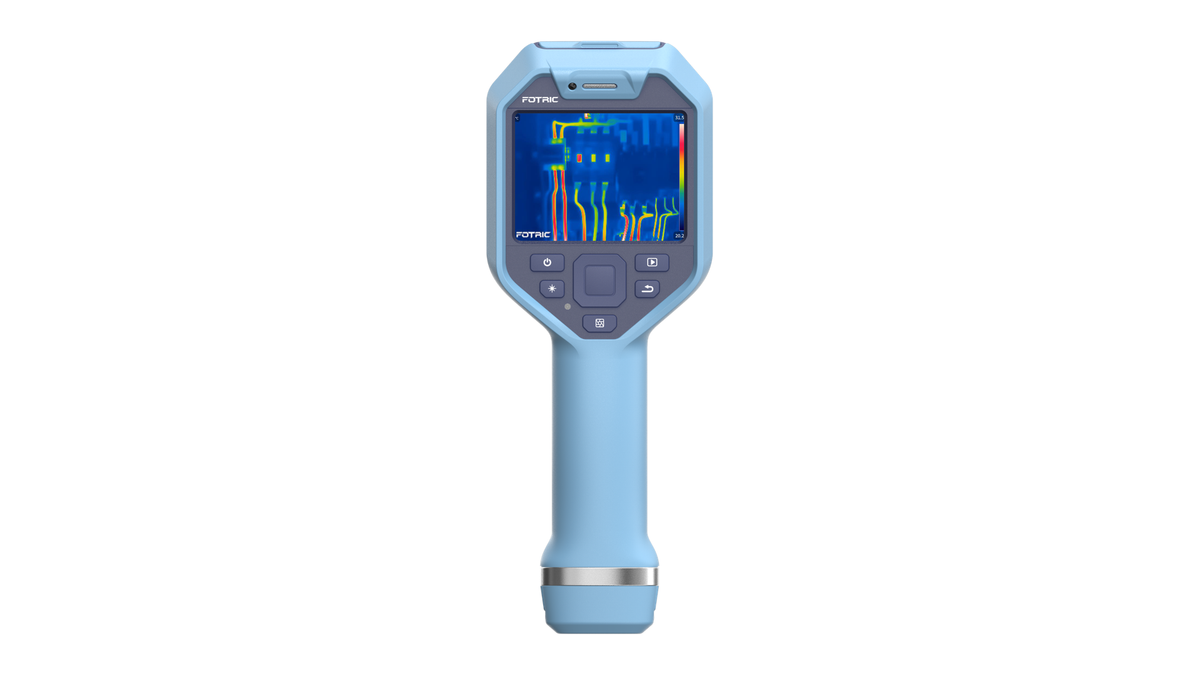

| TK5 | 320 × 240 | 40 mK @30 ℃ | 49° × 37° / 2.67 mrad | Focus free | -20 ~ 450 ℃ | 5 MP | ±2 ℃ or ±2 % |

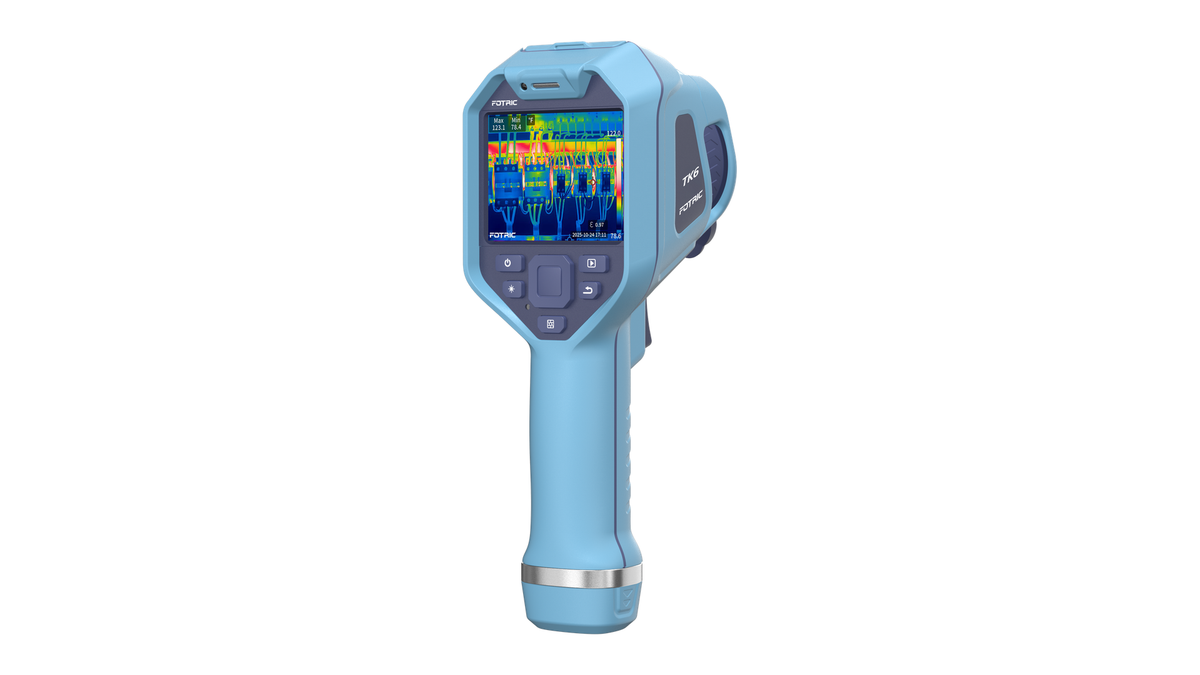

| TK6 | 384 × 288 | <40 mK @30 ℃ | 25° × 19° / 1.14 mrad | Manual | -20 ~ 550 ℃ | 5 MP | ±2 ℃ or ±2 % |

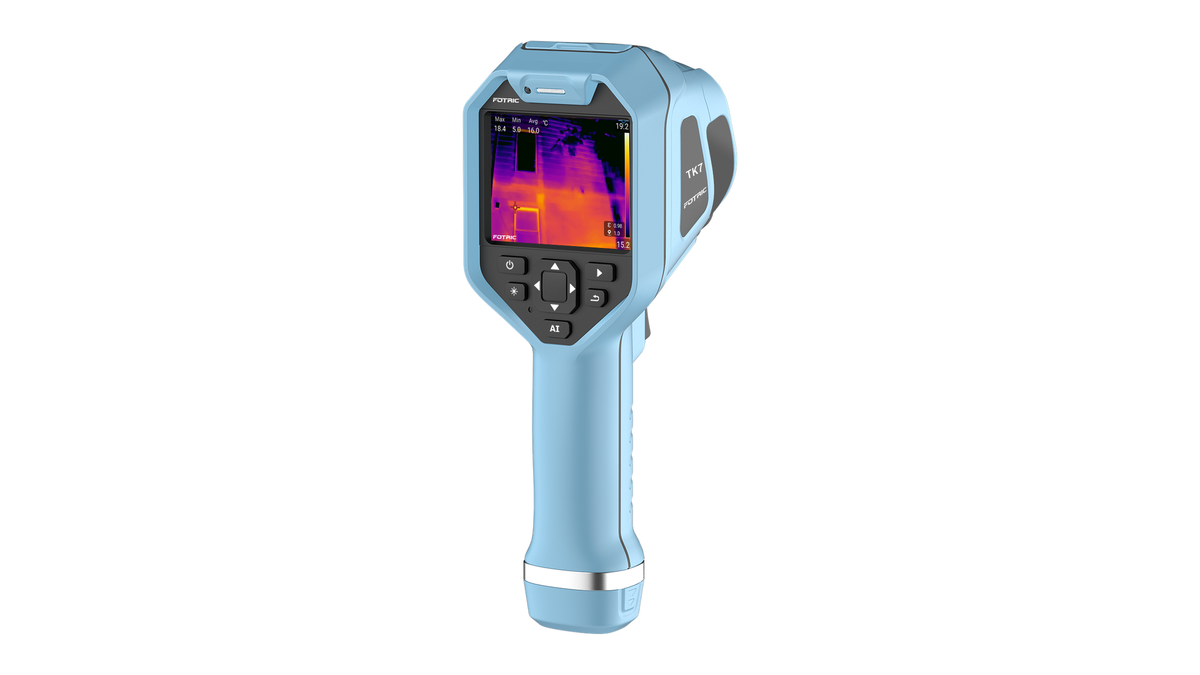

| TK7 | 384 × 288 | 40 mK @30 ℃ | 49° × 37° / 2.23 mrad | Focus free | -20 ~ 550 ℃ | 8 MP | ±2 ℃ or ±2 % |

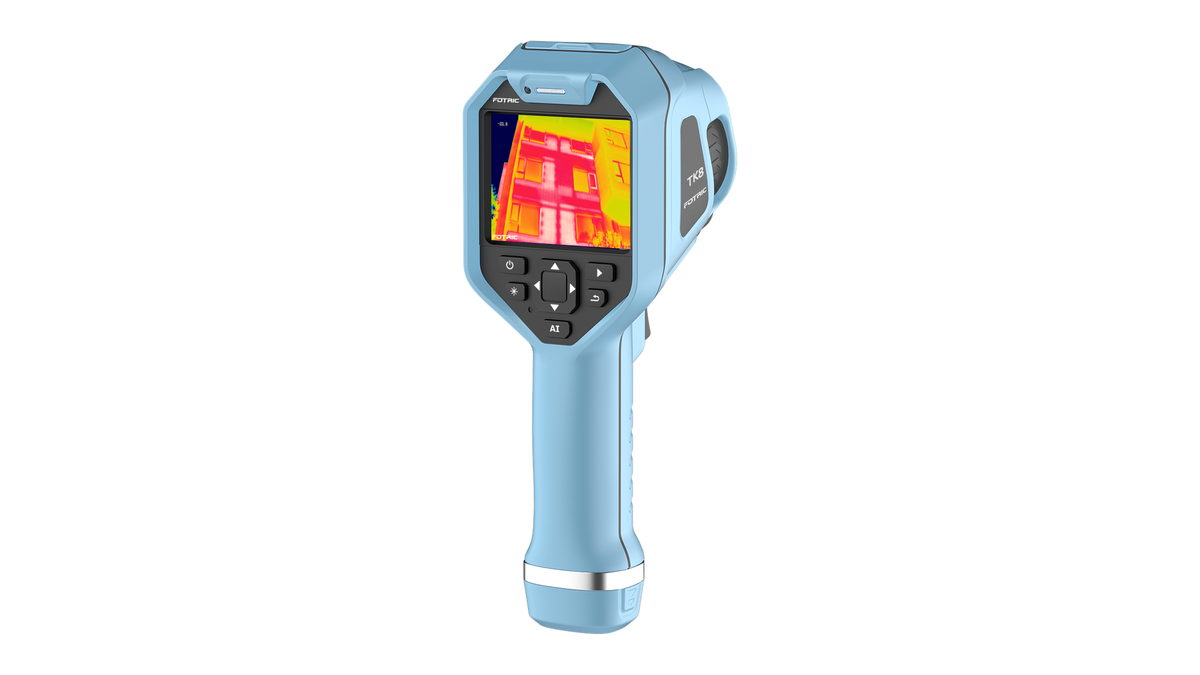

| TK8 | 384 × 288 | 40 mK @30 ℃ | 25° × 19° / 1.14 mrad | Manual | -20 ~ 550 ℃ | 8 MP | ±2 ℃ or ±2 % |
Kit Versions (TK5 Kit / TK6 Kit)
The TK5 Kit and TK6 Kit contain the same camera as the TK5 / TK6, plus:
- Durable hard carrying case and soft carrying bag
- Two 3.6 V / 5000 mAh lithium batteries (≥4 h per battery)
- Wearable tool holster for belt or tool-pouch mounting
- Extended 1.5-year warranty on the main unit
The attached datasheet is the official FOTRIC TK Series catalog (TK8 / TK7). Download the TK6 datasheet. TK5 datasheet available on request.
