V-MiX Series AcouTherm Camera

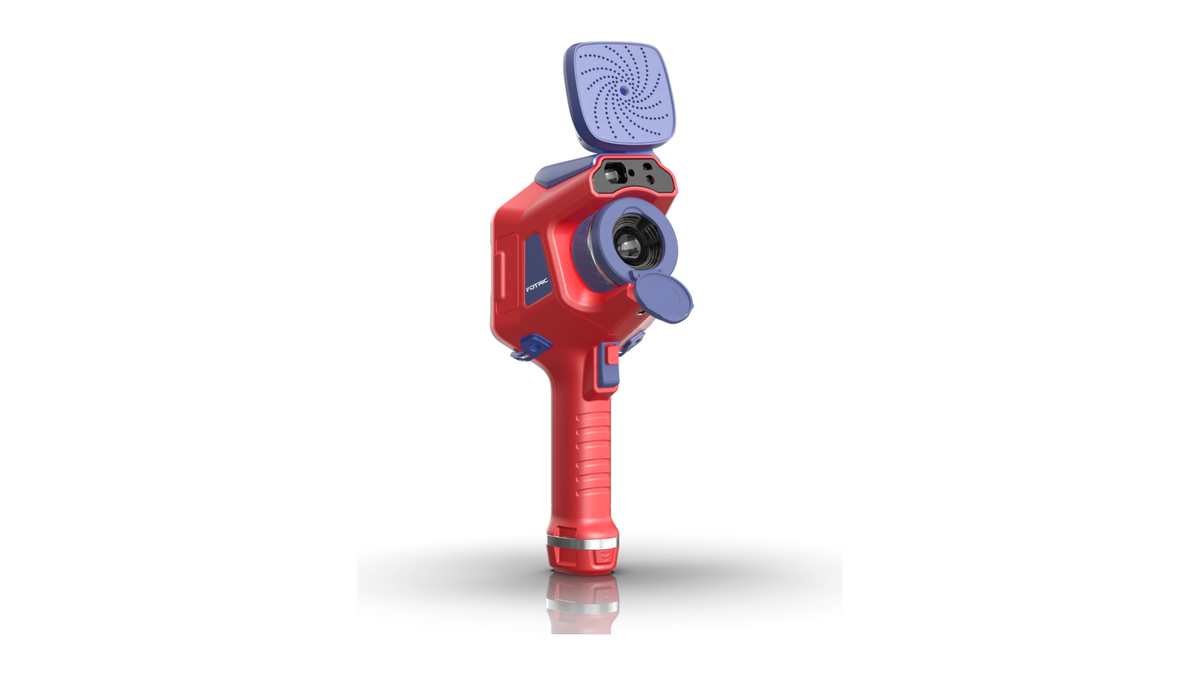

Excellence meets innovation: the FOTRIC V-MiX AcouTherm Camera combines professional thermal imaging and professional acoustic imaging in a two-in-one design. With top-notch hardware components sourced from global leaders – a 13 MP industrial digital camera, up to 162 MEMS digital microphones, a 640 × 480 infrared sensor and a 5-inch IPS LCD touch screen – the V-MiX ensures unparalleled accuracy, efficiency and reliability for industrial inspections and predictive maintenance.
Key Features
- Three adjustable modes: IR, AC (acoustic) and MiX
- IR resolution up to 640 × 480, thermal sensitivity <30 mK
- Up to 162 MEMS digital microphones; 66° × 52° acoustic FOV; 0.3–100 m working distance
- TurboFocus® intelligent focusing: contrast, laser, continuous and touch focus
- MagicThermal® AI object recognition, T-TWB® histogram display and IREdge® contour enhancement
- T-FFTD signal delay for intermittent leak, PD and vibration signals; acoustic focus to screen out noise
- Single-source, multi-source and hologram acoustic display modes
- AI-powered NaviPdM® inspection assistant and AnalyzIR® one-click reporting
- 5-inch 1280 × 720 touchscreen with Gorilla anti-explosion glass; hot-swappable SD up to 1 TB
- Lightweight 1.3 kg (including battery, without lens)
Models
| Model | IR Resolution | Thermal Sensitivity (NETD) | IFOV (25° lens) | Microphones | Acoustic FOV | Temperature Range | Accuracy |
|---|---|---|---|---|---|---|---|

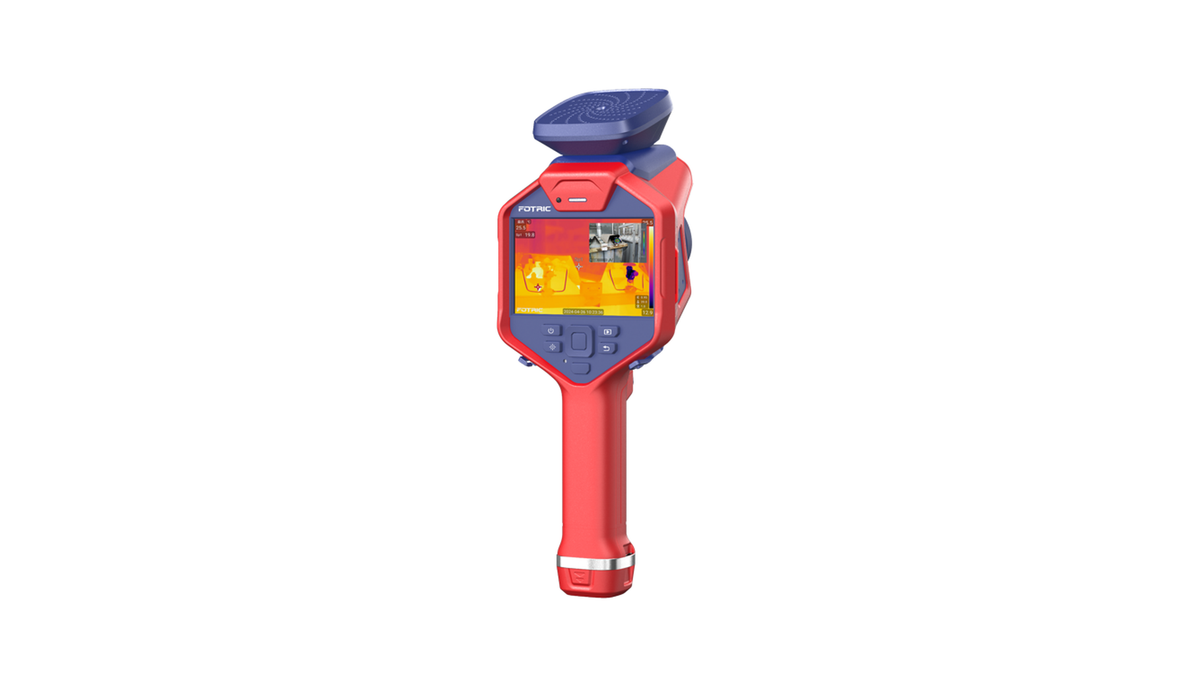

| V5MiX | 384 × 288 | <40 mK @30 ℃ | 1.14 mrad | 140 MEMS | 66° × 52° | -20 ~ 650 ℃ (extendable to 1550 ℃) | ±2 ℃ or ±2 % |

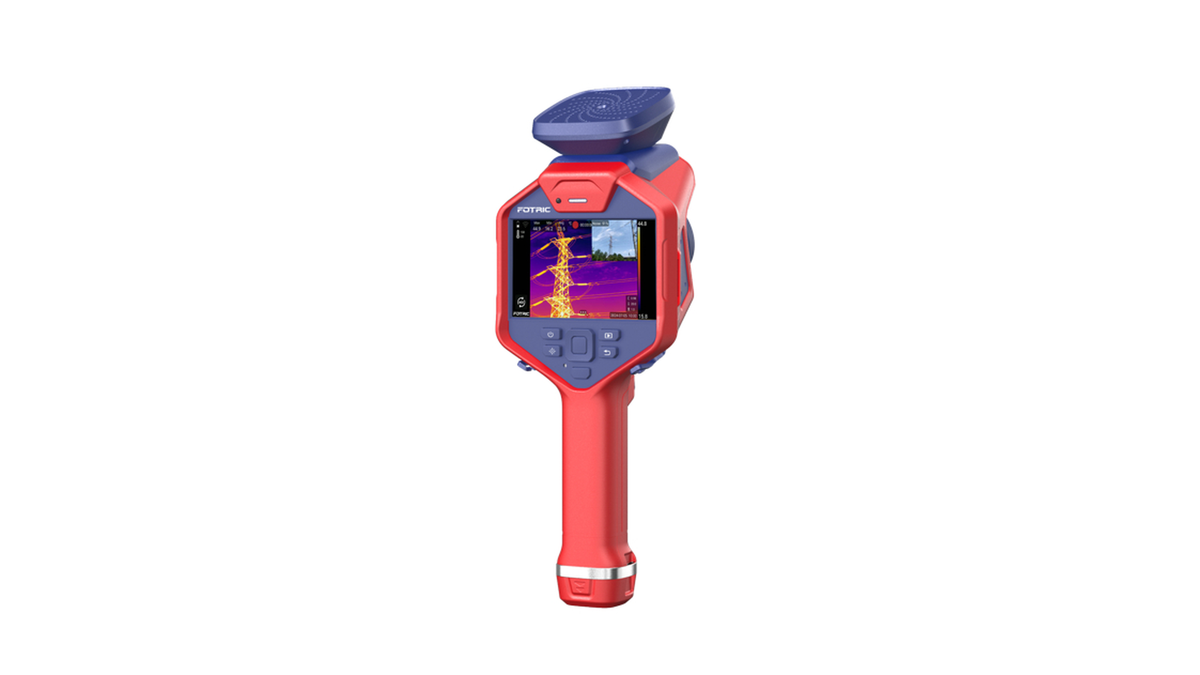

| V7MiX | 640 × 480 | <30 mK @30 ℃ | 0.68 mrad | 162 MEMS | 66° × 52° | -20 ~ 650 ℃ (extendable to 1550 ℃) | ±2 ℃ or ±2 % |
Datasheets for the V7MiX and V5MiX are available on request.
