EA Elektro-Automatik

PS 10000 3U 60V-2000V 5kW-15kW

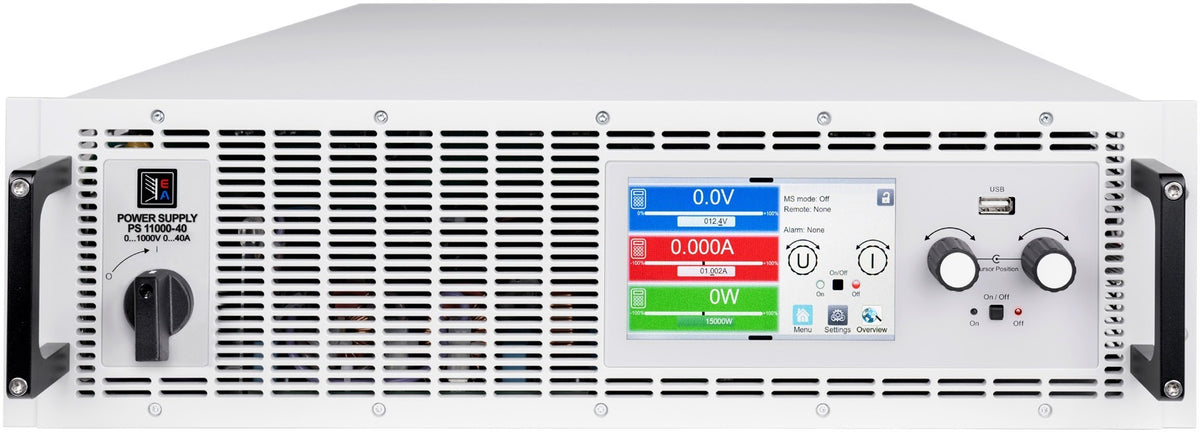

  • EA Elektro-Automatik PS 10000 3U

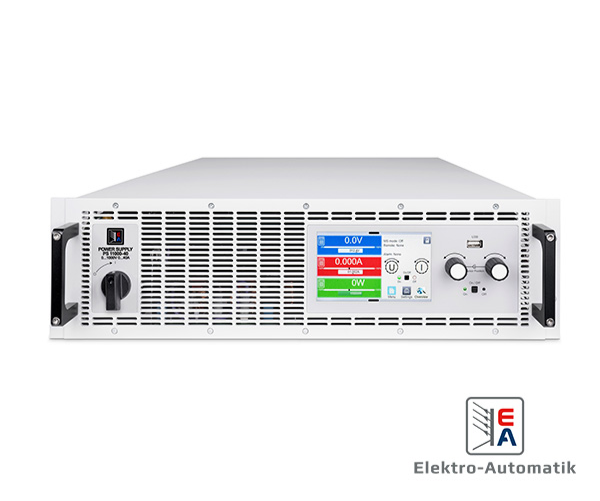

  • EA Elektro-Automatik PS 10000 3U

Key Features

  • Programmable DC power supply, 5 kW to 15 kW per 3U unit
  • Voltages 0–60 V up to 0–2000 V, currents 0–20 A up to 0–510 A
  • Autoranging output stage; CV, CC, CP and CR regulation with fast crossover
  • Digital regulation with 16-bit ADCs/DACs and selectable control speed
  • 208 V or 380–480 V AC three-phase input, active PFC typ. 0.99, efficiency up to 96%
  • 5-inch colour TFT touch panel; SCPI and ModBus, LabVIEW and IVI drivers
  • USB, Ethernet, analog and USB host built in; optional CAN, CANopen, RS232, Profibus, Profinet, EtherCAT, ModBus TCP
  • Master-slave and Share-Bus parallel operation of up to 64 units of the 10000 series
Model
Download datasheet

对这款产品感兴趣？

请留下您的联系方式，我们会尽快回复库存、报价及所需信息。

Programmable DC Power Supply PS 10000 3U Series

The PS 10000 3U series are programmable DC power supplies in a 19-inch 3U rack enclosure, delivering 5 kW to 15 kW per unit with output voltages 0–60 V up to 0–2000 V and currents 0–20 A up to 0–510 A. They share the 10000-series autoranging power stage, high-resolution digital regulation and touch-panel control of the PSI 10000, but without the function generator, which makes them a cost-effective choice for system integration, burn-in and production test where a stable, accurate DC source is needed. The 3U models listed here are the standard 208 V / 380–480 V AC versions; dedicated US208V models with their own article numbers are available on request.

Models

Model Voltage Current Power Article no.
PS 10060-170 0–60 V 0–170 A 5 kW 06230929
PS 10080-170 0–80 V 0–170 A 5 kW 06230930
PS 10200-70 0–200 V 0–70 A 5 kW 06230931
PS 10360-40 0–360 V 0–40 A 5 kW 06230932
PS 10500-30 0–500 V 0–30 A 5 kW 06230933
PS 10750-20 0–750 V 0–20 A 5 kW 06230934
PS 10920-20 0–920 V 0–20 A 5 kW 06230957
PS 10060-340 0–60 V 0–340 A 10 kW 06230935
PS 10080-340 0–80 V 0–340 A 10 kW 06230936
PS 10200-140 0–200 V 0–140 A 10 kW 06230937
PS 10360-80 0–360 V 0–80 A 10 kW 06230938
PS 10500-60 0–500 V 0–60 A 10 kW 06230939
PS 10750-40 0–750 V 0–40 A 10 kW 06230954
PS 10920-40 0–920 V 0–40 A 10 kW 06230958
PS 11000-30 0–1000 V 0–30 A 10 kW 06230955
PS 11500-20 0–1500 V 0–20 A 10 kW 06230956
PS 10060-510 0–60 V 0–510 A 15 kW 06230920
PS 10080-510 0–80 V 0–510 A 15 kW 06230921
PS 10200-210 0–200 V 0–210 A 15 kW 06230922
PS 10360-120 0–360 V 0–120 A 15 kW 06230923
PS 10500-90 0–500 V 0–90 A 15 kW 06230924
PS 10750-60 0–750 V 0–60 A 15 kW 06230925
PS 10920-60 0–920 V 0–60 A 15 kW 06230959
PS 11000-40 0–1000 V 0–40 A 15 kW 06230926
PS 11500-30 0–1500 V 0–30 A 15 kW 06230927
PS 12000-20 0–2000 V 0–20 A 15 kW 06230928

EA Elektro-Automatik is part of Tektronix. Please contact us for a quotation and lead time.
