CTA Series High-Accuracy Fluxgate Current Sensor 20–2000 A, Current Output

Key Features

DC and AC current from 20 A to 2000 A
Accuracy down to ±(50 ppm f.s. ±3 µA), 0.005%
Bandwidth up to DC–1 MHz
Fluxgate technology: excellent linearity, low offset and drift
Current output; CK05 shunt for voltage output
Powered by PS201 / PS202 / PS204 / PS208

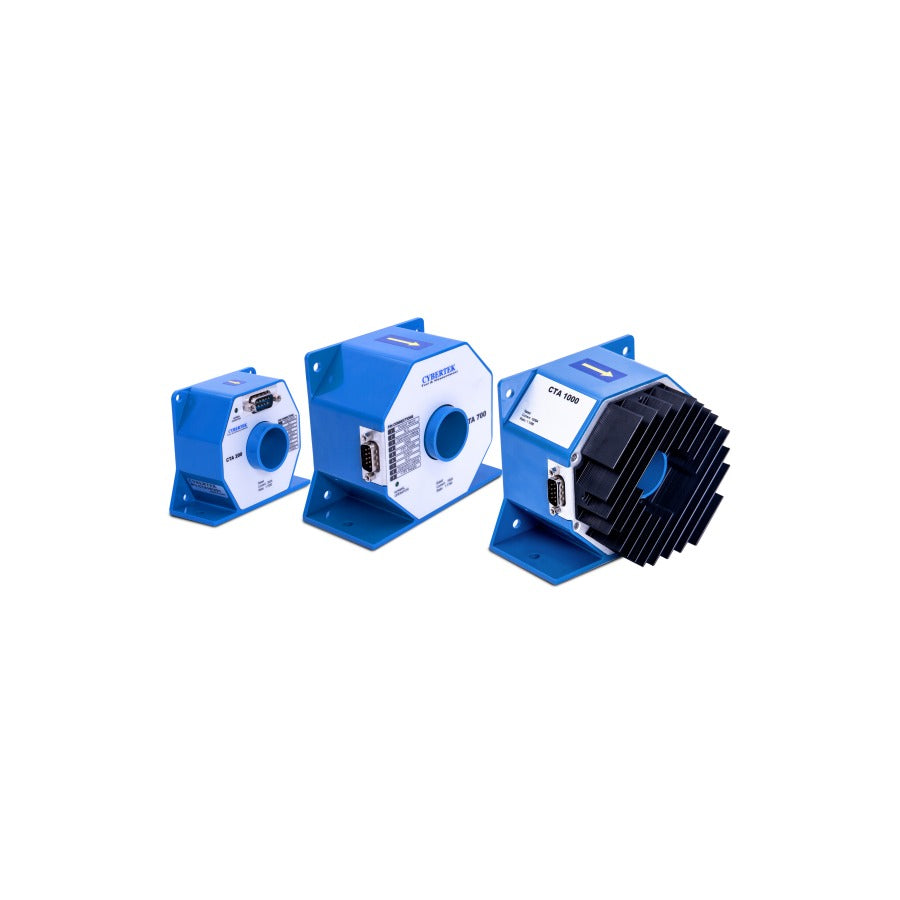

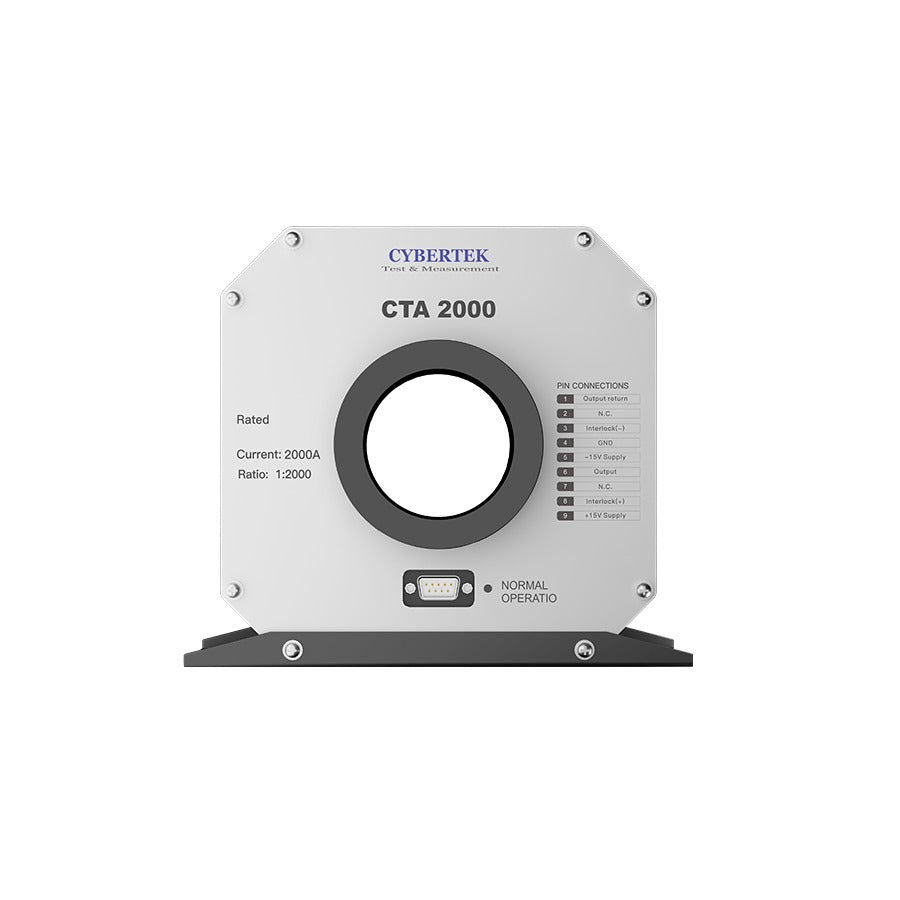

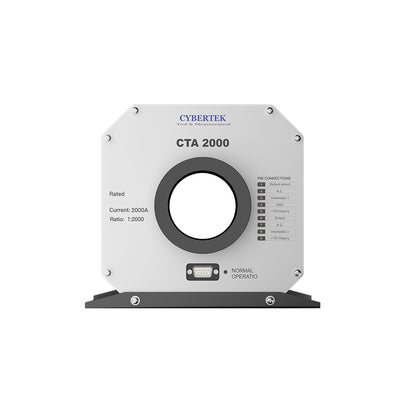

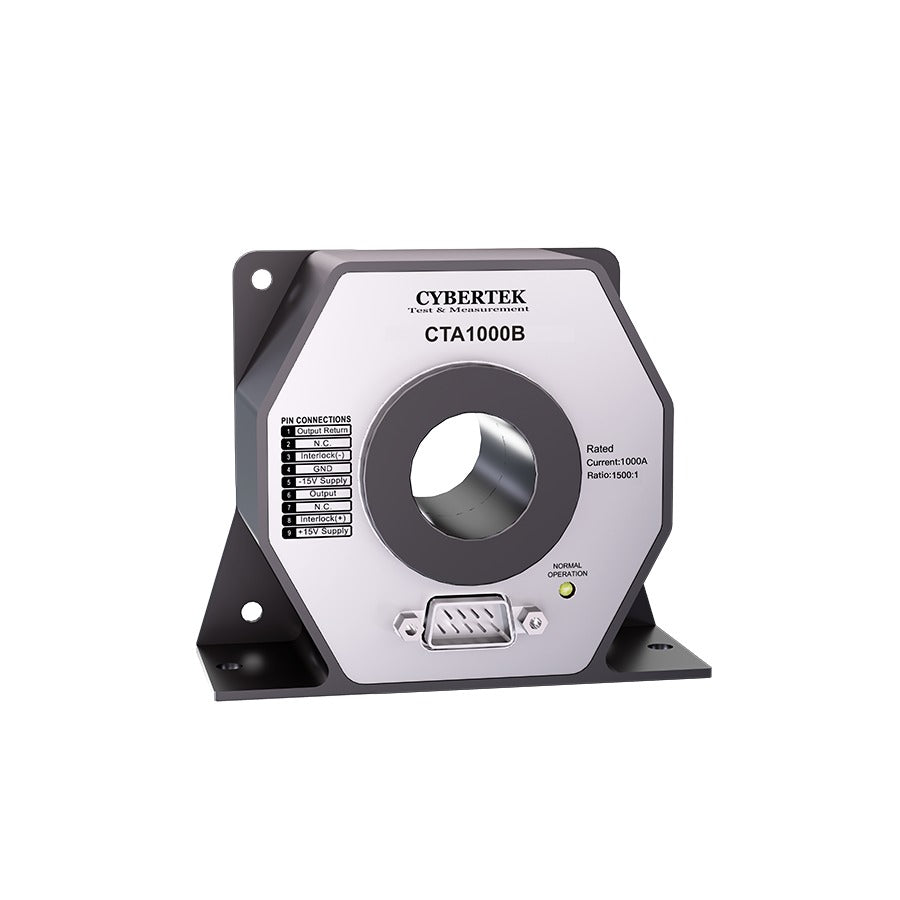

Model CTA20 CTA60 CTA200 CTA400 CTA700 CTA1000 CTA1000B CTA2000 CTA2000B

Download datasheet

对这款产品感兴趣？

请留下您的联系方式，我们会尽快回复库存、报价及所需信息。

The CTA series are ultra-high-accuracy zero-flux (fluxgate) current transducers that measure DC and AC current from 20 A to 2000 A with accuracy down to 0.005% (50 ppm) and bandwidth up to 1 MHz. Fluxgate technology gives excellent linearity, very low DC offset and temperature drift, low insertion loss, strong immunity to external fields and low noise.

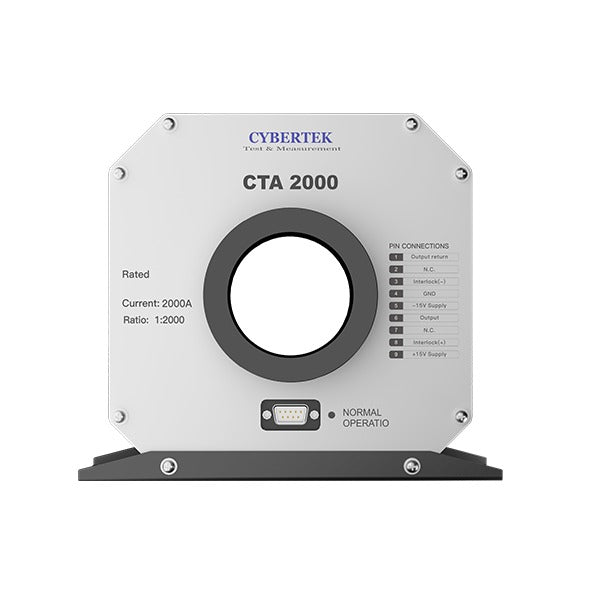

The primary conductor passes through the sensor aperture, and the secondary current output feeds a power analyzer, precision DMM or, through the CK05 precision shunt, an oscilloscope or DAQ. The sensors are powered by the PS200 series supplies. Typical uses are high-accuracy current feedback, calibration, energy measurement, medical equipment and EV electronics.

Models & Specifications

Common Specifications

Specification	Value
Output	Current output (use CK05 shunt for voltage)
Power Supply	±15 V from PS201/PS202/PS204/PS208

Model Comparison

Model	CTA20	CTA60	CTA200	CTA400
Rated Current (RMS)	20 A	42 A	141 A	282 A
Max. Current (DC / Peak)	28 A	60 A	200 A	400 A
Bandwidth	DC–1 MHz	DC–800 kHz	DC–500 kHz	DC–100 kHz
Accuracy	≤ ±(100ppm f.s. ±5 µA) (0.01%)	≤ ±(100ppm f.s. ±5 µA) (0.01%)	≤ ±(100ppm f.s. ±5 µA) (0.01%)	≤ ±(100ppm f.s. ±5 µA) (0.01%)
Current Transfer Ratio	1:200	1:600	1:1000	1:2000

Model	CTA700	CTA1000	CTA1000B	CTA2000
Rated Current (RMS)	495 A	707 A	707 A	2000 A
Max. Current (DC / Peak)	700 A	1000 A	1000 A	2800 A
Bandwidth	DC–100 kHz	DC–500 kHz	DC–400 kHz	DC–140 kHz
Accuracy	≤ ±(50ppm f.s. ±3 µA) (0.005%)	≤ ±(50ppm f.s. ±3 µA) (0.005%)	≤ ±(50ppm f.s. ±3 µA) (0.005%)	≤ ±(50ppm f.s. ±3 µA) (0.005%)
Current Transfer Ratio	1:1750	1:1000	1:1500	1:2000

Model	CTA2000B
Rated Current (RMS)	2000 A
Max. Current (DC / Peak)	2800 A
Bandwidth	DC–140 kHz
Accuracy	≤ ±(50ppm f.s. ±3 µA) (0.005%)
Current Transfer Ratio	1:2000
