WT1800R

  • Make measurements you can trust with a guaranteed accuracy of *0.03%
  • 10MS/s, 1MHz power bandwidth, 18 bit resolution enabled by Yokogawa isoPRO™ fiber optic isolation technology
  • Simultaneously analyze 7 phases with one chassis, producing over 1000 power parameters real-time
  • Precision current measurement guaranteed by innovative symmetric coaxial shunt design
    *basic power accuracy
  • Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis

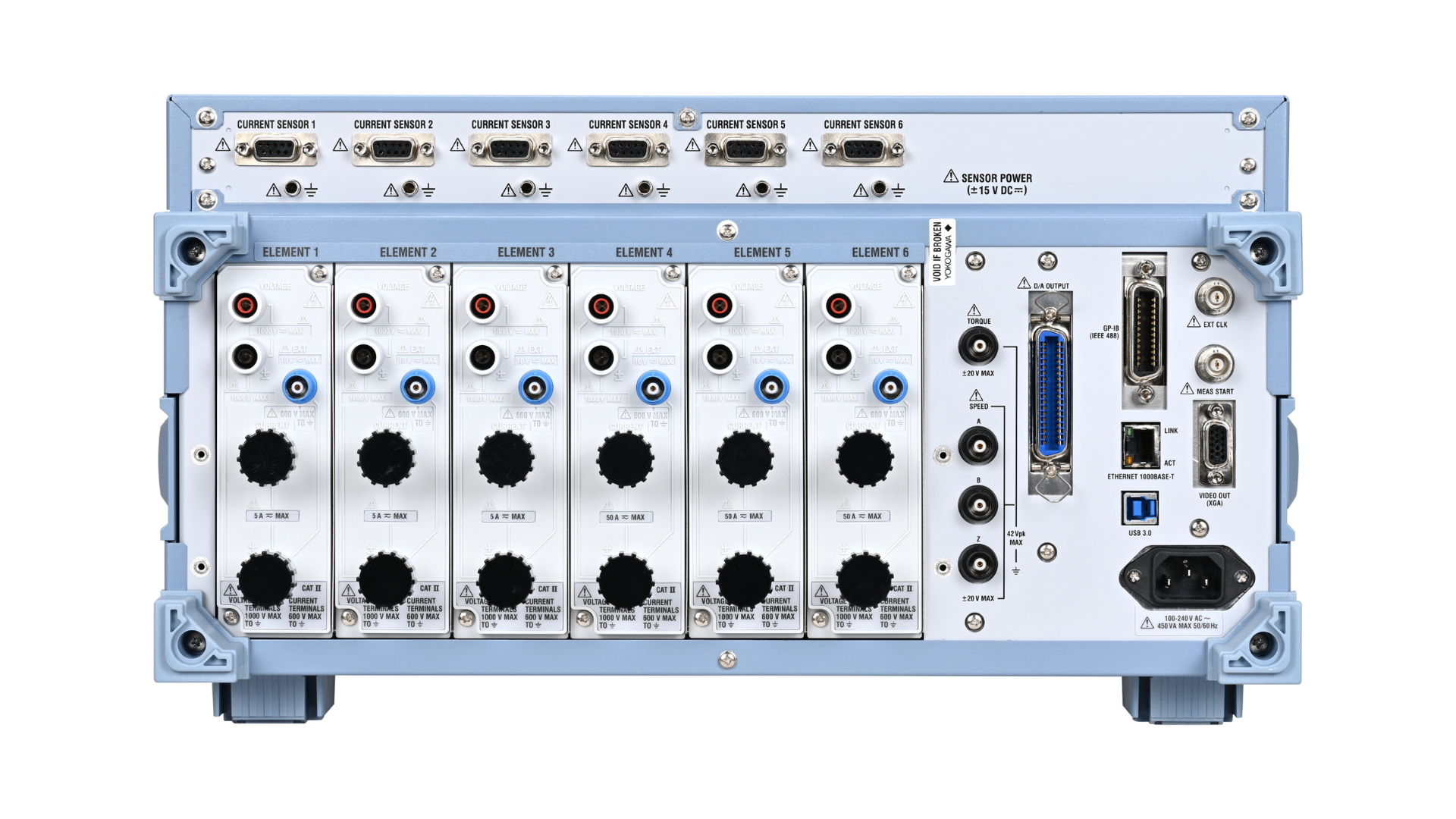

  • Modular architecture with 7 user swappable and reconfigurable input elements
  • High-accuracy element, built-in DC power supply, enables both easy wiring and reliable high-precision, large-current measurements
  • Up to 10ms data update, up to 50ms data update when using data streaming
  • Follows frequency fluctuations in input signals by auto update mode
  • Synchronize multiple chassis for large multi-phase systems
  • For motors and generators up to 4 speed and torque inputs** can be used measuring total system efficiency
  • Isolate and measure harmonic losses with configurable advanced filtering for simultaneous wideband and harmonic power analysis
    **can be configured as auxiliary inputs
  • Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis
Channels

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

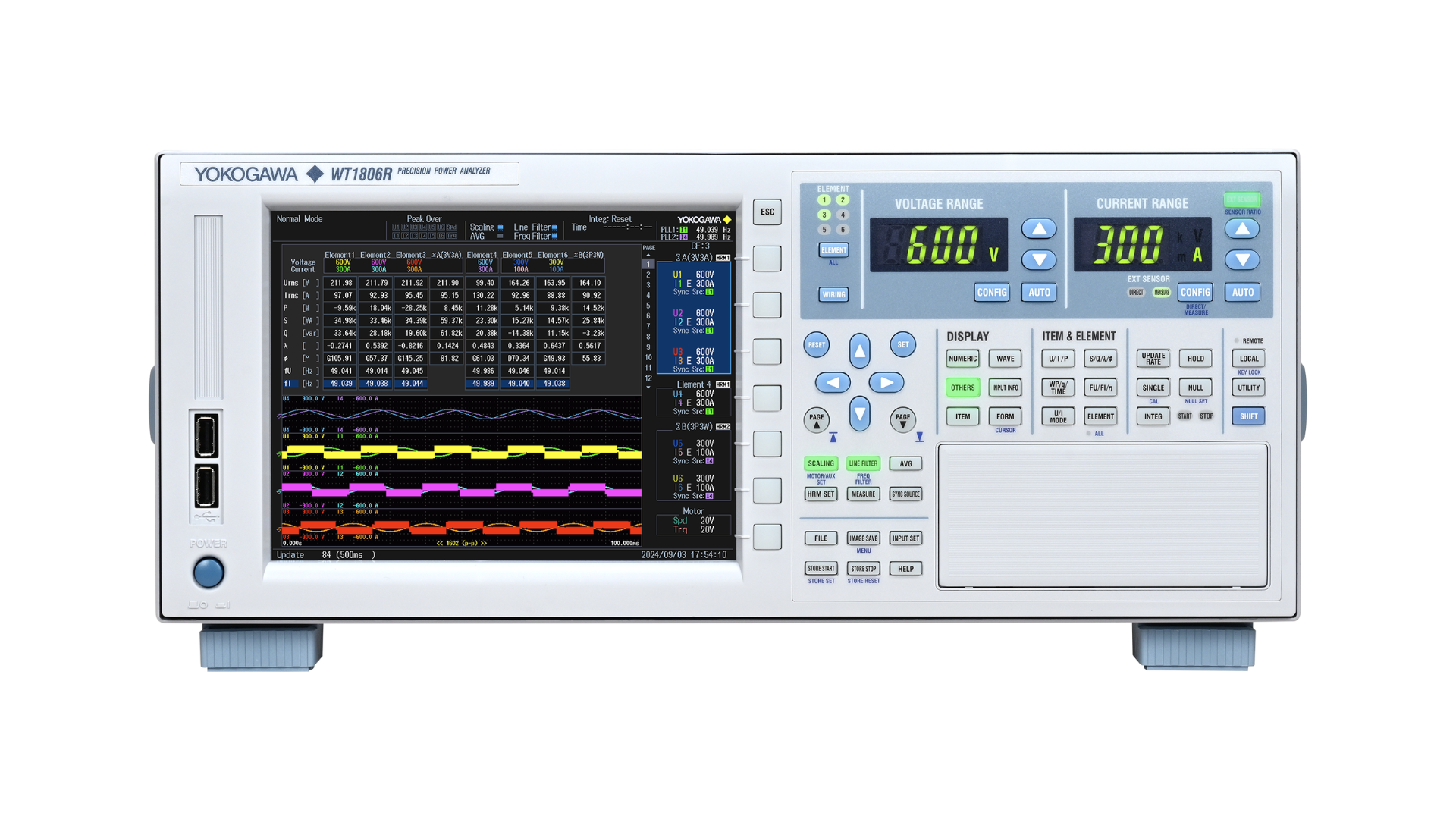

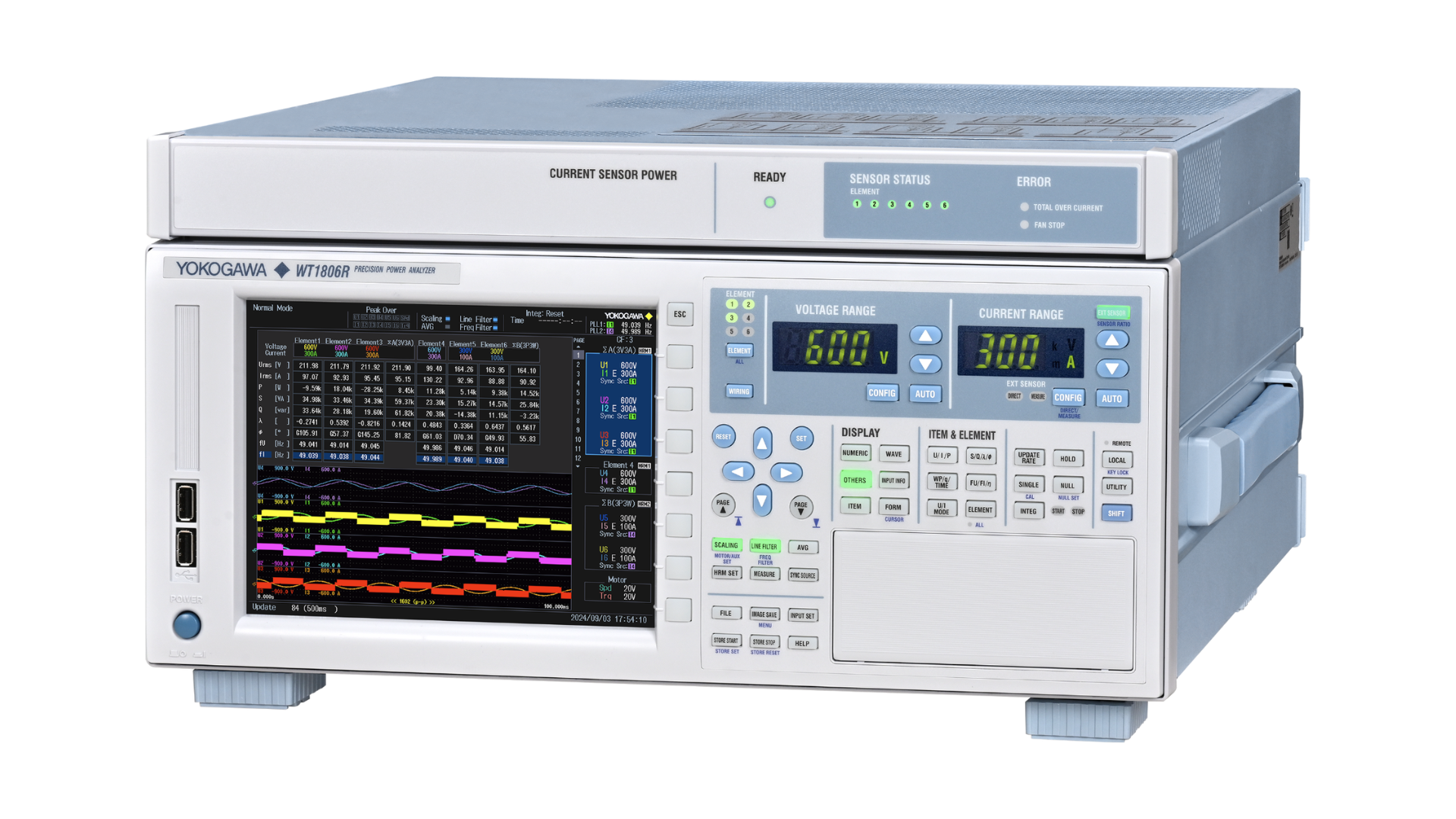

WT1800R High-Performance Power Analyzer

Versatility to Bring Innovative Technologies to Market

With the growing focus on generating and converting power more efficiently, the use of renewable energy sources like solar and wind is expanding. Alongside these trends, rapid advances in electric vehicles and energy-efficient technologies make precise measurements essential to detect even the smallest energy losses. Whether analyzing multiphase inputs during motor and drive design or meeting stringent efficiency standards for photovoltaic inverters, the WT1800R high-performance power analyzer offers engineers a precise and reliable tool to measure power, quality, and efficiency
