Fotric

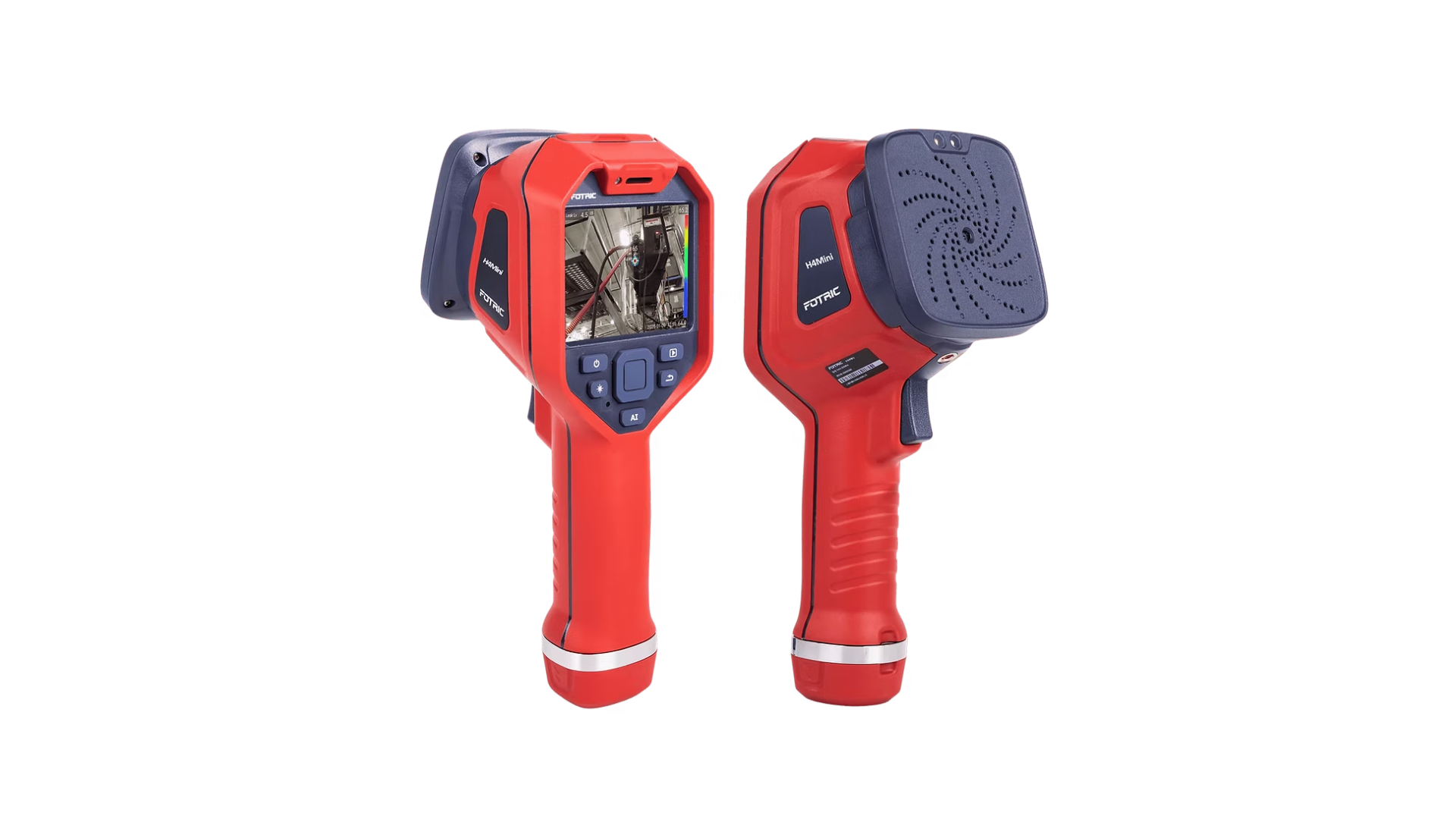

H4 mini 112ch
H4 mini 112ch
Couldn't load pickup availability
|
Microphone Channel |
112 MEMS Digital Microphones
|
|
Acoustic Image Field of View (FOV) |
66° *52°
|
|
Sound Sampling Rate |
200kHz
|
|
Acoustic Refresh Rate |
25Hz
|
|
Operating Distance |
0.3~100m
|
|
Frequency Range |
2~100kHz
|
|
Detection Mode |
Leakage mode: display leakage level on device
|
|
Display Screen |
3.5-inch, 640 x 480 pixels, IPS LCD touch display
|
|
Display Screen
|
3.5-inch, 640 x 480 pixels, IPS LCD touch display with Gorilla Glass explosion-proof cover
|
|---|---|
|
Image Modes
|
Single-source mode, multi-source mode, hologram mode
|
|
Digital Camera
|
13 Megapixels, Industrial-Grade Digital Camera
|
|
Size
|
243mm*95mm*150mm
|
|
Weight
|
770g
|
|
Acoustic Image Focus
|
Masks surrounding areas, focus only on the acoustic image of the focused area |
|
On-device Analysis
|
The device is capable of directly analyzing acoustic images
|
|
Gray Scale Background
|
Display digital camera images in grayscale
|
|
Favorites
|
Click the favorite button to save the favorite status to acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status
|
|
Storage Card
|
TF card, hot-swappable, maximum support 1TB |
| Battery Operating Time |
Actual usage time depends on environmental and usage conditions
|
|
Battery Type
|
3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable
|
|
Supported Languages
|
English, Traditional Chinese, Spanish, Korean, German, Portuguese, Italian, French, Thai
|
|
Standard Configuration
|
Acoustic imaging camera main unit, rechargeable lithium battery * 1, power adapter, USB Type-C to USB cable, 32G TF card, wrist strap, document bag (packing list, quick start guide), outer packaging box |
|
Size |
243mm*95mm*150mm
|
|
Weight |
770g
|
|
Acoustic Image Delay (T-FFTD®) |
Captures instantaneous sound signals, can stay longer in real-time acoustic image
|
|
Acoustic Image Focus |
Masks surrounding areas, focuses only on the acoustic image of the focused area
|
|
On-device Report Generation |
The device is capable of directly generating acoustic image reports.
|
|
Gray Scale Background |
Display digital camera images in grayscale.
|
|
Favorites |
Click the favorite button to save the favorite status to acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status in the gallery.
|
|
QR Code Scanning |
Scan QR code or Bar code for text annotation and tag table.
|
|
Battery Type |
3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable
|
