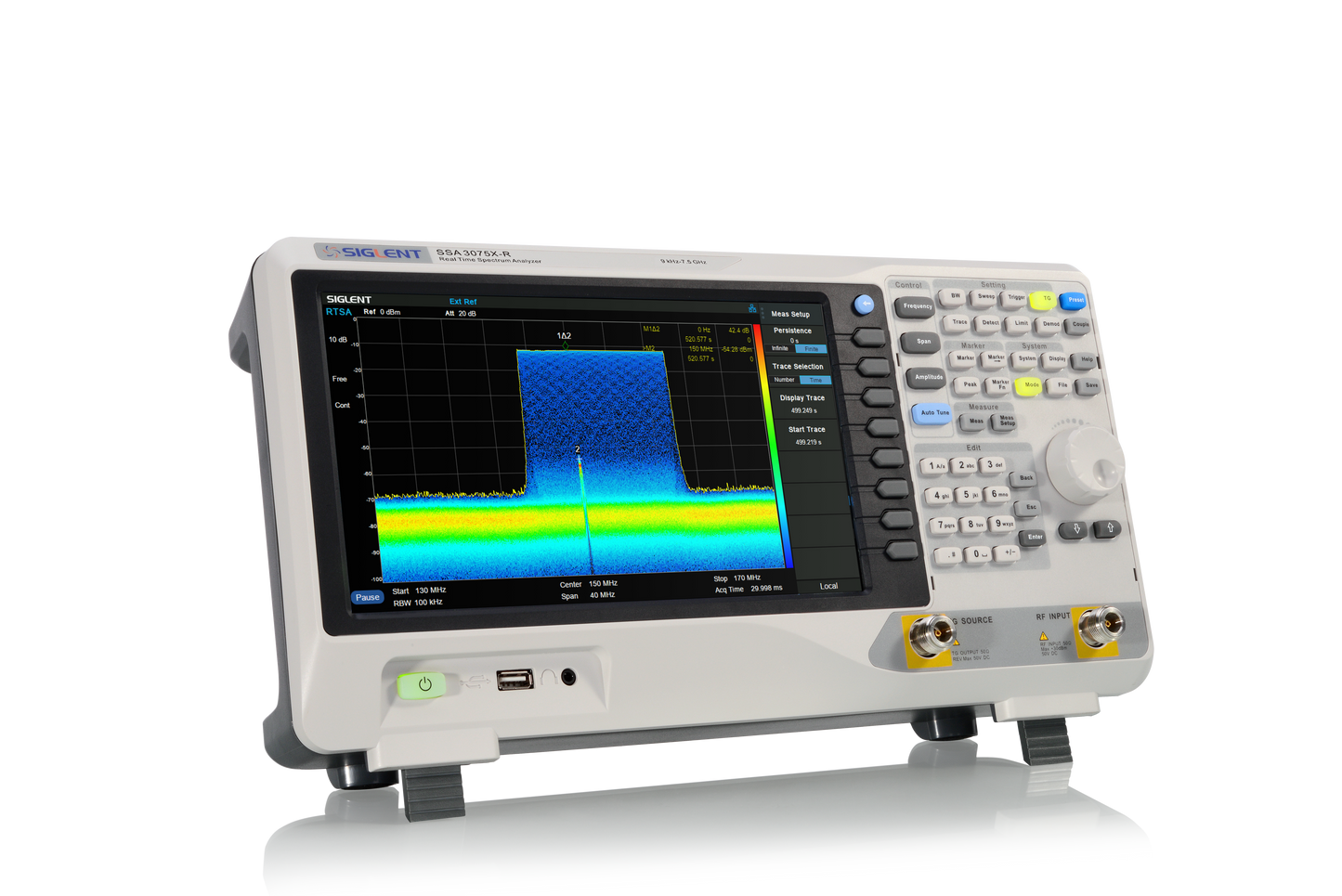

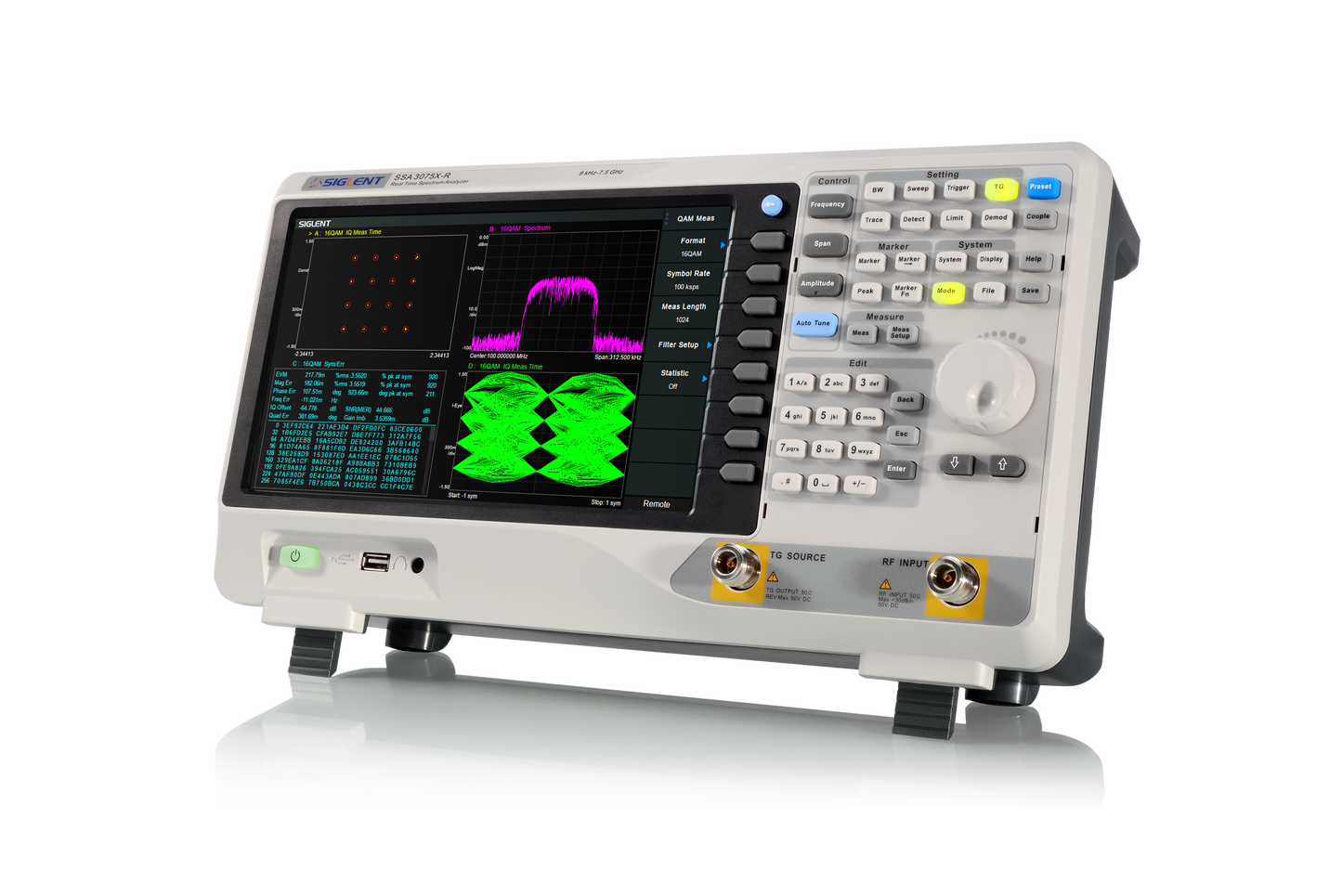

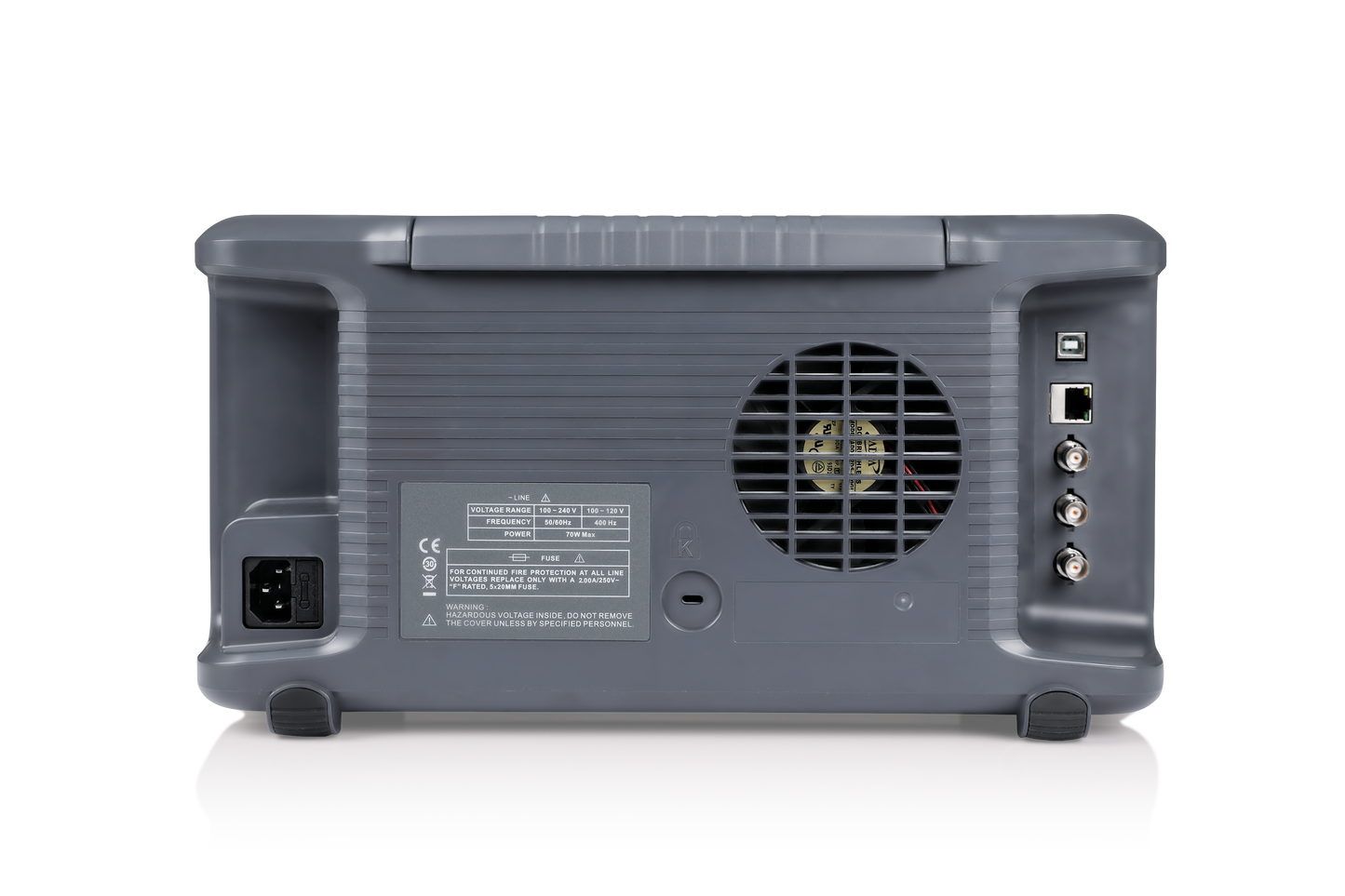

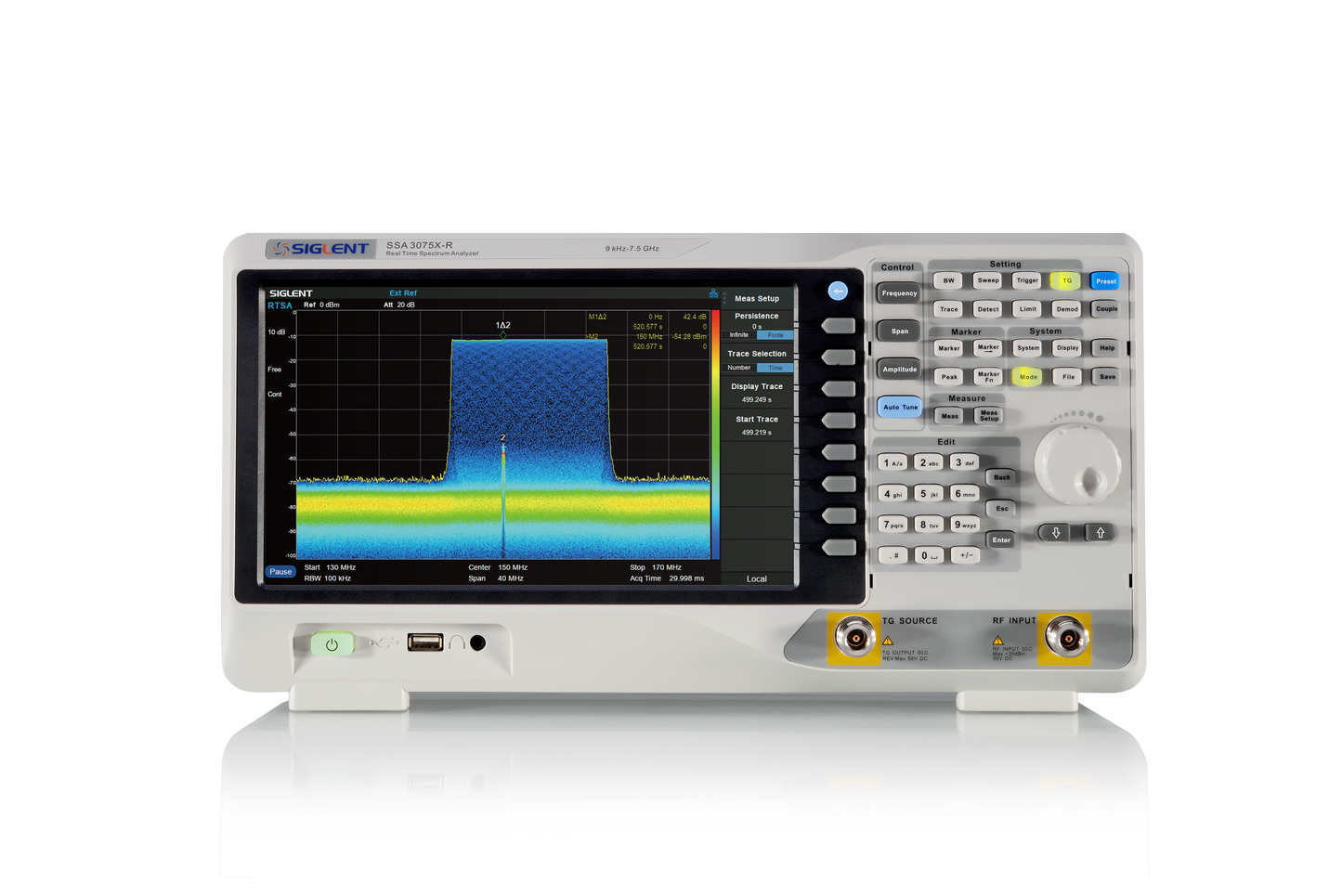

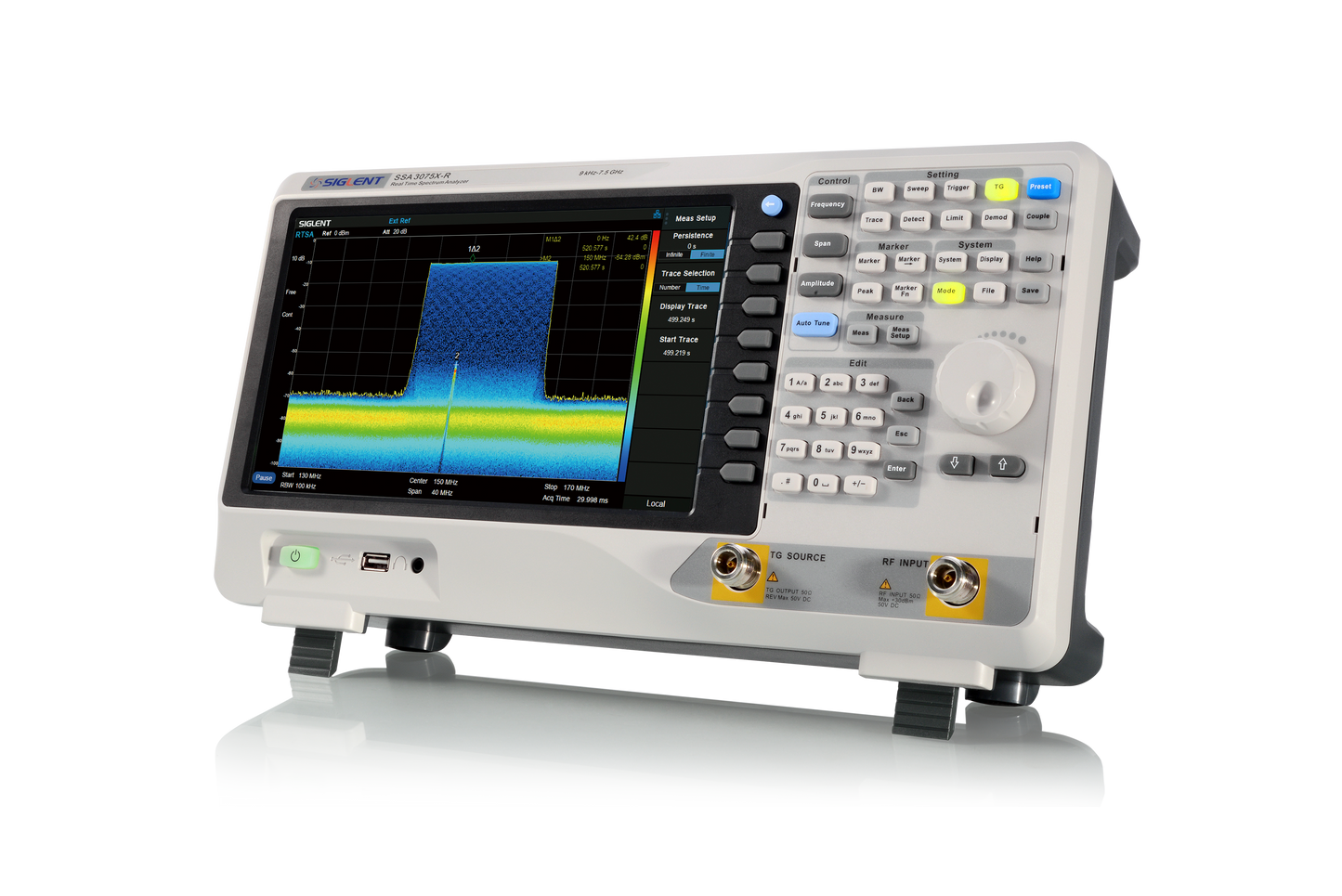

SSA3032X-R 9kHz~3.2GHz -165dBm/Hz

Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz

Now with VNA and DTF functions, free!

-165 dBm/Hz Displayed Average Noise Level (Typ.)

-98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)

Level Measurement Uncertainty < 0.7 dB (Typ.)

Up to 40 MHz Real Time Analysis Bandwidth Option

Minimum Signal Duration with 100% POI, 7.2 us

Web Browser Remote Control on PC and Mobile Terminals and File Operation
