High dynamic: dynamic response time of 100 μs level
Voltage and current accuracy to mV/mA level
Digital matrix parallel system achieves capacity expansion without reducing accuracy
Power resolution up to 1W, efficiency calculation more real
Comprehensive coverage of PV simulation source, battery testing, battery simulation, automotive standard testing and other industry research and development, pilot test, production line applications
High accuracy: up to 6-and-a-half-digit given and measurement system; with voltage and current accurate to mV/mA level
High power density：3U/30kW07Larger width and height than touch screen, display more content

Leave your email

We will provide the quotation ASAP.

Bidirectional DC Programmable Power Supply

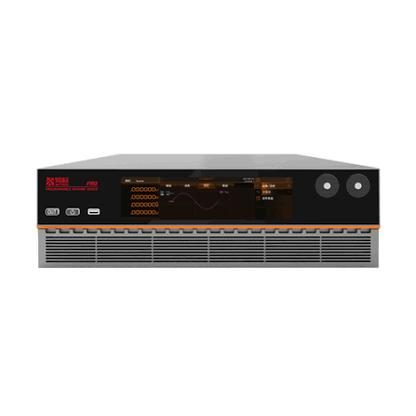

Name: PRD 40V-2000V 15kW-30kW
Brand: NP LAB
Availability: OutOfStock

PRD

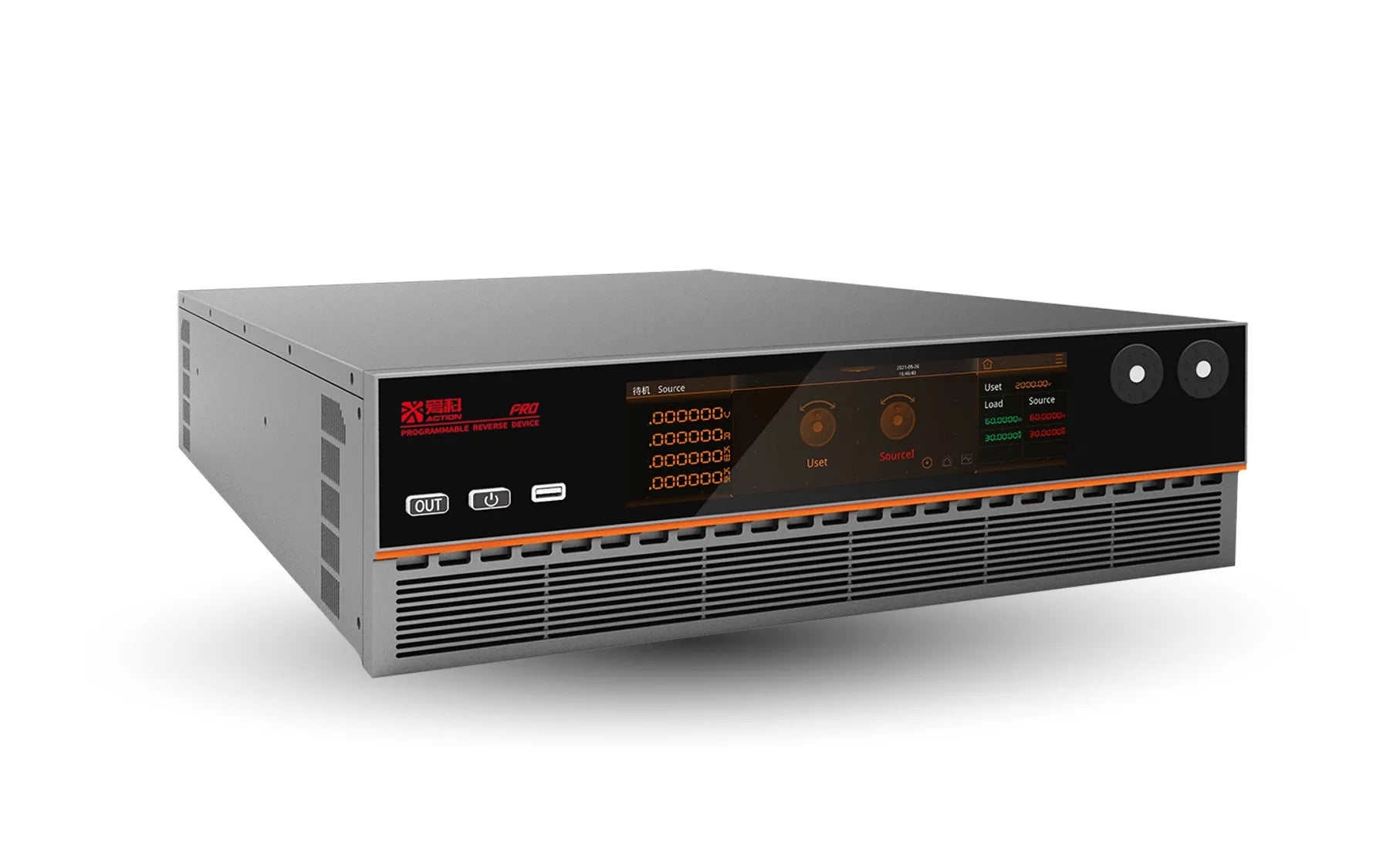

The PRD series bi-directional programmable DC power supply is a power supply with source and load function, automatic two-quadrant operation and the ability to absorb energy from unit under test (UUT) and feedback to the grid. It is widely used in PV inverters, energy storage system, solar panel simulation and energy storage battery/capacitor simulation in PV/storage inverter system. Also suitable for electric vehicles on-board charger, DC/AC motor drivers, bi-directional DC converter simulation battery testing and other applications.

Built-in independent high-precision voltage and current measurement system, sophisticated programming concept. The dynamic characteristics, which are as fast as microseconds, take DC product testing to a whole new level and allow the simulation of abnormal field conditions in the laboratory.
