P6021A 10.6Arms 60 MHz

The P6021 and P6022 Current Probes provide versatile AC current measurements. Both probes provide accurate current measurements over a wide range of frequencies. The P6021 and P6022 allow current measurements without breaking the circuit by clipping onto the current carrying conductor. Shielded probe heads are not grounded when the slides are in their open positions, eliminating accidental grounding of the circuit under test.

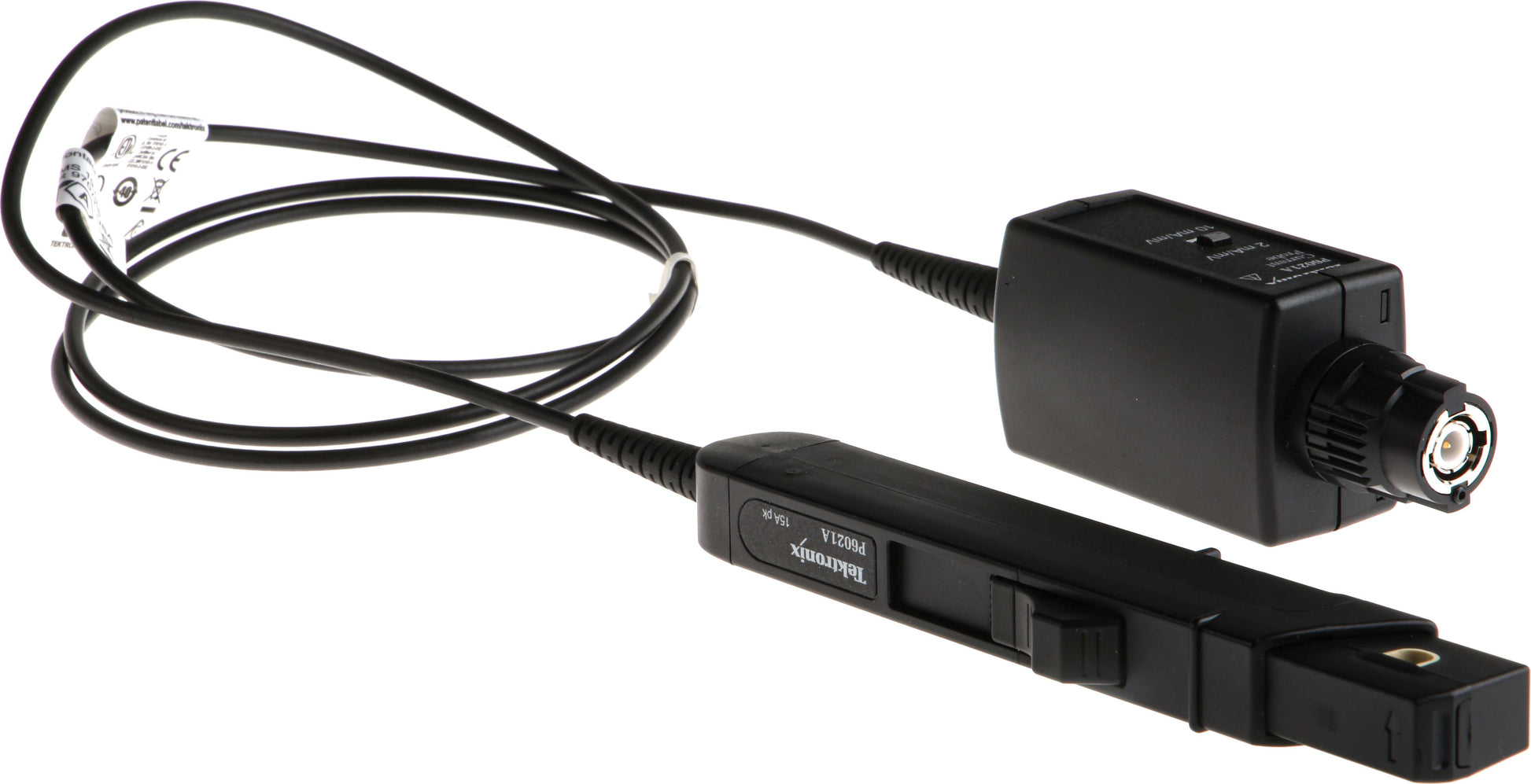

P6021A

For general purpose applications, the P6021A provides wide-band performance with excellent low-frequency characteristics. Bandwidth is 120 Hz to 60 MHz. The probe range is switchable between 2 mA/mV and 10 mA/mV.

Key performance specifications

• P6021A
• • 120 Hz to 60 MHz
  • 10.6 A RMS, 250 A peak, 10 mA sensitivity
• P6022
  • 935 Hz to 120 MHz
  • 2.12 A RMS, 100 A peak, 1 mA sensitivity
