MSO6B

Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP058 probe

Bandwidth
1, 2.5, 4, 6, 8, 10 GHz

Sample Rate
50 GS/s on 2 analog channels
25 GS/s on 4 analog channels
12.5 GS/s on > 4 analog channels

Record Length
Up to 1 Gpoints on 4 channels
Up to 500 Mpoints on > 4 channels

Signal Generator
13 standard waveform types, plus arbitrary

Digital Voltmeter
4 digit

Trigger Frequency Counter
8 digit

Display
15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution Capacitive (multi-touch) touchscreen

Bandwidth
Channels

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

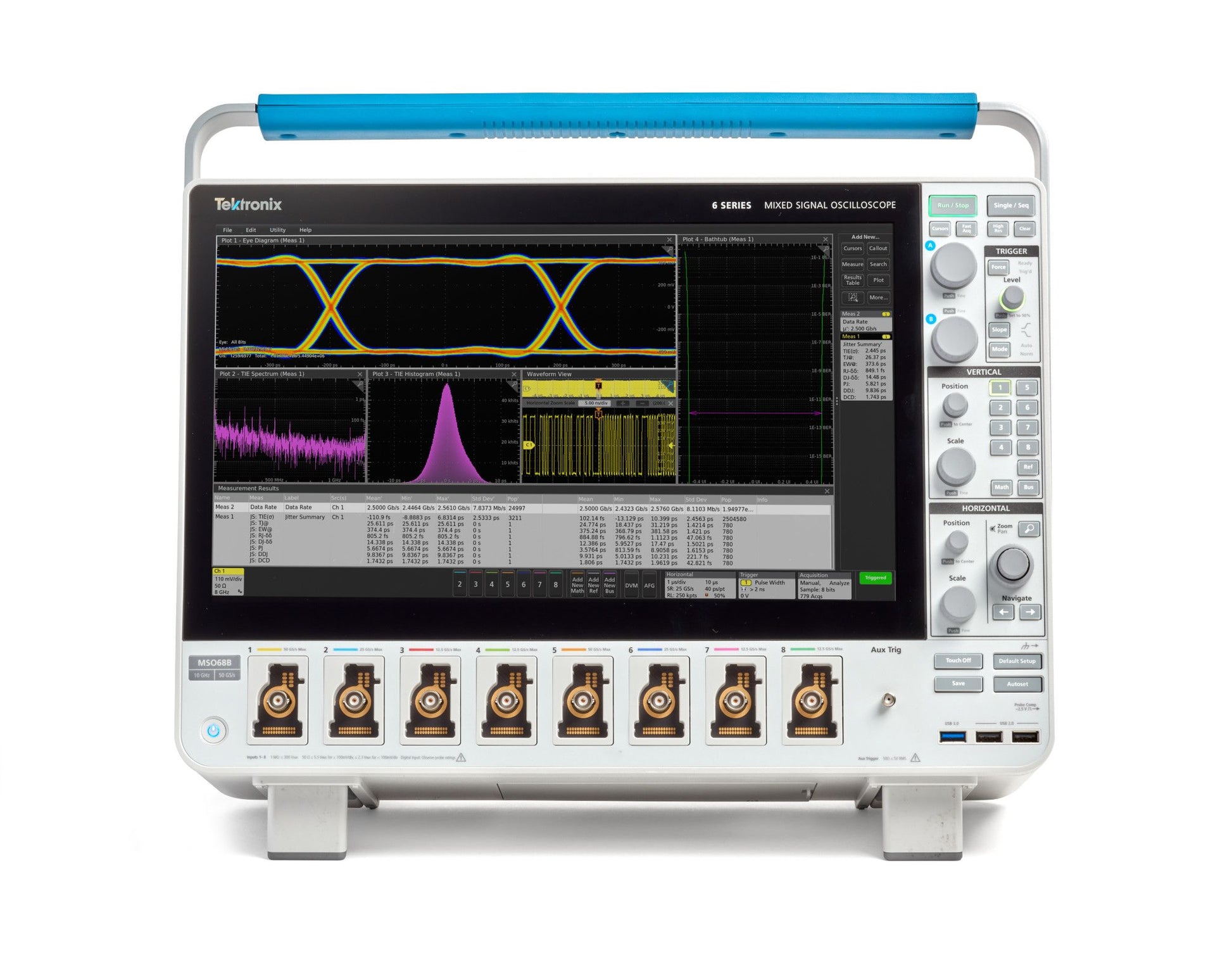

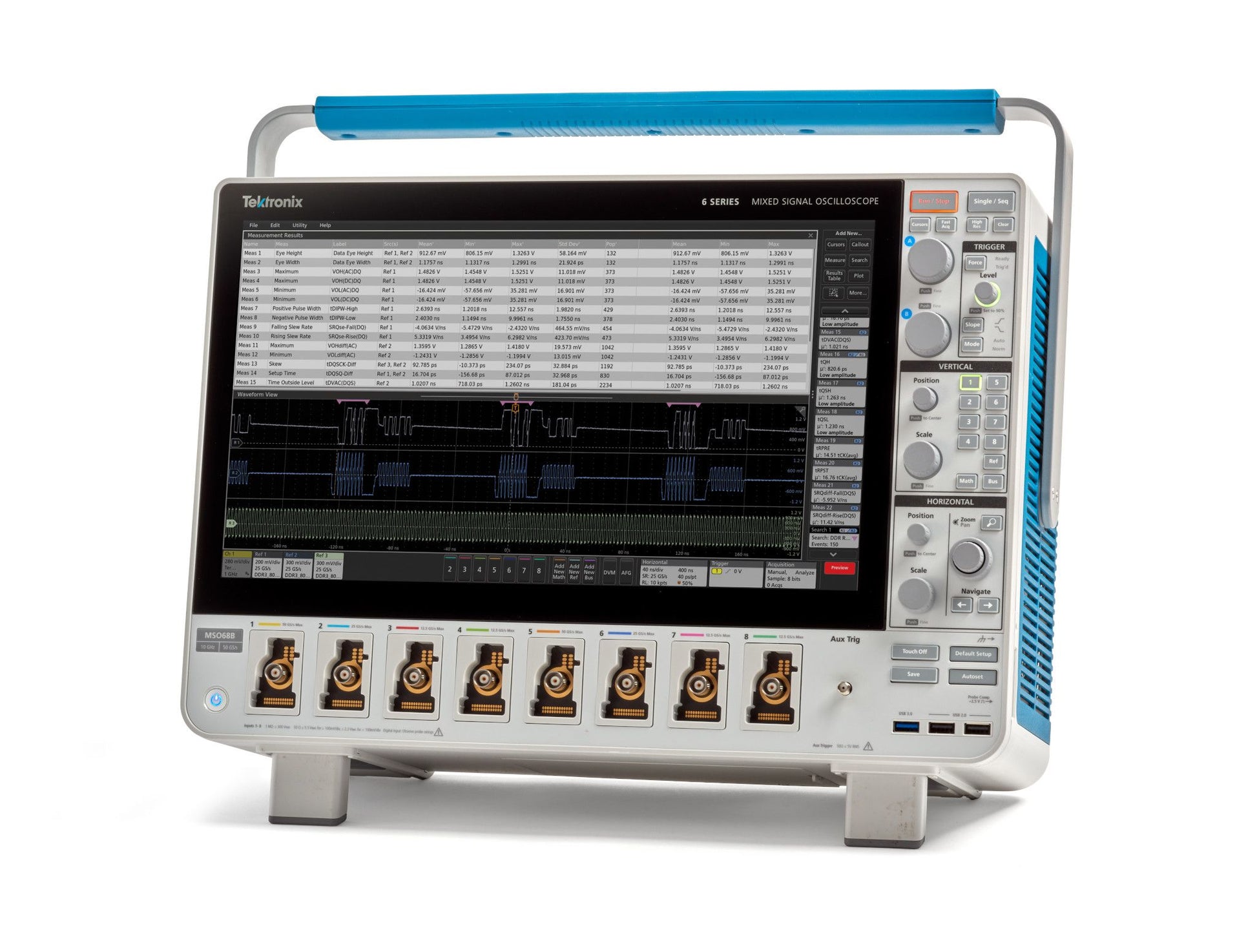

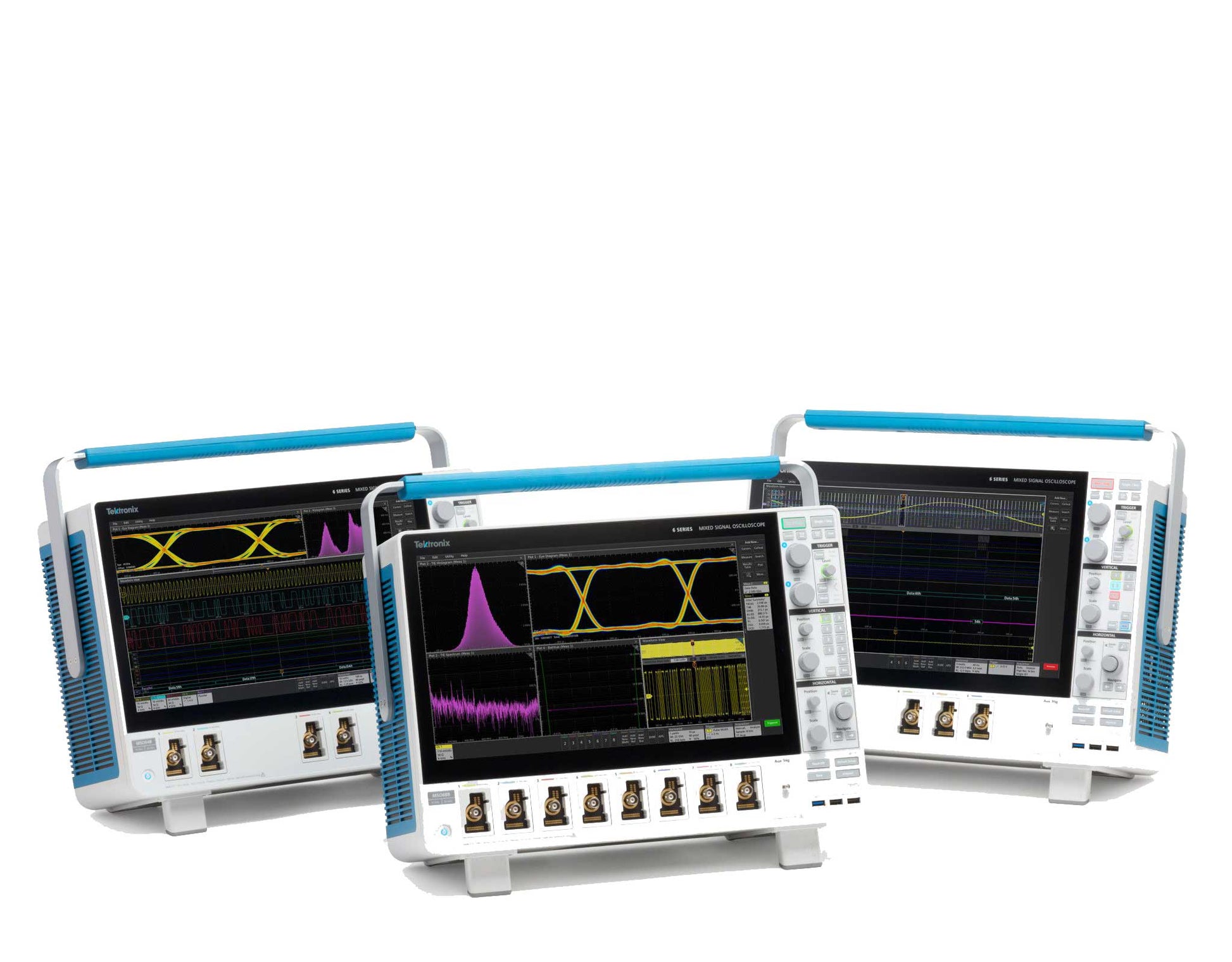

6 Series B MSO Mixed Signal Oscilloscope

Troubleshoot and validate high-speed designs with bandwidth that starts at 1 GHz and goes up to 10 GHz . Get accurate measurements with low noise and sample rate up to 50 GS/s . See more of your design with 6- and 8-channel models.
