Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP058 probe
Auxiliary trigger input

Bandwidth
350 MHz, 500 MHz, 1 GHz, 2 GHz

Sample Rate
6.25 GS/s

Record Length
Up to 500 Mpoints on all analog/digital channels

Internal Data Storage
250 GB removable SSD

Protocol Decode
Over 25 protocols available

Signal Generator
13 standard waveform types, plus arbitrary
100 MHz maximum frequency

Digital Voltmeter
4 digit

Trigger Frequency Counter
8 digit

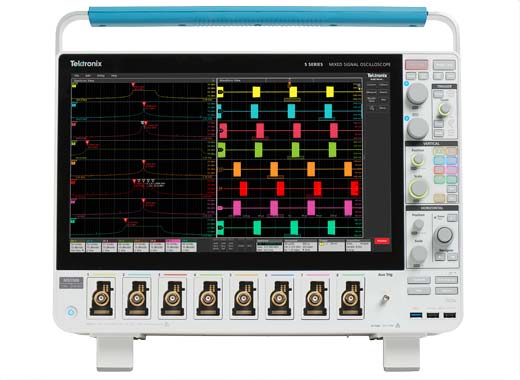

Display
15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution capacitive (multi-touch) touchscreen
