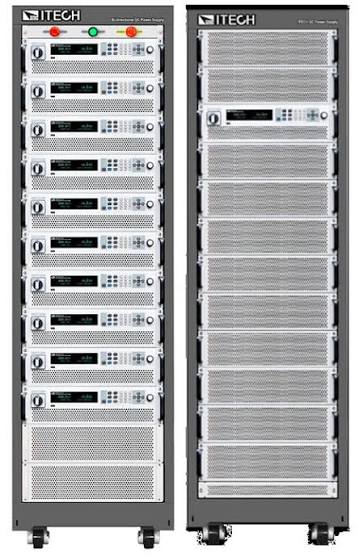

IT6000D 80V-2250V 5kW-198kW

  • Adopts third-generation SiC technology, integrates source and sink function in one unit
  • Stand-alone max. output power 144kW, expandable up to 2 MW by paralleling
  • Voltage output range: 0 to 2250V
  • Current output range:  0 to 2040A (single cabinet), 0 to 8000A (parallel connection between cabinets)
  • High power density up to 18kW in compact 3U rack space
  • Seamless current switch between souring and sinking
  • High regenerative efficiency up to 95%
  • Standard Built-in USB/CAN/LAN/digital IO interface, optional EtherCAT/GPIB/analog & RS232
  • Full protections: support OVP, ±OCP, ±OPP, OTP, power down protection, anti-islanding protection
  • Support CC/CV priority setting, different loop speed can be set
  • Partial pre-compliant with LV123, LV148, DIN40839, ISO-16750-2, SAEJ1113-11,LV124 and ISO21848 testing standards could be used as battery cycler and support various battery charging and discharging modes, such as CC/CV/CP
  • Built-in function generator, support arbitrary-waveform generating
  • Could be used as PV simulator, simulating the PV curves(with optional SAS1000 software)
  • Could be used as battery simulator(with optional BSS2000 Software)
  • Support multiple working modes, rising and falling time can be adjustable.
  • Support Datalog via USB disk and the shortest sample interval is 10us
  • Strong dynamic driving profile simulation function, up to 10,000,000 points
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

IT6000D High Power Programmable DC Power Supply

IT6000D, single channel output programmable DC power supply, is applicable in laboratories and automatic test system to provide high-power and stable DC supply. The feature of autoranging output enables a wide range of voltage and current combinations at full power, unprecedentedly flexible. IT6000D Series has wide range of applications and its single unit provides power range of 6kW to 144kW, current up to 8000A, as well as its voltage up to 2250V. Besides, IT6000D provides multi built-in communication interfaces to simplify and accelerate the testing development. The compact 3U design saves rack space. Multi units of the same model can be paralleled easily to have higher power and the maximum power can reach up to 2 MW.
