IT2800

  • 5 inch touch display supports both graphical and numerical view modes.

  • Combing the capabilities of six devices in one: Voltage Source, Current Source, 6½Digital Multimeter (DCV,DCI, ohms), Battery Simulator, electronic load and PulseGenerator

  • Integrating 4-quadrant sourcing & measuring capabilities, and supporting Two-wire& Four-wire measurement

  • Resolution up to 10fA/100nV, sampling rate up to 10us

  • Three graphic display modes: Graph View, Scope View and Record View



  • Multi-channel and simultaneous operation design, with parallel testing capability

  • Built-in resistance, power, and Math measurement features

  • Front USB port used for data storage, screen capture, or test configuration import

  • Built-in Digital IO/USB/LAN communication interface, optional GPIB

Model
Channels

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

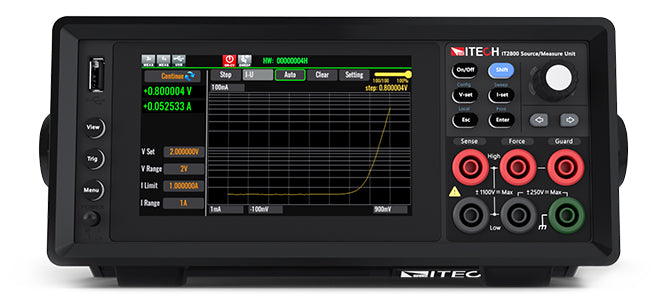

IT2800 Graphical Source Measure Unit

The IT2800 Series are compact and cost-effective bench-top Source Measure Units (SMUs) with the capability to source and measure both voltage and current. The IT2800 Series combine the capabilities of a voltage source, a current source, a voltage meter, a current meter and an ohmmeter (along with the capability to switch easily between these various functions).This ensures the independent measurement of IV characteristic in 4-quadrant. With a current range of 10fA to 10A and a voltage range of100nV to 1000V, the IT2800 series SMU has capabilities that allow it to perform more than just simple DC and pulsed measurements to prevent errors inmeasurement results due to the device's own heating. Excellent Front Panel GUI with 5 inch touch display supports various view modes, to help engineers significantly improve the efficiency of testing. The IT2800 Series is suitable for a variety of test applications: discrete semiconductor devices, passive devices, transient suppression devices, laser diodes, TVS, varistors, etc.
