IT-M7700 300VA-1500VA

  • Compact design (1/2 1U up to 600VA, 1/2 2U up to 1500VA), increasing space utilization
  • Large touch screen display, providing waveform and data display modes (available on M7723P) *4
  • AC, DC, AC+DC output modes
  • Built-in AC power meter
  • Built-in abundant waveform database, including 30 harmonic distortion waveforms*1
  • List mode, simulate civil AC working condition, realize instantaneous power interruption simulation function *1*2
  • Arbitrary waveform output function, user can customize waveforms*1
  • Up to 50th harmonic analysis and simulation function*1
  • Surge/Trap function*1
  • Front and rear edge Dimmer phase dimming function*1
  • Settable output waveform start/stop phase angle
  • Higher voltage available by two units in series connection*1*3
  • Three phase output available by three units Y-type external connections*1*3
  • Standard USB/LAN interface*1, optional accessories such as IT-E1205 (GPIB), IT-E1207 (RS232 & CAN), IT-E1208 (external analog & RS485), IT-E251 (multi-stage interconnecting running cable), etc.
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

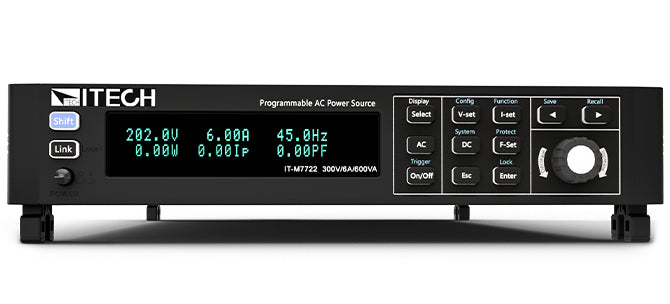

IT-M7700 High Performance Programmable AC Power Supply

ITECH newly-launched IT-M7700 High Performance Programmable AC Power Supply combines intelligence and flexibility, breaks through the huge defects of the traditional AC power source, reduces the size to only 1⁄2 1U, maximizes space utilization. Built-in power meter and arbitrary waveform generator make it convenient to simulate various arbitrary waveform outputs. IT-M7700 is designed with advanced technologies of programmable AC and DC power supplies, and can be widely used in multiple fields such as power energy products, home appliances, industrial electronics, IEC standards testing.
