IT-M3800 10V-1500V 1200W-12kW

  • Compact design, 1U@6kW, 2U@12kW
  • Voltage range: 10~1500V
  • Current range: 8A~720A
  • Power range: 12kW
  • Master/slave parallel connection with parallel echnology - keep good performance while power extension*1
  • Efficient power regeneration - reduce cost of electricity and cooling
  • Slope of voltage, current and power is settable
  • Battery discharge test
  • Short-circuit simulation
  • List function, max.200 steps
  • 8 operation modes under Source mode：CC/CV/CW/CR/CC+CV/CV+CR/CR+CC/CC+CV+CW+CR
  • Von function - On/Off control
  • Multiple protection: OVP / ±OCP / ±OPP / OTP /voltage transient drop protection/anti-islanding
  • Power grid automatic detection
  • Built-in USB/CAN/LAN/digital IO interfaces, Optional GPIB/Analog&RS232
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

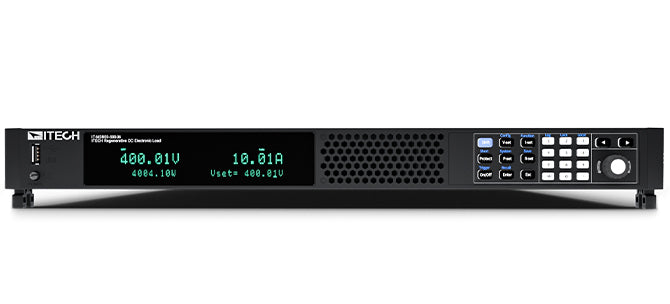

IT-M3800 Regenerative DC electronic load

IT-M3800 series regenerative DC electronic load can not only perform as a DC load, but also feed back power to the grid, which saves electricity and cooling costs for you. It can complete high-precision output and measurement, and supports multiple protection functions. It is well applied to the test of 5G communication and data center, industrial components test, aging test, PV and energy storage test, power optimizer and other fields.
