P Series High-Performance Thermal Camera
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

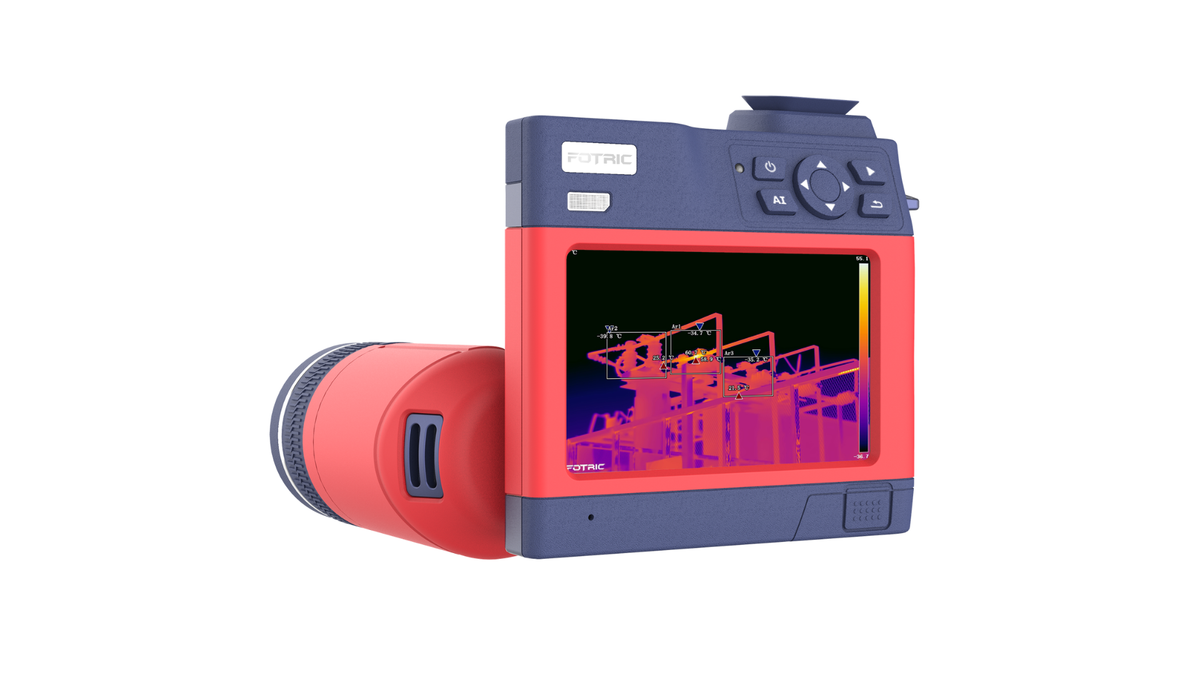

P Series High-Performance Thermal Camera
The FOTRIC P-series industrial thermal imager offers up to 1280 × 1024 IR resolution, exceptional image quality and precision for inspection work. With an optional dual-view lens, you won't need to carry or change lenses, saving time and space. The P-series cameras boast top-class performance with <30 mK thermal sensitivity, on-device analysis power and a laser area measurement function, and are compatible with advanced software such as NaviPdM and IRExplorer – revolutionising the way inspections use thermal cameras.
Key Features
- IR resolution up to 1280 × 1024 (Super Resolution up to 2560 × 2048)
- Thermal sensitivity <30 mK; image uniformity <1 ℃
- Accuracy ±1 ℃ or ±1 % (P9 / P7, 0–100 ℃ range)
- Temperature range up to -20 ~ 2000 ℃, extendable down to -40 ℃
- Interchangeable 46° / 25° / 12° / 7° lenses and dual-view 25°&12° / 25°&7° lenses with auto recognition
- TurboFocus® system: thermal-contrast, laser-assisted, continuous and touch AF, plus manual
- AI-powered NaviPdM® Venus inspection assistant with asset recognition and auto-diagnosis
- MagicThermal®, T-DEF®, IREdge® and T-TWB® imaging algorithms
- Laser-assisted distance, length and area measurement; HawkAI OCR
- 5-inch 1280 × 720 display with 100 % sRGB colour gamut; 13 MP + 5 MP digital cameras
- Wi-Fi, Bluetooth, USB-C 3.0, Micro HDMI; IP54 enclosure
Models
| Model | IR Resolution | Super Resolution | Thermal Sensitivity (NETD) | Standard Lens FOV / IFOV | Temperature Range | Accuracy | Digital Zoom |
|---|---|---|---|---|---|---|---|
| P5 | 384 × 288 | 768 × 576 | <40 mK @30 ℃ | 25° × 19° / 1.14 mrad | -20 ~ 1550 ℃ | ±2 ℃ or ±2 % | 1–12x |
| P7 | 640 × 480 | 1280 × 960 | <30 mK @30 ℃ | 25° × 19° / 0.68 mrad | -20 ~ 2000 ℃ | ±1 ℃ or ±1 % (0–100 ℃) | 1–16x |
| P9 | 1280 × 1024 | 2560 × 2048 | <30 mK @30 ℃ | 25° × 20° / 0.34 mrad | -20 ~ 2000 ℃ | ±1 ℃ or ±1 % (0–100 ℃) | 1–32x |
The attached datasheet is the official FOTRIC P Series catalog covering the P9, P7 and P5.
