ETS-Lindgren Standard Gain & Octave Horn Antennas
ETS-Lindgren 3160 Pyramidal Standard Gain Horns and 3161 Octave Horns are linearly polarized, medium gain horns with constant antenna factor and low VSWR. ANSI C63.4 recommends standard gain horns as a reference standard above 1 GHz.
Models

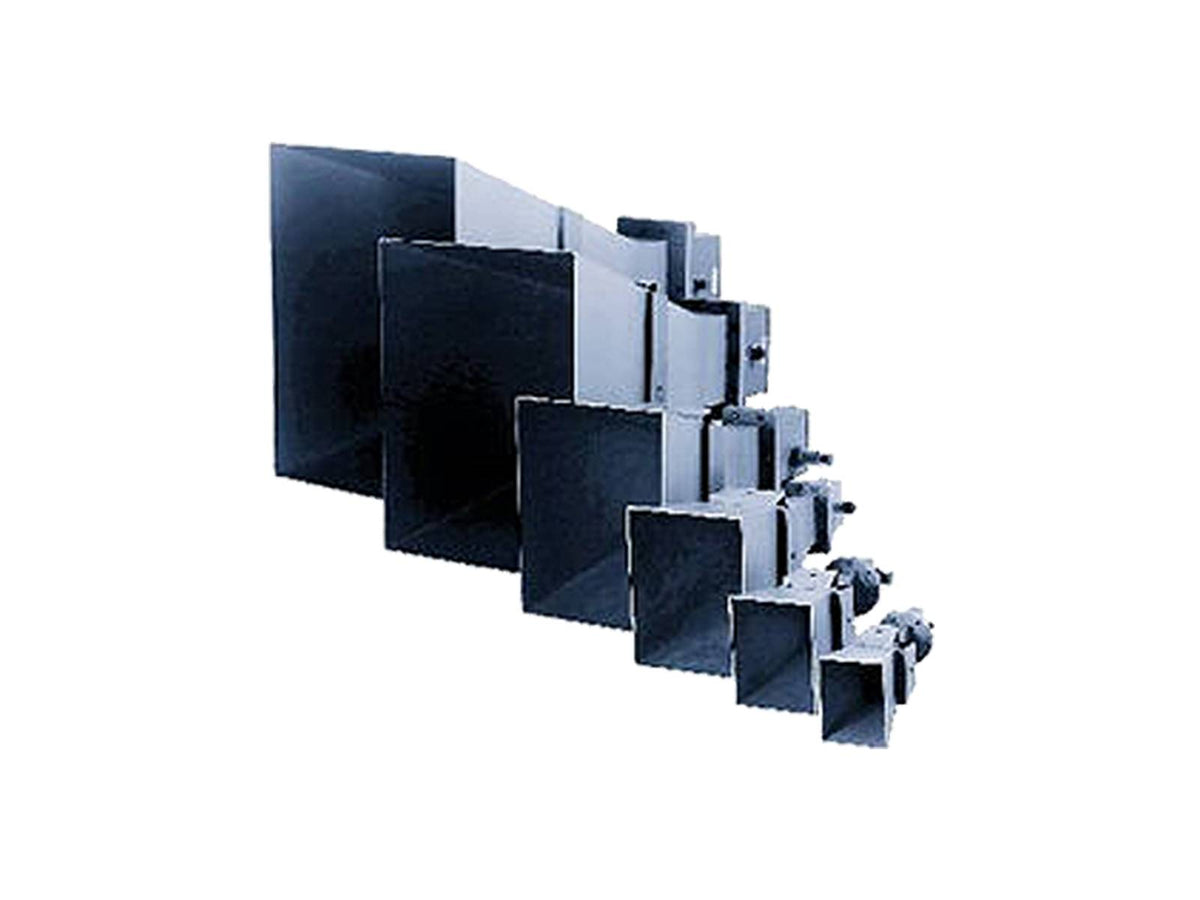

- 3160 Pyramidal Standard Gain Antenna Series (3160-01, 3160-02, 3160-03, 3160-04, 3160-05, 3160-06, 3160-07, 3160-08, 3160-09, 3160-10) — The Model 3160 Standard Gain Horns cover a multi-octave bandwidth of 1 GHz to 40 GHz. All models in the series are linearly polarized, have medium gain, optimum half power beamwidth, and low VSWR. Frequency range: 0.96 GHz to 40 GHz (10 models).
- 3160-09PA Rectangular Waveguide Horn Antenna with Pre-Amplifier — The Model 3160-09PA Rectangular Waveguide Horn Antenna with Pre-Amplifier (114514) is a special version of our popular 3160-10PA Rectangular Waveguide Horn Antenna fitted with a pre-amplifier package and calibrated as a single unit. Frequency range: 18 GHz to 26.5 GHz.

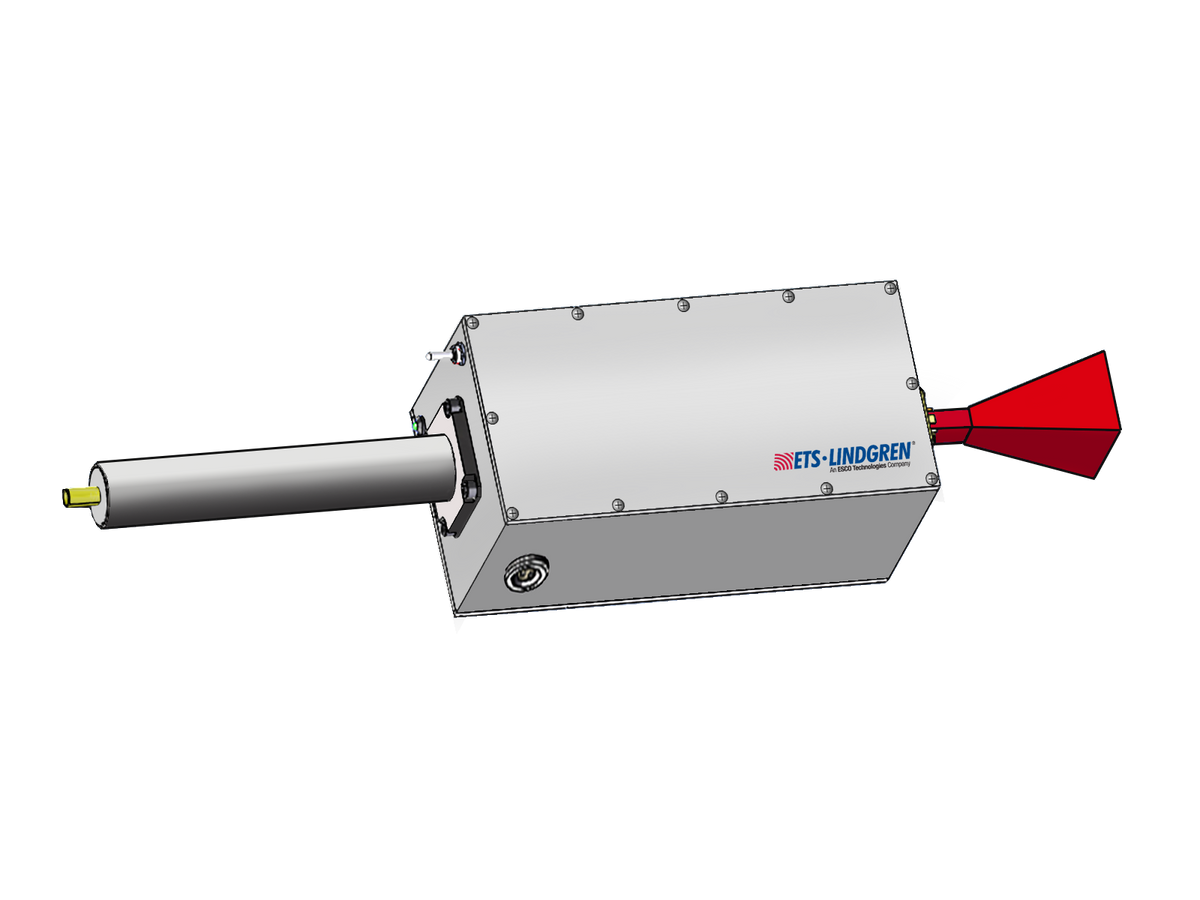

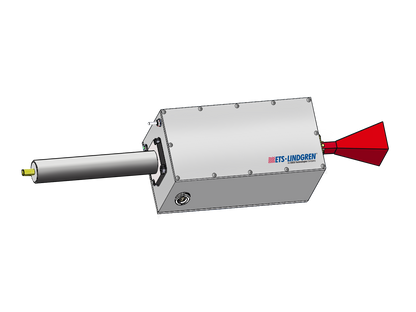

- 3160-10PA Rectangular Waveguide Horn Antenna with Pre-Amplifier — The Model 3160-10PA Rectangular Waveguide Horn Antenna with Pre-Amplifier (120722) is a special version of our popular 3160-09PA Rectangular Waveguide Horn Antenna fitted with a pre-amplifier package and calibrated as a single unit. Frequency range: 26.5 GHz to 40 GHz.
- 3161 Octave Horn Antenna Series (3161-01, 3161-02, 3161-03) — The Model 3161 Octave Horn Antenna Series are lineraly polarized, have medium gain, optimum half power beam width, low VSWR, and cover a bandwidth of 1 GHz to 8 GHz. Frequency range: 1 GHz to 8 GHz (3 models).
Key Features
- 3160: Constant Antenna Factor Over Frequency; Complete with Feed, Waveguide, and Mount; Increased Power Dissipation; Optimal Beam Width; Low VSWR
- 3160-09PA: Maintains Single Lobe Radiation; Provides Low AF That is Less Than -20 dB (1/m) Typical for the Entire Frequency Range
- 3160-10PA: Maintains Single Lobe Radiation; Provides Low AF That is Less Than -20 dB (1/m) Typical for the Entire Frequency Range
- 3161: Constant Antenna Factor Over Frequency; Complete with Feed, Waveguide, Mount; Increased Power Dissipation; Optimal Beam Width; Low VSWR
Frequency range: 960MHz-40GHz
