ETS-Lindgren Rod / Monopole Antennas
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
ETS-Lindgren Rod / Monopole Antennas
ETS-Lindgren rod / monopole antennas provide efficient electric field measurement at low frequencies, individually calibrated per ECSM and IEEE-291 methods, for MIL-STD 461 and CISPR 16 applications.
Models

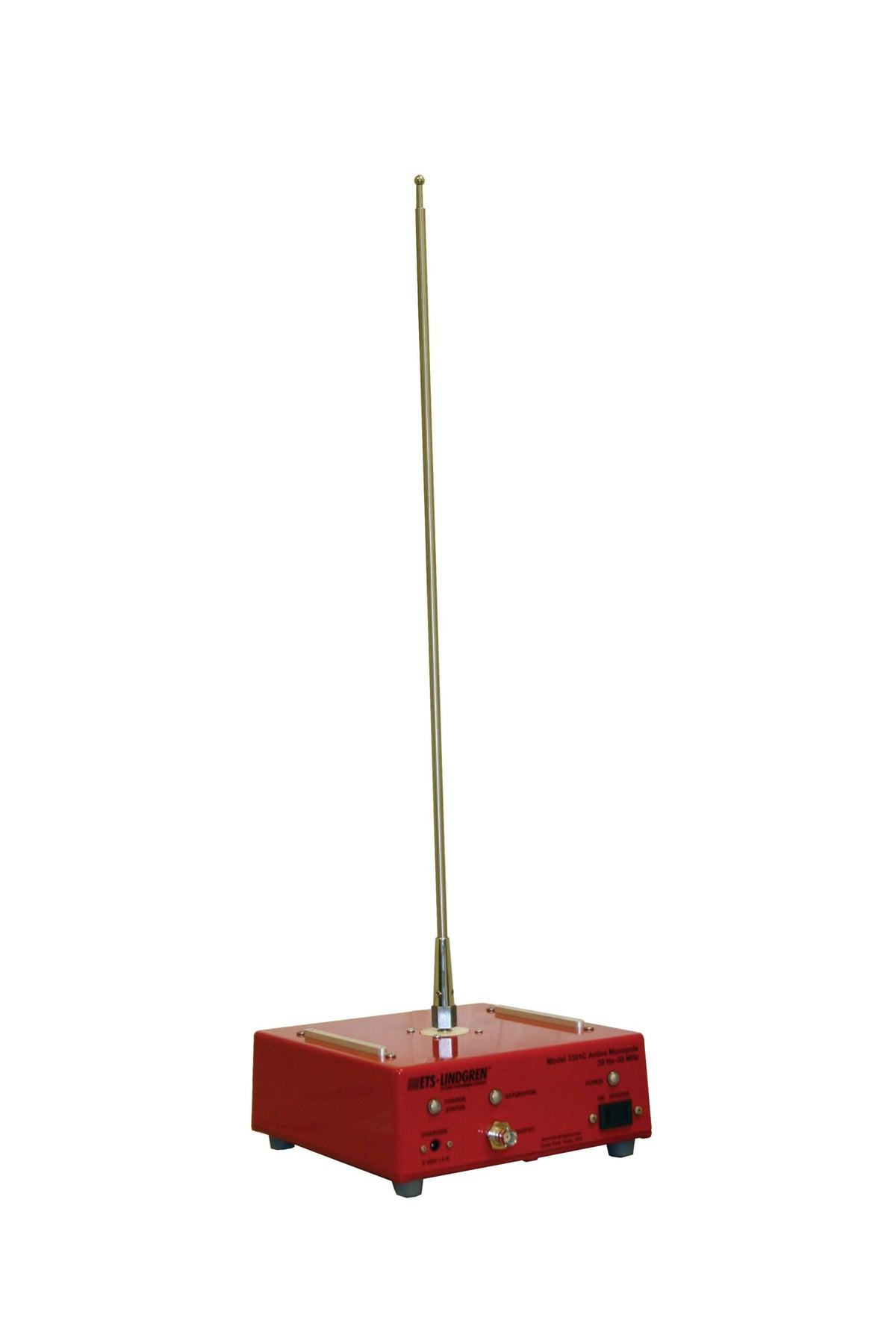

- 3301C Active Monopole — The Model 3301C Active Monopole Antenna is designed to provide reception of an electric field throughout its frequency range, in a single band, without tuning or band switching. Frequency range: 30 Hz to 50 MHz.

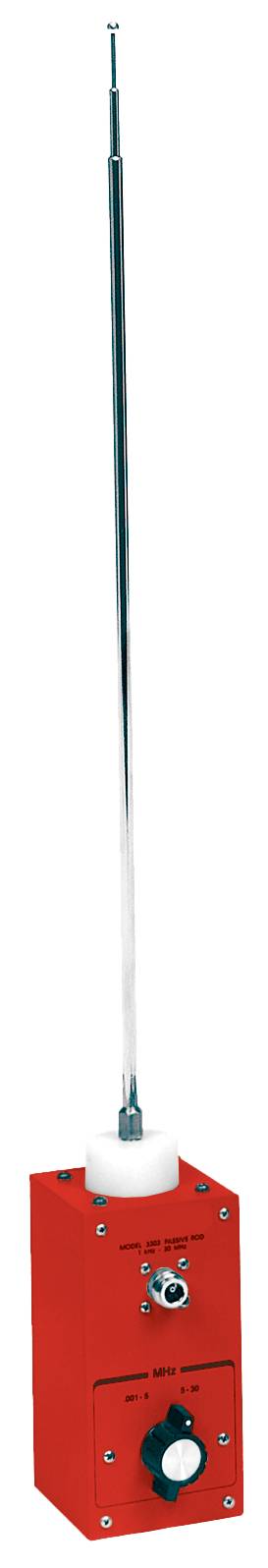

- 3303 Monopole Antennas — The 3303 Passive Broadband Electric Field Monopole is a transmitting antenna with a frequency range of 1 kHz to 30 MHz. All ETS‑Lindgren rod antennas are designed to provide a high level of efficiency in electric field measurements and are individually calibrated in accordance with the the equivalent capacitive substitution method (ESCM) and IEEE-291 methods using NIST traceable equipment. Frequency range: 1 kHz to 30 MHz.
Key Features
- 3301C: Two Year Warranty; Individually Calibrated; MIL-STD 461G Compliant; 30 Hours of Continuous Operation in a Single Charge; Compliant with CISPR-16-1-6:2017 and ANSI 63.5:2017 with 3301 Cal-B option
- 3303: Individually Calibrated; Switchable Two-Band Transformer; Two Year Warranty
Frequency range: 30Hz-50MHz
